Home > Products > China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer

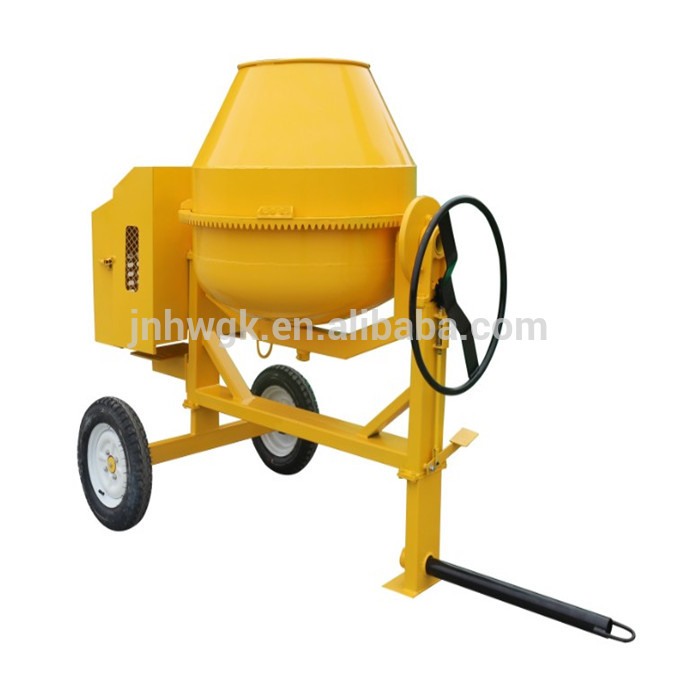

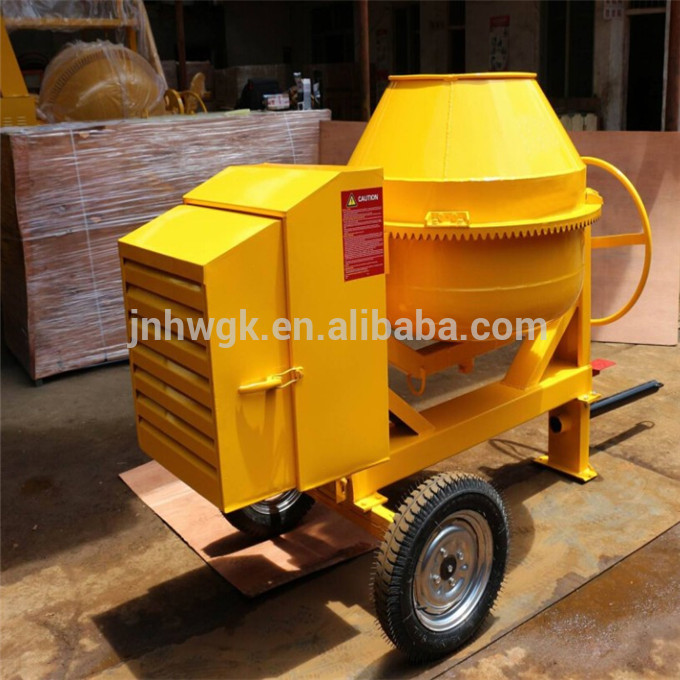

China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer
Click on the image to view the original image
Product： views：5China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
500L
Reclaiming capacity:
500L
Mixing Power:
10hp
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
CM500-4D
Motor Power:
6HP
Speed of Mixing Drum:
25r/min
Water Supply Mode:
Water Pump Motor
Working Cycle Period:
60s
Discharge Way:
Automatic
Outline Dimension:
2160*1200*1750mm
Yield:
6-8 cubic perhour
Bags of cement per batch:
1.5 bag cement
Name:
Diesel Concrete Mixer
Drumthickeness:
3-4mm
Mixingdrumsize:
950*900mm
Tyrenumber and size:
24.00-12
Total weight:
325KG
Oversize:
2160*1200*1750mm
Packing size:
2060*1060*1250mm
Color:
Customer's Requirement
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
10000 Set/Sets per Month China Factory 350L 400L 450L 500L 600L Portable diesel concrete
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao/dalian /shanghai
Lead Time:
withinoneweek
Video Description
Product Description

China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer

ModelCapacityNWRPM of DrumProductivityEngine Package/mm(4sets)QTY(set)
LKGm³/HRPMDieselGasolineElectric MotorVoltage/Hz40"HP20"GPDimension(electric)(others length+60mm)
HW260260250186-1018004HP4.5HP1.5KWas your choice2040*810*195552242465*1090*1335
HW300300270208-1218004HP4.5HP1.5KW 2040*810*211552242465*1090*1425
HW3503502902010-1418006HP6.5HP2.2KW 2284*910*213152222600*1090*1442
HW4004003302012-1618006HP6.5HP2.2KW 2284*910*228544/50222600*1090*1527
HW4504503402014-1818006HP6.5HP2.2KW 2284*910*2445   2284*910*1263(2sets)44/50122600*1090*1622
HW5005003501716-2018009HP9HP3KW 2300**1100*2445 2300*1100*1263(2sets)36102700*1090*1635
HW6006003701720-2418009HP9HP3KW 2300**1100*2613 2300*1100*1356(2sets)20102700*1090*1750
HW7007003901724-2818009HP9HP3KW 2228*1680*1448(2sets)1262800-1260*1783
HW8008004001728-3218009HP9HP3KW 2228*1680*1634(2sets)1262800*1260*1925

HW260260260186-1018004HP5.5HP1.5KWas your choice1810*800*110036/3818 1940*2070*1350
HW300290290188-1218004HP5.5HP1.5KW 1950*9000*122036/3818 1940*2070*1400
HW3503503252010-1418006HP6.5HP2.2KW 1950*900*122034/3617 2030*2120*1395
HW4004003402012-1618006HP6.5HP2.2KW 1950*900*122034/3617 2030*2120*1575
HW4504503502014-1818006HP6.5HP2.2KW 1950*900*123534/3617 2030*2120*1580
HW5005003601716-2018009HP9HP3KW 2030*1000*124530/3215 2130*2170*1580
HW6006003701720-2418009HP9HP3KW 2030*1000*134030/3215 2130*2170*1720
HW7007004001724-2818009HP9HP3KW  28142245*2220*1860
HW8008004101728-3218009HP9HP3KW  28142245*2220*1860

HC260260260186-1018004HP4.5HP1.5KWas your choice2040*810*195552242465*1090*1335
HC300300280208-1218004HP4.5HP1.5KW 2040*810*211552242465*1090*1425
HC3503503002010-1418006HP6.5HP2.2KW 2284*910*213152222600*1090*1442
HC4004003402012-1618006HP6.5HP2.2KW 2284*910*228544/50222600*1090*1527
HC4504503502014-1818006HP6.5HP2.2KW 2284*910*2445 2284*910*1263(2sets)44/50122600*1090*1622
HC5005003601716-2018009HP9HP3KW 2300*1100*2445 2300*1100*1263(2sets)36102700*1090*1635
HC6006003801720-2418009HP9HP3KW 2300*1100*2631 2300*1100*1356(2sets)20102700*1090*1750
HC7007004901724-2818009HP9HP3KW 2228*1680*1448(2sets)1262800*1260*1783
HC8008005001728-3218009HP9HP3KW 2228*1680*16341262800*1260*1925

China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer

Packaging & Shipping

China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer

China Factory 350L 400L 450L 500L 600L Portable diesel concrete mixer
