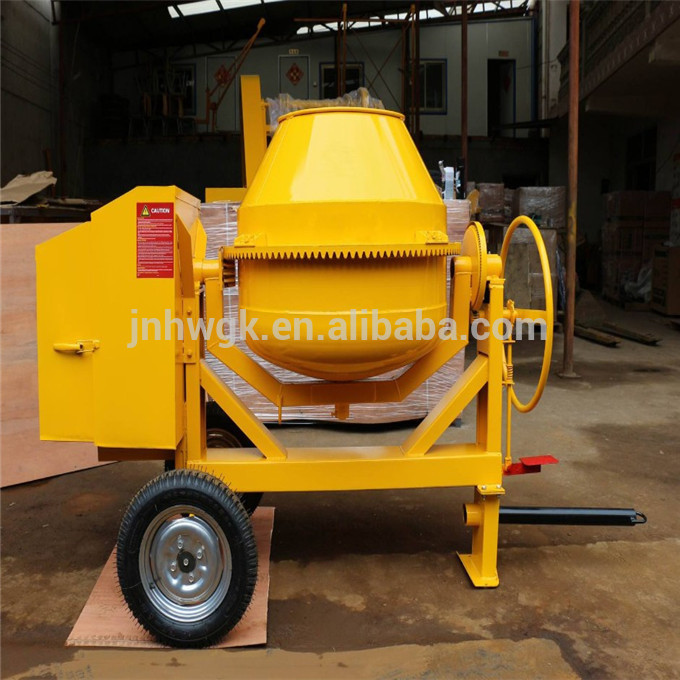

Mobile Portable Electric Diesel Concrete Mixer Cement Mixer 120L 140L 160L 180L 200L 350L 400L 500L

Click on the image to view the original image

Product：	views：5Mobile Portable Electric Diesel Concrete Mixer Cement Mixer 120L 140L 160L 180L 200L 350L 400L 500L
Branch：	HW
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Charging Capacity:: 500L

Reclaiming capacity:: 500L

Mixing Power:: 10hp

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: CM500-4D

Motor Power:: 6HP

Speed of Mixing Drum:: 25r/min

Water Supply Mode:: Water Pump Motor

Working Cycle Period:: 60s

Discharge Way:: Automatic

Outline Dimension:: 2160*1200*1750mm

Yield:: 6-8 cubic perhour

Bags of cement per batch:: 1.5 bag cement

Name:: Mobile Portable Electric Diesel Concrete Mixer

Drumthickeness:: 3-4mm

Mixingdrumsize:: 950*900mm

Tyrenumber and size:: 24.00-12

Total weight:: 325KG

Oversize:: 2160*1200*1750mm

Packing size:: 2060*1060*1250mm

Color:: Customer's Requirement

After-sales Service Provided:: Overseas service center available

Supply Ability

Supply Ability:: 10000 Set/Sets per Month Mobile Portable Electric Diesel Concrete Mixer Cement Mixer 120L

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao/dalian /shanghai

Lead Time:: withinoneweek

Product Description

Mobile Portable Electric Diesel Concrete Mixer Cement Mixer 120L 140L 160L 180L 200L 350L 400L 500L

Model	Capacity	NW	RPM of Drum	Productivity	Engine					Package/mm(4sets)	QTY(set)
Model	L	KG	RPM of Drum	m³/H	RPM	Diesel	Gasoline	Electric Motor	Voltage/Hz	Package/mm(4sets)	40"HP	20"GP	Dimension(electric)(others length+60mm)
HW260	260	250	18	6-10	1800	4HP	4.5HP	1.5KW	as your choice	20408101955	52	24	246510901335
HW300	300	270	20	8-12	1800	4HP	4.5HP	1.5KW		20408102115	52	24	246510901425
HW350	350	290	20	10-14	1800	6HP	6.5HP	2.2KW		22849102131	52	22	260010901442
HW400	400	330	20	12-16	1800	6HP	6.5HP	2.2KW		22849102285	44/50	22	260010901527
HW450	450	340	20	14-18	1800	6HP	6.5HP	2.2KW		22849102445 22849101263(2sets)	44/50	12	260010901622
HW500	500	350	17	16-20	1800	9HP	9HP	3KW		2300*11002445 230011001263(2sets)	36	10	270010901635
HW600	600	370	17	20-24	1800	9HP	9HP	3KW		2300*11002613 230011001356(2sets)	20	10	270010901750
HW700	700	390	17	24-28	1800	9HP	9HP	3KW		222816801448(2sets)	12	6	2800-1260*1783
HW800	800	400	17	28-32	1800	9HP	9HP	3KW		222816801634(2sets)	12	6	280012601925

HW260	260	260	18	6-10	1800	4HP	5.5HP	1.5KW	as your choice	18108001100	36/38	18	194020701350
HW300	290	290	18	8-12	1800	4HP	5.5HP	1.5KW		195090001220	36/38	18	194020701400
HW350	350	325	20	10-14	1800	6HP	6.5HP	2.2KW		19509001220	34/36	17	203021201395
HW400	400	340	20	12-16	1800	6HP	6.5HP	2.2KW		19509001220	34/36	17	203021201575
HW450	450	350	20	14-18	1800	6HP	6.5HP	2.2KW		19509001235	34/36	17	203021201580
HW500	500	360	17	16-20	1800	9HP	9HP	3KW		203010001245	30/32	15	213021701580
HW600	600	370	17	20-24	1800	9HP	9HP	3KW		203010001340	30/32	15	213021701720
HW700	700	400	17	24-28	1800	9HP	9HP	3KW			28	14	224522201860
HW800	800	410	17	28-32	1800	9HP	9HP	3KW			28	14	224522201860

HC260	260	260	18	6-10	1800	4HP	4.5HP	1.5KW	as your choice	20408101955	52	24	246510901335
HC300	300	280	20	8-12	1800	4HP	4.5HP	1.5KW		20408102115	52	24	246510901425
HC350	350	300	20	10-14	1800	6HP	6.5HP	2.2KW		22849102131	52	22	260010901442
HC400	400	340	20	12-16	1800	6HP	6.5HP	2.2KW		22849102285	44/50	22	260010901527
HC450	450	350	20	14-18	1800	6HP	6.5HP	2.2KW		22849102445 22849101263(2sets)	44/50	12	260010901622
HC500	500	360	17	16-20	1800	9HP	9HP	3KW		230011002445 230011001263(2sets)	36	10	270010901635
HC600	600	380	17	20-24	1800	9HP	9HP	3KW		230011002631 230011001356(2sets)	20	10	270010901750
HC700	700	490	17	24-28	1800	9HP	9HP	3KW		222816801448(2sets)	12	6	280012601783
HC800	800	500	17	28-32	1800	9HP	9HP	3KW		222816801634	12	6	280012601925

Mobile Portable Electric Diesel Concrete Mixer Cement Mixer 120L 140L 160L 180L 200L 350L 400L 500L
