Home > Products > ZDY series ZDY-660 drilling rig with explosion-proof motor

ZDY series ZDY-660 drilling rig with explosion-proof motor

Click on the image to view the original image

Product：	views：5ZDY series ZDY-660 drilling rig with explosion-proof motor
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Electric

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Ore

Voltage:: 380/660V

Dimension(L*W*H):: 2000*800*1600

Weight:: 1200-2200kg

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Rated Voltage:: 380/660 or 660/1140

Drill Depth (m):: 200

Boring Inclined angle:: ±90

Feeding Stroke(mm):: 650

Name:: ZDY-1200S drilling rig

Boring Diameter(mm):: 65~108

Rated Torque(N.m):: 1200

Max. Feeding Speed(mm/min):: 5000

Max. Pulling Out Speed(mm/min):: 4000

Supply Ability

Supply Ability:: 100 Set/Sets per Month ZDY-1200S drilling machine

Packaging & Delivery

Packaging Details: standard package or as your requirement

Port: Qingdao

Product Description

Product Description

Specifications:

Brief Introduction
1.Drilling ability
2.fast speed
3.good quality

1. The drilling machine is mainly used in the coal mine drilling hole grouting fire extinguishing gas suction (row) of coal seam injection hole outburst prevention pressure relief hole hole hole and other engineering geological exploration

2. In the rig is equipped with a high pressure water generator and selects the high pressure sealing pipe for low permeability coal seam can be slotted, so as to improve the efficiency of gas drainage and shorten the extraction time.

Parameter

Item	ZDY-660	ZDY-1200S	ZDY-2000S
Drill Depth (m)	150/100	200	300/100
Boring Inclined angle(º)	±90	±90	±90
Boring Diameter(mm)	Φ56 ~Φ108	Φ65~Φ108	Φ94 ~Φ200
Idle Transportation Speed(r/min)	Low speed gear (10~150) high speed gear (10~300)	80~280	10~300
Rated Torque(N.m)	660	1200	2000
Rated Rotating Speed(r/min)	140/270	140/270	76
Feeding Stroke(mm)	650	650	600
Feeding Force(kN)	29	36	105
Pulling Out Force(kN)	42	52	70
Max. Feeding Speed(mm/min)	5000	5000	3500
Max. Pulling Out Speed(mm/min)	4000	4000	2200
System Rated Pressure(Mpa)	16	18	22
Oil Tank Capacity(L)	85	198	180
Rated Power(kW)	15	22	37
Rated Voltage	380/660 or 660/1140
Drill Diameter(mm)	Φ42/Φ50	Φ50/Φ63.5	Φ63.5/Φ73
Geological Drill Bit Diameter	Φ56 ~Φ75	Φ65~Φ108	Φ94~Φ200
Main Frame External Size(mm)	1800×620×1300	1800×750×1360	2180×800×1516
Pump Station External Size(mm)	1400×500×1000	1450×790×1100	1700×850×1100
Drill Rig Weight(kg)	900	1260	2000

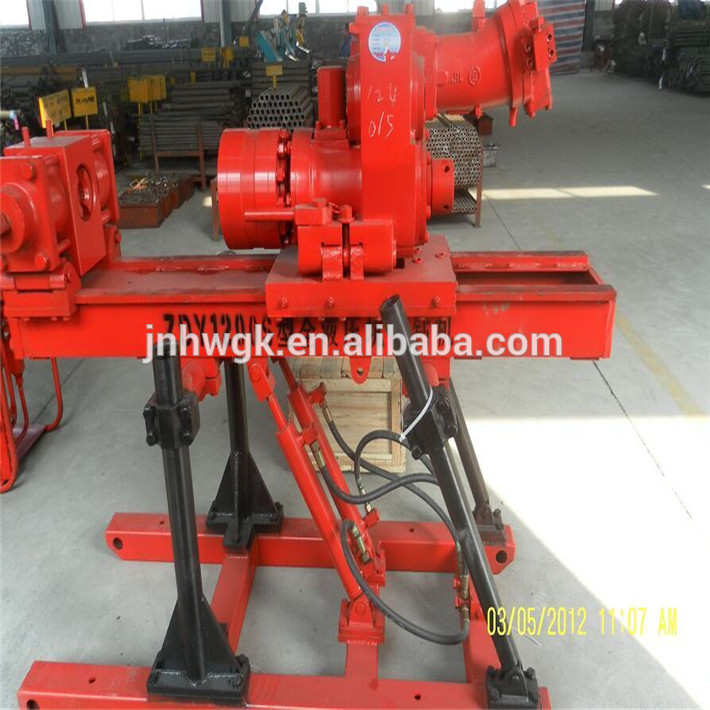

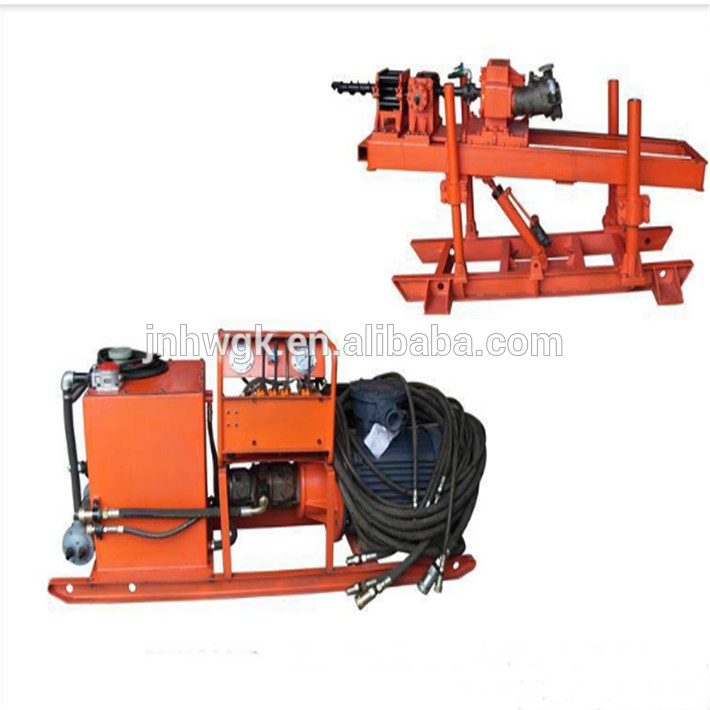

Product photos

Tunnel Drilling Rig
