Portable Truck Mounted Borehole Water Well Drilling Rig for Sale
XY-1Rig Technical Specifications | ||||||
Main technical parameters |
| Pump |
| |||
Drilling depth(m) | 100m | Type | Gear pumps | |||
Hole diameter | 110mm | Model | YBC-12/80 | |||
The final hole diameter | 75mm | Rated pressure
| 8Mpa | |||
Rod diameter | 42-50mm | Flow
| 8ml/r | |||
Borehole inclination | 90°— 75° | Rated speed
| 1500r/min | |||
Rig Dimensions (L×B×H) | 1640mm×1030mm×1440mm |
|
| |||
Rig weight(Except the power machine ) | 500kg | Motor and diesel |
| |||
Gyrator |
| type | ZSⅡ00 | |||
vertical speed | 142,285,570r/min | Rated Power | 11KW | |||
vertical stroke | 450mm | Rated speed | 2200r/min | |||
vertical load up the maximum speed
| 3m/min | Electric motor |
| |||
vertical load down the maximum speed | 4m/min | type | Y160M-4 | |||
The maximum vertical force feed | 15KN | Rated Power | 11KW | |||
The maximum vertical lifting force | 25KN | Rated speed | 1460r/min | |||
|
| Pump |
| |||
Winches |
| Type
| Horizontal single-cylinder double-acting
| |||
The maximum lifting capacity ( a single rope speed )
| 10KN | The maximum displacement
| 99(77)L/min | |||
Reel speed
| 55,110,220r/min | The maximum allowable pressure
| 1.2Mpa | |||
Roll peripheral speed | 0.42,0..84,1.68m/s | Working Pressure | 0.7Mpa | |||
Reel diameter | 145mm | The number of strokes | 120(96)min | |||
Rope diameter | 9.3mm | Liner diameter | 80mm | |||
Rope capacity | 27m | Piston stroke | 100mm | |||
Brake diameter | 230mm |
| ||||
Gate width | 50mm |
| ||||

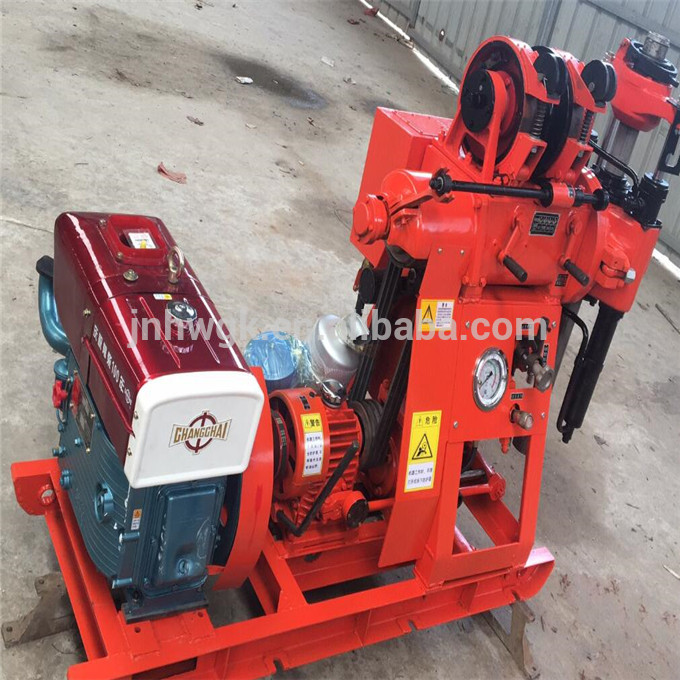

Portable Truck Mounted Borehole Water Well Drilling Rig for Sale

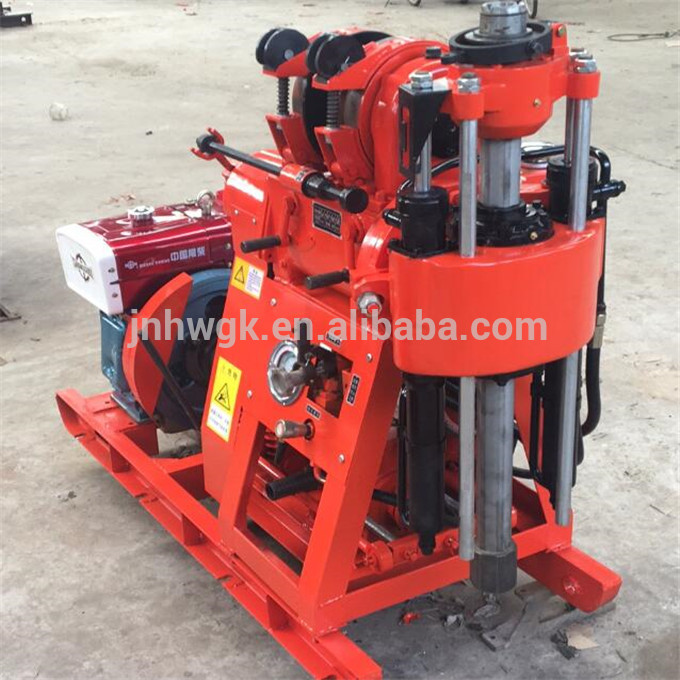

Portable Truck Mounted Borehole Water Well Drilling Rig for Sale
Portable Truck Mounted Borehole Water Well Drilling Rig for Sale
Portable Truck Mounted Borehole Water Well Drilling Rig for Sale
