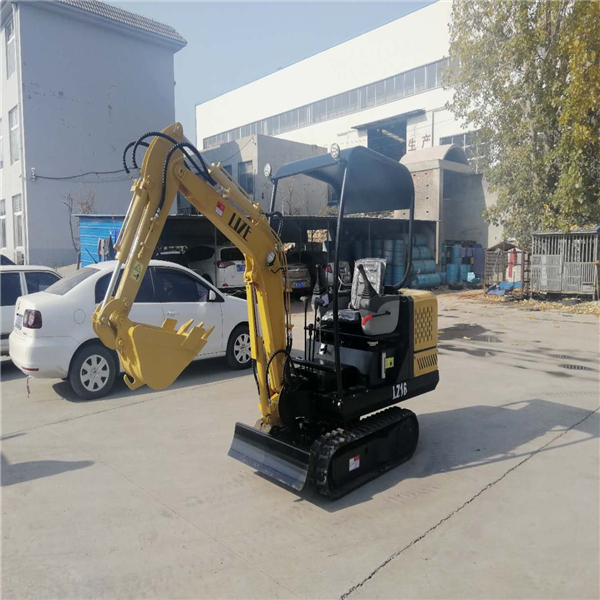

Click on the image to view the original image
1. Changchai 3-cylinder engine, could option Yanmar,Perkin-s
2. Pilot controls imported from Korea
3.High precision integrated instrument panel
4.Adopt load sensitive multi-way valve of Rexroth
5.Reinforced rubber track
Engine | ||
Model | Changchai ZN390Q | |
Optional model | Yanmar,Perkin-s | |
Rated power (kw) | 20 | |
Rated speed (rpm) | 2200 | |
Overall Dimension | ||
Total Length (mm) | 4082 | |
Total Width(mm) | 1200 | |
Total Height (mm) | 2128 | |
Ground Clearance (mm) | 458 | |
Total Weight (Kg) | 2200 | |
Ground Pressure (Kpa) | 38 | |
Track | ||
Track Gauge (mm) | 950 | |
Track Width (mm) | 230 | |
Track Length (on ground)(mm) | 1250 | |
Performance |
| |
Max.Digging Height (mm) | 3714 | |
Max.Digging Radius (mm) | 4023 | |
Max.Digging Depth (mm) | 2150 | |
Max.Dumping Height (mm) | 2488 | |
Slewing Angle | 360° | |
Grade ability | 25° | |
Travel Speed (km/h) | 2.2 | |
Bucket Capacity (m³) | 0.08 | |
Bucket Width (mm) | 490 | |
Hydraulic System | ||
Main Pump | Triple Pump | |
Main Pressure(Mpa) | 16 | |
Max.RPM of the pump(r/min) | 3000 | |
Pump Displacement (ml/r) | 25 | |
