Home > Products > XY-1 Portable Water Well Drilling Rig 150m Core Drilling Hard Rock Drilling Machine

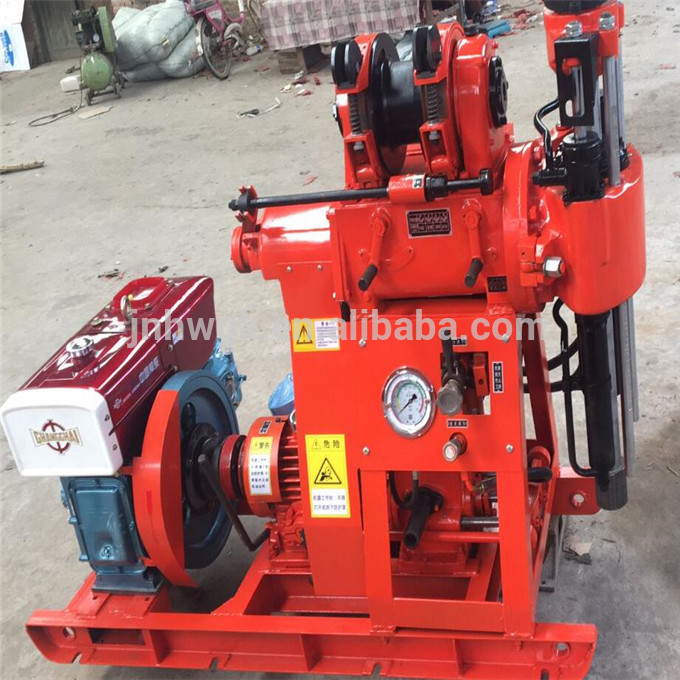

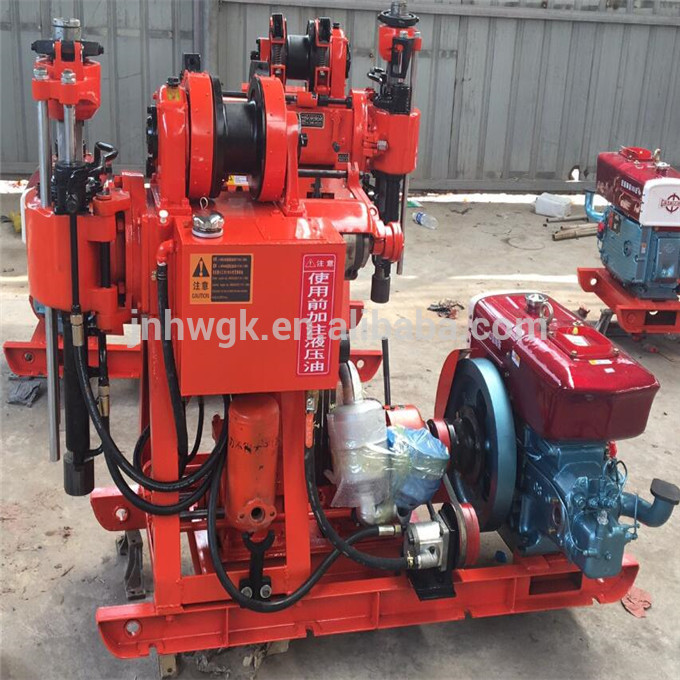

XY-1 Portable Water Well Drilling Rig 150m Core Drilling Hard Rock Drilling Machine

Click on the image to view the original image

Product：	views：3XY-1 Portable Water Well Drilling Rig 150m Core Drilling Hard Rock Drilling Machine
Branch：	HW
Type：	Core Drilling Rig
Size：	450X230X150 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: 220V/380V

Dimension(L*W*H):: 2.75*0.95*1.6m

Weight:: 800kg

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Hole diameter:: 115-165mm

Final hole dia.:: 75mm

Name:: Cheap Small Well Drill Rig For Sale

Application:: Soil Sampling

Color:: Red Yellow

Engine:: Diesel Power Chanchai

Spindle speed(3 levels):: 142/285/570

Spindle stroke:: 450

Maximum allowable pressure:: 1.5

Packaging & Delivery

Selling Units:: Single item

Single package size:: 450X230X150 cm

Single gross weight:: 800.0 kg

Package Type:: Wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

XY-1 Portable Water Well Drilling Rig 150m Core Drilling Hard Rock Drilling Machine

XY-1Rig Technical Specifications
Main technical parameters		Pump
Drilling depth(m)	100m	Type	Gear pumps
Hole diameter	110mm	Model	YBC-12/80
The final hole diameter	75mm	Rated pressure	8Mpa
Rod diameter	42-50mm	Flow	8ml/r
Borehole inclination	90°— 75°	Rated speed	1500r/min
Rig Dimensions (L×B×H)	1640mm×1030mm×1440mm
Rig weight(Except the power machine )	500kg	Motor and diesel
Gyrator		type	ZSⅡ00
vertical speed	142,285,570r/min	Rated Power	11KW
vertical stroke	450mm	Rated speed	2200r/min
vertical load up the maximum speed	3m/min	Electric motor
vertical load down the maximum speed	4m/min	type	Y160M-4
The maximum vertical force feed	15KN	Rated Power	11KW
The maximum vertical lifting force	25KN	Rated speed	1460r/min
		Pump
Winches		Type	Horizontal single-cylinder double-acting
The maximum lifting capacity ( a single rope speed )	10KN	The maximum displacement	99(77)L/min
Reel speed	55,110,220r/min	The maximum allowable pressure	1.2Mpa
Roll peripheral speed	0.42,0..84,1.68m/s	Working Pressure	0.7Mpa
Reel diameter	145mm	The number of strokes	120(96)min
Rope diameter	9.3mm	Liner diameter	80mm
Rope capacity	27m	Piston stroke	100mm
Brake diameter	230mm
Gate width	50mm
