China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale

Click on the image to view the original image

Product：	views：3China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: XY-1

Usage:: Water Well

Voltage:: 220V/380V

Power(W):: 15KW

Dimension(L*W*H):: 2.75*0.95*1.6m

Weight:: 800kg

Certification:: ISO

Hole diameter:: 115-165mm

Final hole dia.:: 75mm

Name:: Mining Core Drilling Machine

Application:: Soil Sampling

Color:: Red Yellow

Engine:: Diesel Power Chanchai

Spindle speed(3 levels):: 142/285/570

Spindle stroke:: 450

Maximum allowable pressure:: 1.5

Drilling depth:: 100m

After-sales Service Provided:: Overseas service center available

Warranty:: oneyear

Supply Ability

Supply Ability:: 1000 Set/Sets per Month China Wholesale Custom Widely Used Portable Small Deep Water Wel

Packaging & Delivery

Packaging Details: Wooden case

Port: qingdao/dalian/shanghai/guangzhou

Lead Time:: Have Stock

Product Description

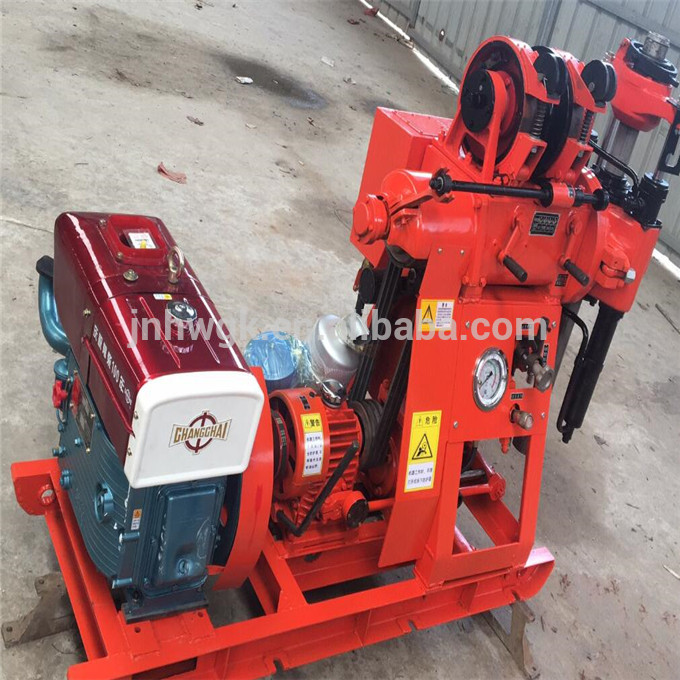

China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale

XY-1Rig Technical Specifications
Main technical parameters		Pump
Drilling depth(m)	100m	Type	Gear pumps
Hole diameter	110mm	Model	YBC-12/80
The final hole diameter	75mm	Rated pressure	8Mpa
Rod diameter	42-50mm	Flow	8ml/r
Borehole inclination	90°— 75°	Rated speed	1500r/min
Rig Dimensions (L×B×H)	1640mm×1030mm×1440mm
Rig weight(Except the power machine )	500kg	Motor and diesel
Gyrator		type	ZSⅡ00
vertical speed	142,285,570r/min	Rated Power	11KW
vertical stroke	450mm	Rated speed	2200r/min
vertical load up the maximum speed	3m/min	Electric motor
vertical load down the maximum speed	4m/min	type	Y160M-4
The maximum vertical force feed	15KN	Rated Power	11KW
The maximum vertical lifting force	25KN	Rated speed	1460r/min
		Pump
Winches		Type	Horizontal single-cylinder double-acting
The maximum lifting capacity ( a single rope speed )	10KN	The maximum displacement	99(77)L/min
Reel speed	55,110,220r/min	The maximum allowable pressure	1.2Mpa
Roll peripheral speed	0.42,0..84,1.68m/s	Working Pressure	0.7Mpa
Reel diameter	145mm	The number of strokes	120(96)min
Rope diameter	9.3mm	Liner diameter	80mm
Rope capacity	27m	Piston stroke	100mm
Brake diameter	230mm
Gate width	50mm

China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale

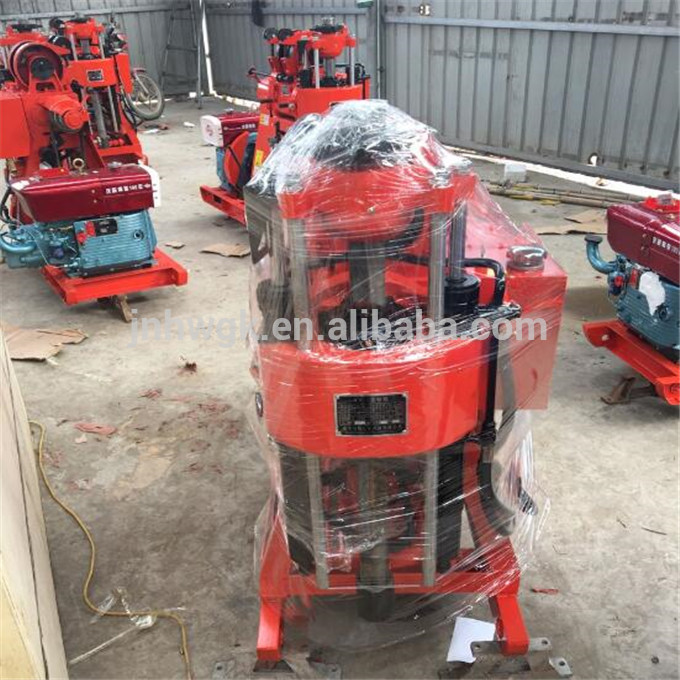

Packaging & Shipping

China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale

Our Services

China Wholesale Custom Widely Used Portable Small Deep Water Well Drilling Rig For Sale
