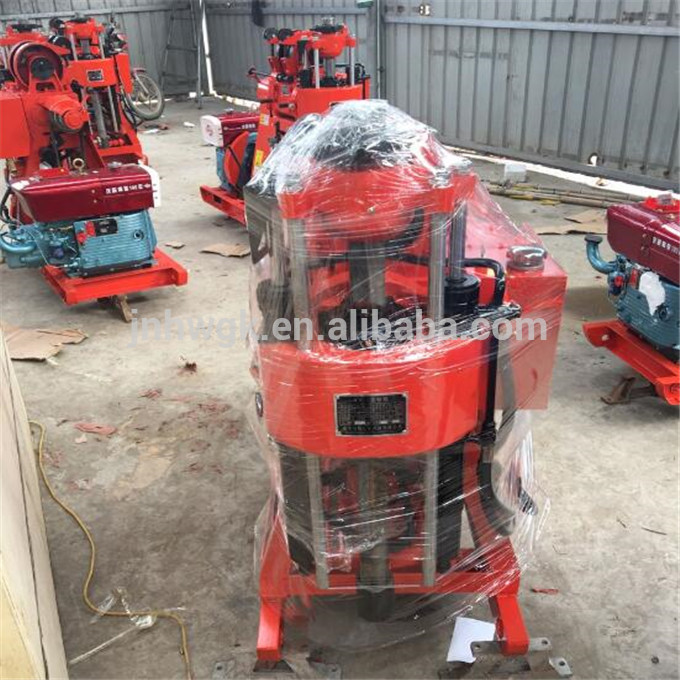

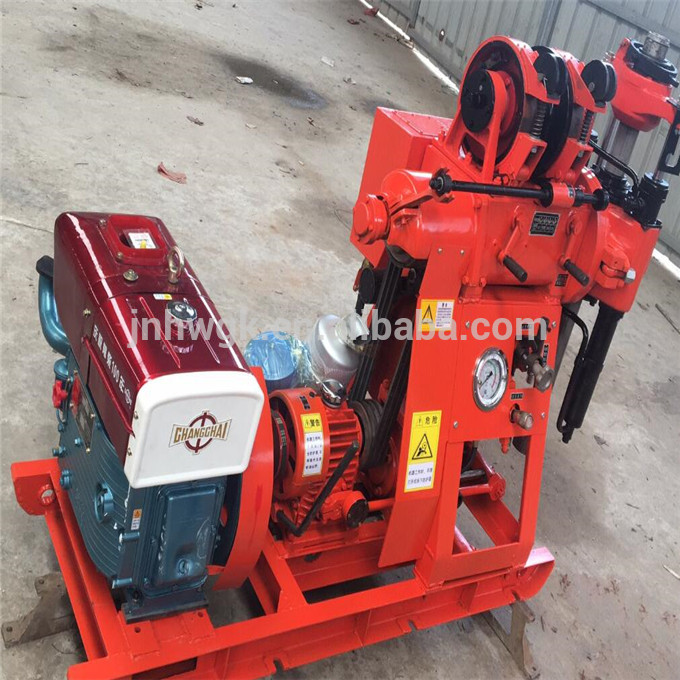

Small man portable trailer mounted water Well Drilling Rig Indonesia
XY-1Rig Technical Specifications | ||||||
Main technical parameters |
| Pump |
| |||
Drilling depth(m) | 100m | Type | Gear pumps | |||
Hole diameter | 110mm | Model | YBC-12/80 | |||
The final hole diameter | 75mm | Rated pressure
| 8Mpa | |||
Rod diameter | 42-50mm | Flow
| 8ml/r | |||
Borehole inclination | 90°— 75° | Rated speed
| 1500r/min | |||
Rig Dimensions (L×B×H) | 1640mm×1030mm×1440mm |
|
| |||
Rig weight(Except the power machine ) | 500kg | Motor and diesel |
| |||
Gyrator |
| type | ZSⅡ00 | |||
vertical speed | 142,285,570r/min | Rated Power | 11KW | |||
vertical stroke | 450mm | Rated speed | 2200r/min | |||
vertical load up the maximum speed
| 3m/min | Electric motor |
| |||
vertical load down the maximum speed | 4m/min | type | Y160M-4 | |||
The maximum vertical force feed | 15KN | Rated Power | 11KW | |||
The maximum vertical lifting force | 25KN | Rated speed | 1460r/min | |||
|
| Pump |
| |||
Winches |
| Type
| Horizontal single-cylinder double-acting
| |||
The maximum lifting capacity ( a single rope speed )
| 10KN | The maximum displacement
| 99(77)L/min | |||
Reel speed
| 55,110,220r/min | The maximum allowable pressure
| 1.2Mpa | |||
Roll peripheral speed | 0.42,0..84,1.68m/s | Working Pressure | 0.7Mpa | |||
Reel diameter | 145mm | The number of strokes | 120(96)min | |||
Rope diameter | 9.3mm | Liner diameter | 80mm | |||
Rope capacity | 27m | Piston stroke | 100mm | |||
Brake diameter | 230mm |
| ||||
Gate width | 50mm |
| ||||
