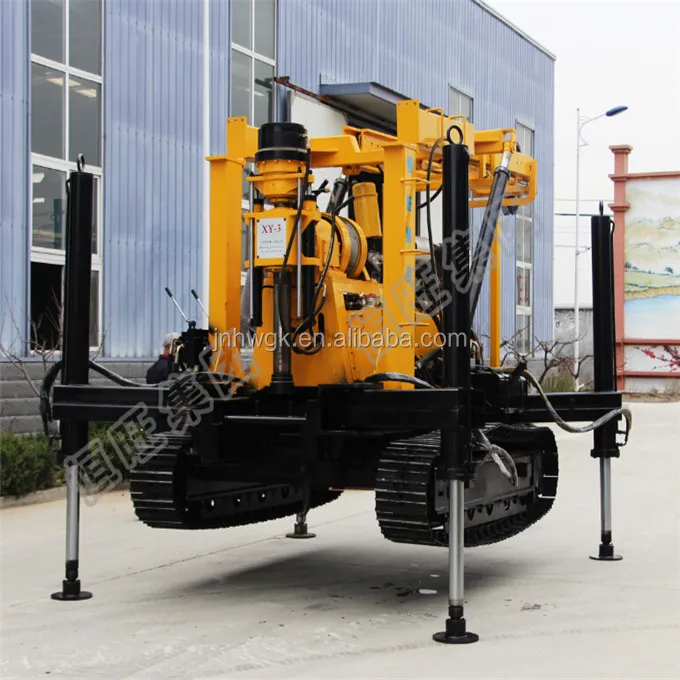

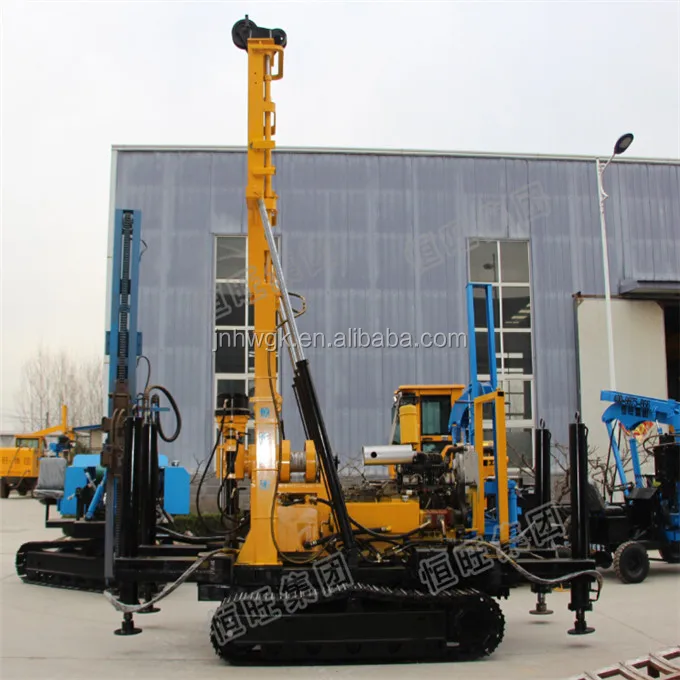

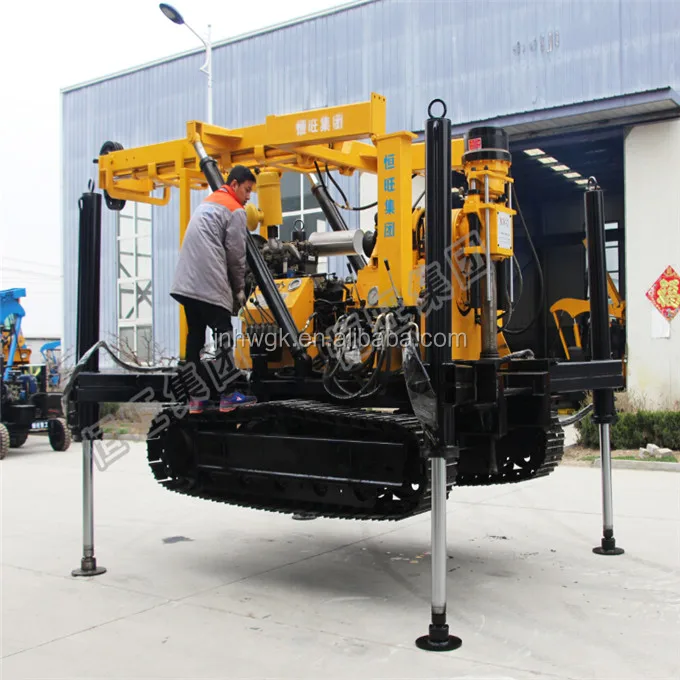

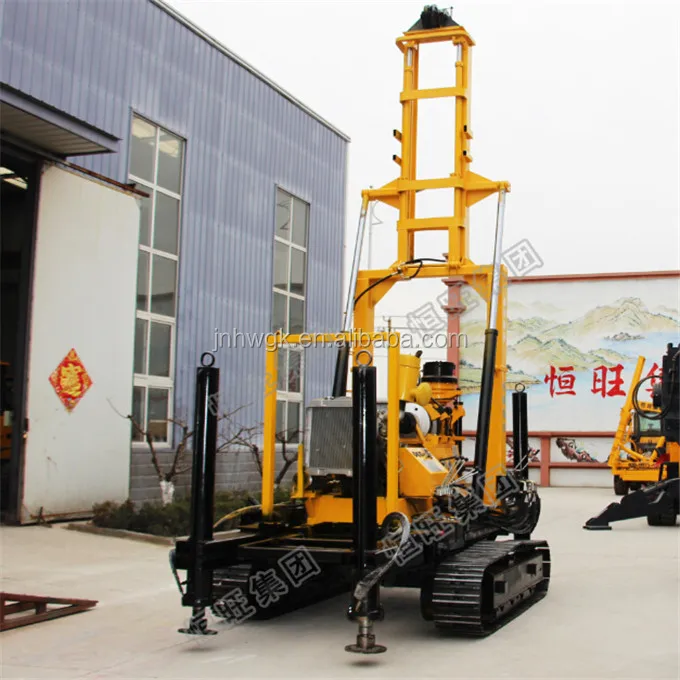

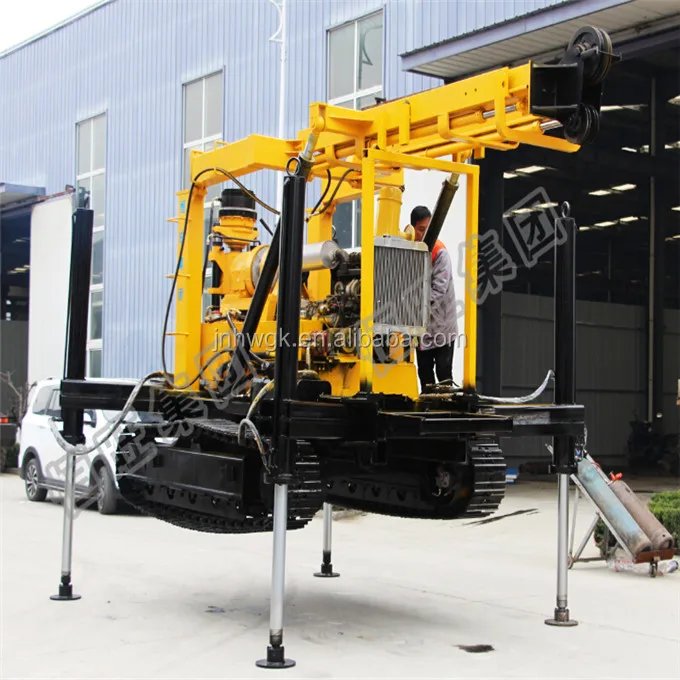

China manufactures small core borehole water well mining drilling rig machine

Click on the image to view the original image

Product：	views：3China manufactures small core borehole water well mining drilling rig machine
Branch：	HW
Type：	Rotary Drilling Rig
Size：	650X230X230 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: Customized

Dimension(L*W*H):: 250*900*1800mm

Weight:: 1600KG

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Drilling depth:: 600 meters

Drilling diameter:: 75-300mm

Name:: Water Well Drilling Rig

Hole diameter:: 300mm

Final hole diameter:: 75mm

Pipe:: 60mm

Boerhole inclination:: 90-65°

Diesel engine:: 39KW

Motor:: 22KW

Packaging & Delivery

Selling Units:: Single item

Single package size:: 650X230X230 cm

Single gross weight:: 6500.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

China manufactures small core borehole water well mining drilling rig machine

Technical Parameter:

Technical parameters	Model	XY-3	XYD-3	XYX-3
	Drilling depth (m)	600	600	600
	Open hole diameter (mm)	325	325	325
	End hole diameter(mm)	75	75	75
	Drill angle (°)	90-75	90-75	90-75
	Matching Power (kw)	YN27/39	YN33GB/65	YN27/39
	Weight without power(kg)	1800	6200	3600
	Dimensions(LWH)(mm)	2.60.91.75	4.522.7	2.92.563.3
Spindle	Speed (r/min)	32-1057	32-1057	32-1057
Spindle	Stroke(mm)	600	600	600
Winch	Max pull force(kg)	3000	4500	3000
	Pull Speed (m/s)	0.3-1.9	0.3-1.9	0.3-1.9
	Rope diameter(mm)	12.5	12.5	12.5
	Roll Capacity(m)	65	65	65
Drill Mast	Rated load(t)	18(option)	18	18
Drill Mast	Height(m)	11	6.5	6.5

China manufactures small core borehole water well mining drilling rig machine

Packaging & Shipping

China manufactures small core borehole water well mining drilling rig machine

Our Services

China manufactures small core borehole water well mining drilling rig machine
