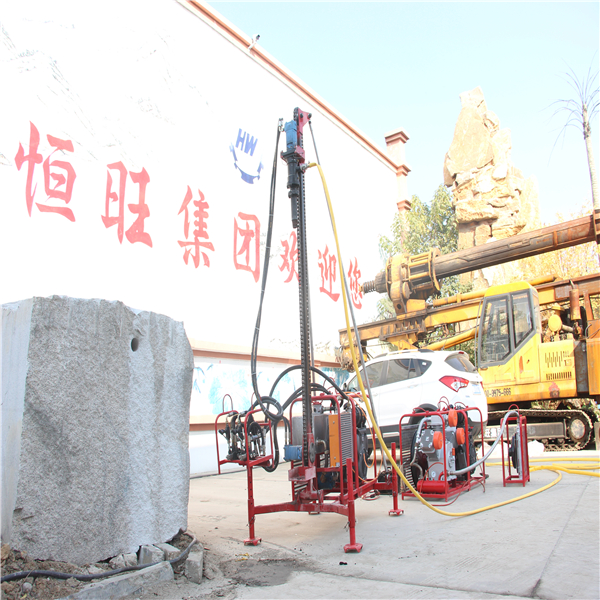

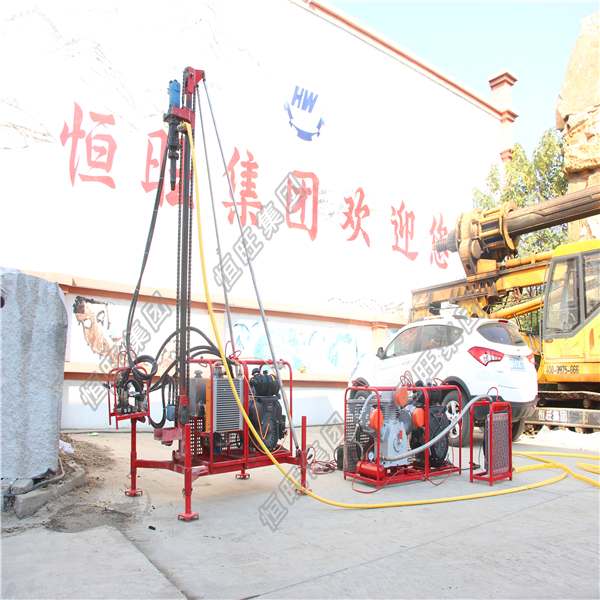

Mountain portable engineering coring drilling rig hydraulic mountain quarrying hard rock DTH drilling rig
Click on the image to view the original image
Product： views：5Mountain portable engineering coring drilling rig hydraulic mountain quarrying hard rock DTH drilling rig
Branch： hengwang
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
hengwang
Model Number:
Drilling Machine
Usage:
Coal
Voltage:
220v
Power(W):
20kw
Dimension(L*W*H):
746*315*229mm
Weight:
500kg
Certification:
ISO
Name:
hydraulic mountain quarrying hard rock DTH drilling rig
Product name:
hydraulic mountain quarrying hard rock DTH drilling rig
Application:
Geological Exploration
Drilling depth:
50m
Model:
HW
Color:
Customised
Feature:
High Drilling Efficiency
Engine:
Air
Drilling diameter:
75-90mm
Spindle Speed:
64. 128. 287. 557r/min
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Set/Sets per Month hydraulic mountain quarrying hard rock DTH drilling rig
Packaging & Delivery
Packaging Details
woodencase
Port
shanghai qingdaodalian shenzhenningbo
Lead Time:
within3days afterreceive yourfull payment
Product Description

Product Application

Drilling depth 50m
Drilling Method Air Shock Drilling
Spiral drilling and mud drilling (optional)
Drilling (hole) diameter (mm)
Air shock drilling
Rock formations 70-90, loose formations 75-95
Mud Drilling 75-90
Drill pipe (diameter × length)
Air Shock Drilling (mm) Φ60 × 1500
Mud drilling (mm)
Power Head
Rated torque (N.m) 800-900
Drilling speed range (r / min) 0-135
Drilling rig pressurization and enhancements
Feed pressure (N) 5500-6000
Drilling Rig (kN) 12-16
Drill the maximum lifting speed (m / s) 0.71-0.81
Main engine engine power (kw) / speed (r / min) 20/3600
Hydraulic system
Flow rate (L / min) 0-60
Working pressure (Mpa) 20
Air compressor
Model / configuration number
Sprayed screw / 1 group
Air volume (m3 / min) 3.8
Working pressure (Mpa) 0.8
Engine power (kw) / speed (r / min) 36/3600

Main Features

1.Adopted optimum technical preference, bigger lifting capacity and torque. High work efficiency.
2.Main hydraulic elements, air compressor and power system are all originally imported products, with good performance and reliable quality;
3.The drill rig is divided into 10 frame modules, and the weight of the largest part is no more than 70KG; it is characterized by fewer parts for handling or relocating, light weight, stronger dismounting performance and higher dismantling efficiency;
4.The oil of its hydraulic system is supplied by two pumps by way of single pump and single loop, which enables the hydraulic system to be subject to reliable operation, fewer troubles and easy troubleshooting;
5.The DC motor is used to drive the heat exchanger of hydraulic oil cooling system, with reliable radiating efficiency good performance;
6.Double padding forks are used to disassemble the drill pipe, which is characterized by convenient and efficient disassembly, and lower labor strength.
7.Easy to disassembly drill rod and lower labour intensity.
