Product Description

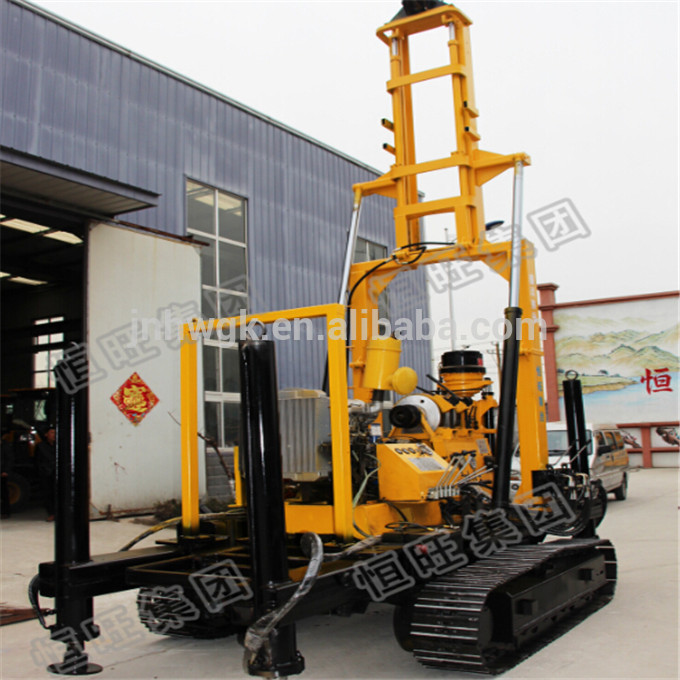

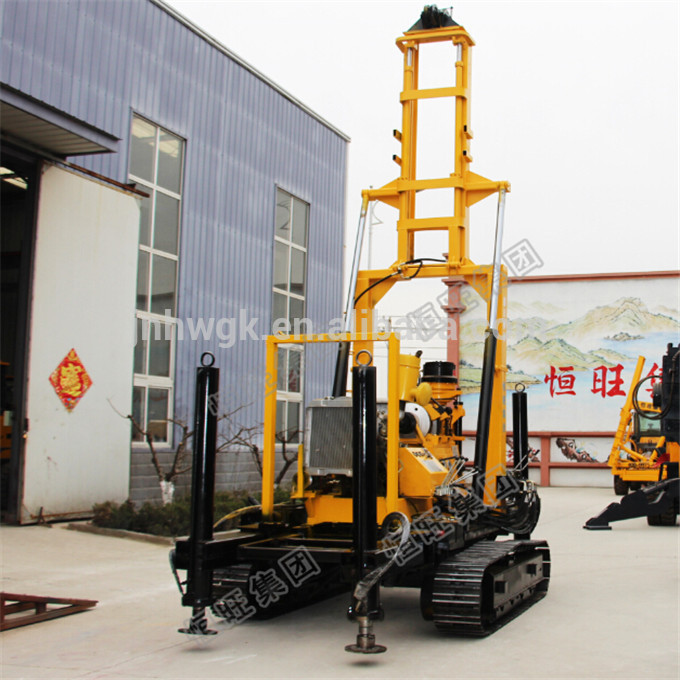

Top quality cheap and fine rotary water well drilling rig machine
Technical Parameter:
| Model | XY-3 | XYD-3 | XYX-3 |
| Drilling depth (m) | 600 | 600 | 600 | |
| Open hole diameter (mm) | 325 | 325 | 325 | |
| End hole diameter(mm) | 75 | 75 | 75 | |
| Drill angle (°) | 90-75 | 90-75 | 90-75 | |
| Matching Power (kw) | YN27/39 | YN33GB/65 | YN27/39 | |
| Weight without power(kg) | 1800 | 6200 | 3600 | |
| Dimensions(L*W*H)(mm) | 2.6*0.9*1.75 | 4.5*2*2.7 | 2.9*2.56*3.3 | |
| Spindle | Speed (r/min) | 32-1057 | 32-1057 | 32-1057 |
| Stroke(mm) | 600 | 600 | 600 | |
| Winch | Max pull force(kg) | 3000 | 4500 | 3000 |
| Pull Speed (m/s) | 0.3-1.9 | 0.3-1.9 | 0.3-1.9 | |
| Rope diameter(mm) | 12.5 | 12.5 | 12.5 | |
| Roll Capacity(m) | 65 | 65 | 65 | |
| Drill Mast | Rated load(t) | 18(option) | 18 | 18 |
| Height(m) | 11 | 6.5 | 6.5 |
Top quality cheap and fine rotary water well drilling rig machine
