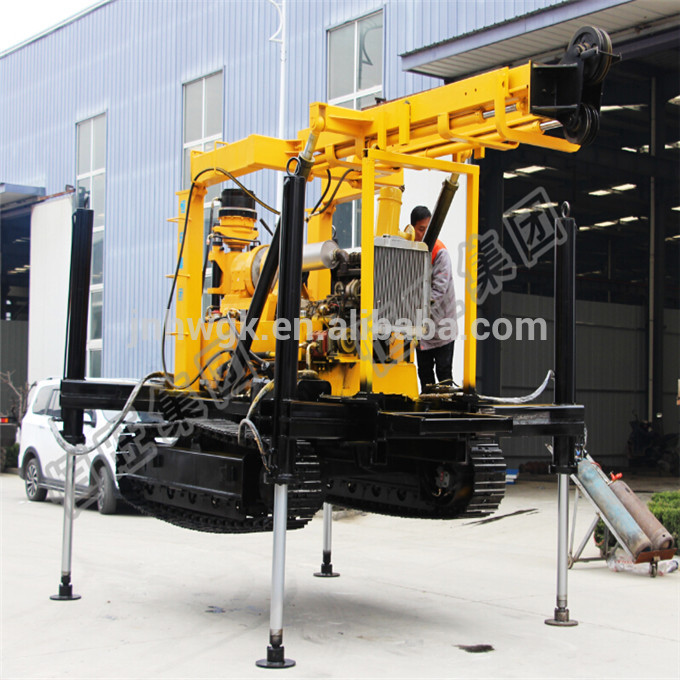

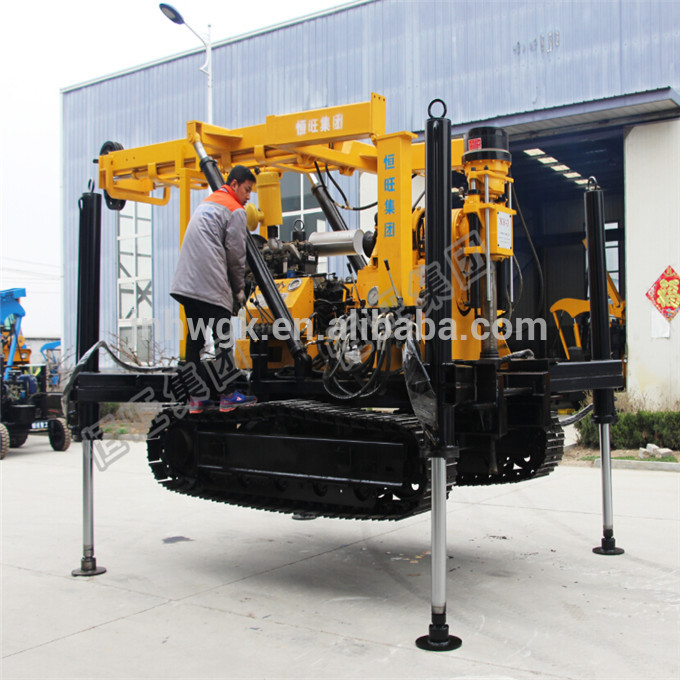

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling

Click on the image to view the original image

Product：	views：3300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling
Branch：	HW
Type：	Rotary Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: XY-3

Usage:: Water Well

Voltage:: Customized

Power(W):: 39KW

Dimension(L*W*H):: 250*900*1800mm

Weight:: 1600KG

Certification:: ISO

Drilling depth:: 600 meters

Drilling diameter:: 75-300mm

Name:: Drilling Rig For Borehole Drilling

Hole diameter:: 300mm

Final hole diameter:: 75mm

Pipe:: 60mm

Boerhole inclination:: 90-65°

Diesel engine:: 39KW

Motor:: 22KW

Color:: Customised

After-sales Service Provided:: Overseas service center available

Warranty:: One Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month 300M Core Drilling Rigs / Hydraulic Exploration Water Well Drill

Packaging & Delivery

Packaging Details: wooden case

Port: qingdao

Lead Time:: within7 days

Product Description

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling

Technical Parameter:

Technical parameters	Model	XY-3	XYD-3	XYX-3
	Drilling depth (m)	600	600	600
	Open hole diameter (mm)	325	325	325
	End hole diameter(mm)	75	75	75
	Drill angle (°)	90-75	90-75	90-75
	Matching Power (kw)	YN27/39	YN33GB/65	YN27/39
	Weight without power(kg)	1800	6200	3600
	Dimensions(LWH)(mm)	2.60.91.75	4.522.7	2.92.563.3
Spindle	Speed (r/min)	32-1057	32-1057	32-1057
Spindle	Stroke(mm)	600	600	600
Winch	Max pull force(kg)	3000	4500	3000
	Pull Speed (m/s)	0.3-1.9	0.3-1.9	0.3-1.9
	Rope diameter(mm)	12.5	12.5	12.5
	Roll Capacity(m)	65	65	65
Drill Mast	Rated load(t)	18(option)	18	18
Drill Mast	Height(m)	11	6.5	6.5

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling

Packaging & Shipping

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling

Our Services

300M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine / Oil And Electric Power Drilling
