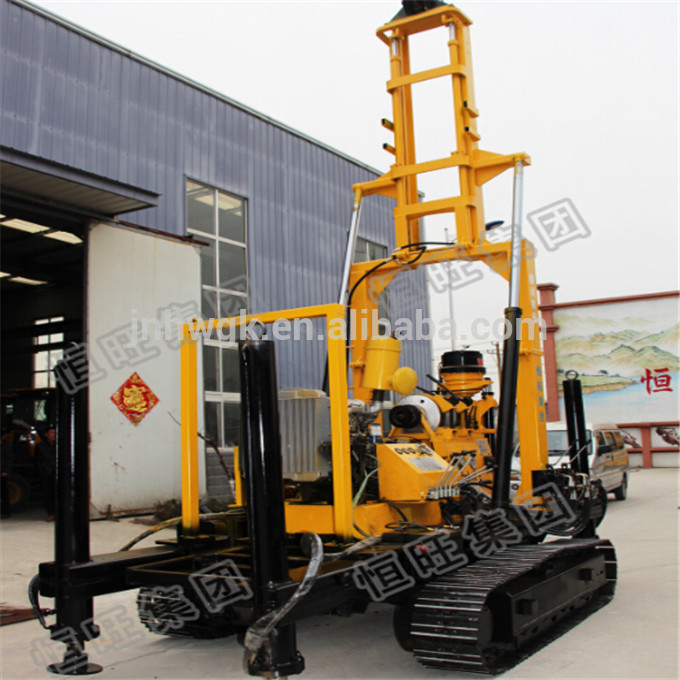

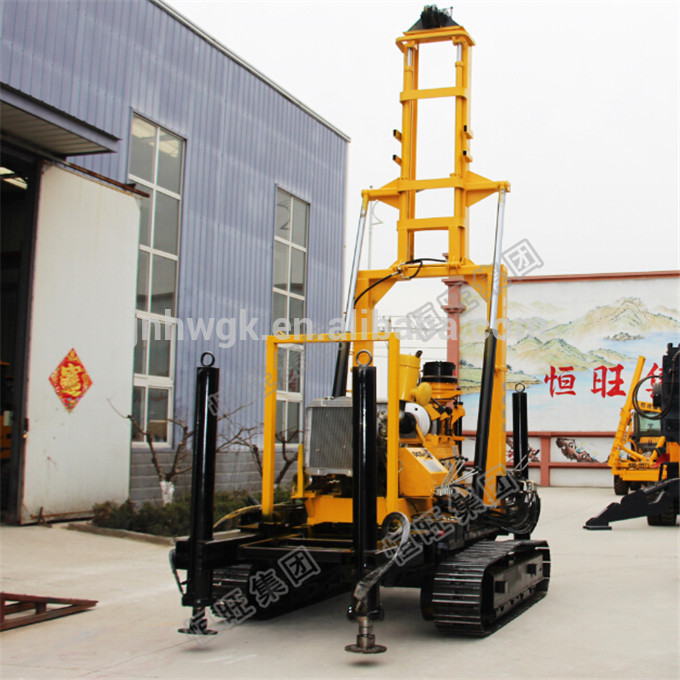

Crawler hydraulic interlock kelly bar mine rotary drilling rig piling machine

Click on the image to view the original image

Product：	views：3Crawler hydraulic interlock kelly bar mine rotary drilling rig piling machine
Branch：	HW
Type：	Rotary Drilling Rig
Size：	580X230X230 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Water Well

Voltage:: Customized

Dimension(L*W*H):: 250*900*1800mm

Weight:: 1600KG

Certification:: ISO

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Overseas service center available

Drilling depth:: 600 meters

Drilling diameter:: 75-300mm

Name:: Bore Pile Drilling Machine For Sale In China

Hole diameter:: 300mm

Final hole diameter:: 75mm

Pipe:: 60mm

Boerhole inclination:: 90-65°

Diesel engine:: 39KW

Motor:: 22KW

Packaging & Delivery

Selling Units:: Single item

Single package size:: 580X230X230 cm

Single gross weight:: 5800.0 kg

Package Type:: wooden case

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

Crawler hydraulic interlock kelly bar mine rotary drilling rig piling machine

Technical Parameter:

Technical parameters	Model	XY-3	XYD-3	XYX-3
	Drilling depth (m)	600	600	600
	Open hole diameter (mm)	325	325	325
	End hole diameter(mm)	75	75	75
	Drill angle (°)	90-75	90-75	90-75
	Matching Power (kw)	YN27/39	YN33GB/65	YN27/39
	Weight without power(kg)	1800	6200	3600
	Dimensions(LWH)(mm)	2.60.91.75	4.522.7	2.92.563.3
Spindle	Speed (r/min)	32-1057	32-1057	32-1057
Spindle	Stroke(mm)	600	600	600
Winch	Max pull force(kg)	3000	4500	3000
	Pull Speed (m/s)	0.3-1.9	0.3-1.9	0.3-1.9
	Rope diameter(mm)	12.5	12.5	12.5
	Roll Capacity(m)	65	65	65
Drill Mast	Rated load(t)	18(option)	18	18
Drill Mast	Height(m)	11	6.5	6.5

Crawler hydraulic interlock kelly bar mine rotary drilling rig piling machine
