Parameters:
Product type | Name | Four wheel electric concrete laser leveling machine | Unit |
Type | YZ25-4 | ||
Engine | Mode | HONDA GX690 | |
Type | petrol,Air cooled 4 stroke,Double cylinder | ||
Power | 25 | HP | |
Lubrication oil level | 1.9 | L | |
Fuel tank volume | 34 | L | |
Leveling system | Working mode of screed head | Stationary type | |
Screed width | 2500 | mm | |
Paving mode | Screw conveyor spreading | ||
Paving thickness | 60-300 | mm | |
Screw conveyor power | Low speed large torque cycloidal hydraulic motor | ||
Control mode of vibrating system | Vibration motor | ||
Excitation force | 2000 | N | |
Vibration frequency | 50 | Hz | |
Laser system | Control mode of laser system | Microcomputer laser scanning | |
Control effect of laser system | Flat surface,Slope,Double slope(three-dimensional) | ||
Driving system | Drive type | Reducer+Motor | |
Wheel | Solid puncture proof tyre | ||
Speed | 0-40 | m/min | |
Operation modes | Seat position | Rear-mounted | |
Forward, back away | Handle control,Stepless speed change | ||
Turning | Hydraulic power assisted,Steering wheel control | ||
Cleaning system | Power | External motor | |
Theoretical flow | 20 | L/min | |
Rated pressure | 7 | Mpa | |
Size and weight | Outline dimension | 3370*2890*1850 | mm |
Net weight | 800 | Kg |

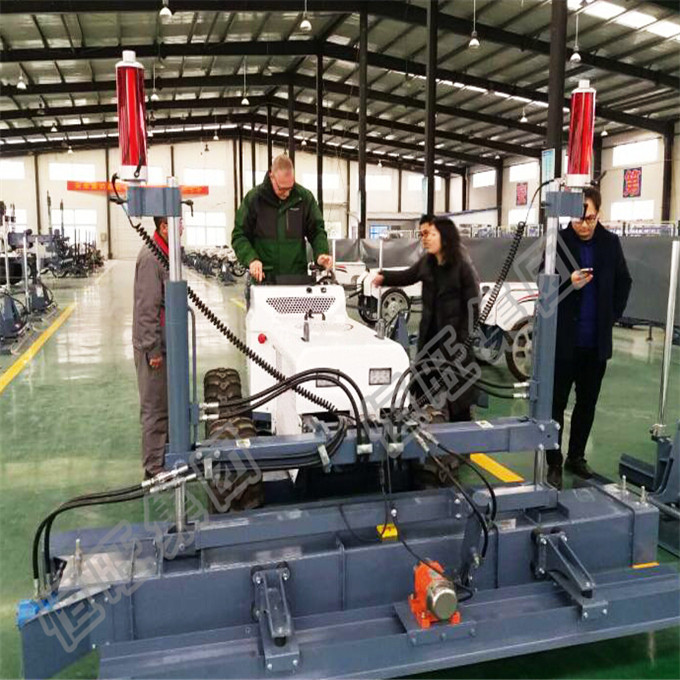

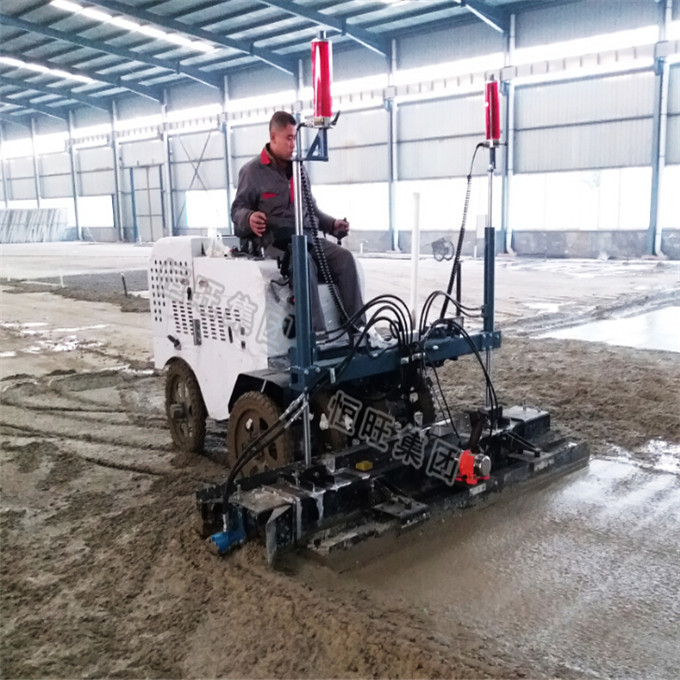

2500mm Concrete Paving width Level Laser Screed machine for Road surface
2500mm Concrete Paving width Level Laser Screed machine for Road surface
2500mm Concrete Paving width Level Laser Screed machine for Road surface
2500mm Concrete Paving width Level Laser Screed machine for Road surface
