Home > Products > High pressure BW 160 piston small mud pump for drilling rig

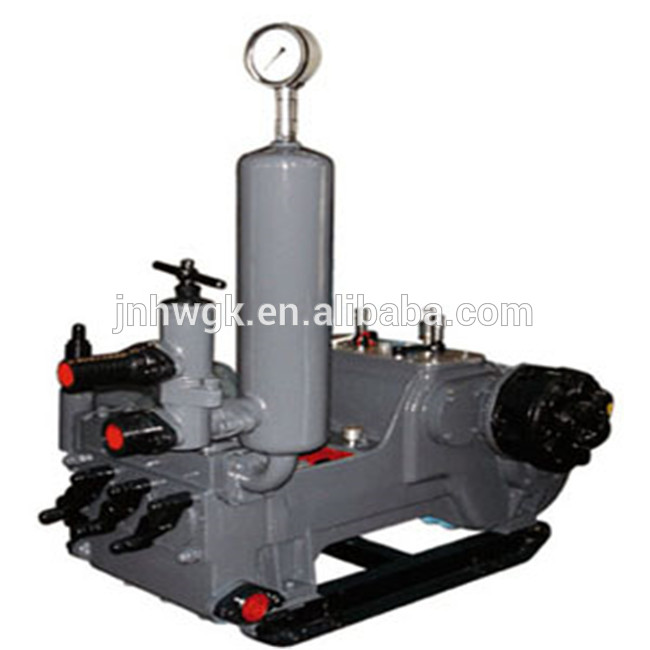

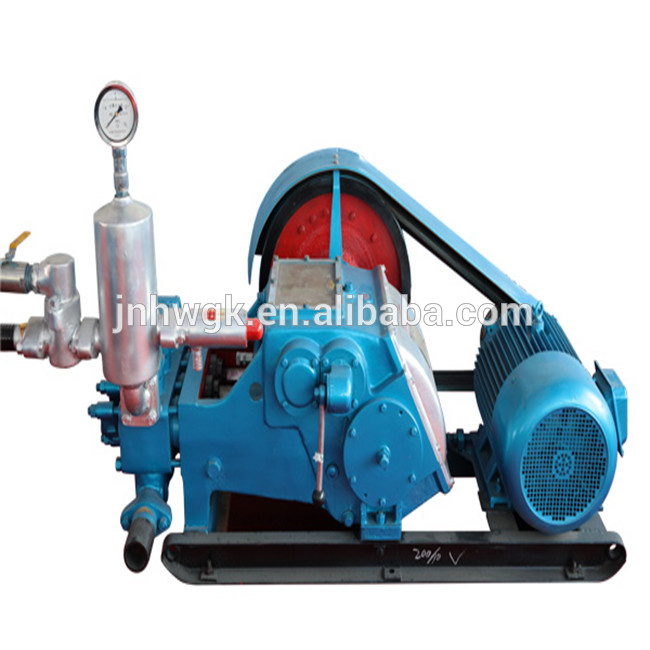

High pressure BW 160 piston small mud pump for drilling rig

Click on the image to view the original image

Product：	views：3High pressure BW 160 piston small mud pump for drilling rig
Branch：	HWGK
Size：	80X40X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: BW160

Structure:: pneumatic sump pump

Usage:: mud pump

Application:: Submersible

Power:: Electric

Fuel:: electric,diesel

Pressure:: Low Pressure

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

name:: mud pump

mud pump model:: BW160,BW132

mud pump type:: electric mud pump,diesel mud pump

mud pump for:: Drill rig

mud pump motor:: electric, diesel

mud pump power:: 220V

single cylinder mud pump:: BW160 mud pump

Packaging & Delivery

Selling Units:: Single item

Single package size:: 80X40X60 cm

Single gross weight:: 68.0 kg

Package Type:: 220V mud pump within wooden box

Lead Time:

Quantity(Piece)	1 - 5	6 - 15	>15
Est. Time(days)	2	4	To be negotiated

High pressure BW 160 piston small mud pump for drilling rig

Product Description

Productd Details:

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor

power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,

stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable

configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy

geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

Product Parameter:

MODEL	BW-160/10
TYPE	Horizontal, Triplex, Single Acting Reciprocating pump
STROKE (mm)	70
LINER DIA. (mm)	70
STROKES (min^-1)	200 132 83 55
DISPLACEMENT (L/min)	160 107 67 44
PRESSURE (Mpa)	2.5 4 6.5 10
INPUT POWER (kW)	11
SUCTION PIPE DIA. (mm)	51
DISCHARGE PIPE DIA.(mm)	25
DRILLING HOLE DEPTH	Diamond Core Drilling <1000m
DIMENSION (mm)	1400X850X950
WEIGHT	380KG

Packaging & Shipping

Loading time: within 3 days

Shipping: By sea,by air,or others
