Crawler water well rotary DTH drilling rig machine for sale

Click on the image to view the original image

Product：	views：3Crawler water well rotary DTH drilling rig machine for sale
Branch：	HW
Type：	Core Drilling Rig
Size：	660X210X250 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Applicable Industries:: Construction works

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: Coal

Voltage:: 380V

Dimension(L*W*H):: 2.75*0.95*1.6m

Weight:: 2500KG

Certification:: ISO

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Model:: track drilling machine

Name:: drilling rig machine for sale

Drilling depth:: 100-600m

Drilling method:: Top Drive Hydraulic Rotary Drilling

Drill rod length:: 1.5-3.0

Drilling diameter:: 75-325mm

Air consumption:: 17-35

Engine:: Diesel Power

Working Pressure(bar):: 10.5-24.6bar

Packaging & Delivery

Selling Units:: Single item

Single package size:: 660X210X250 cm

Single gross weight:: 12000.0 kg

Package Type:: drilling rig machine for sale

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	10	To be negotiated

Product Description

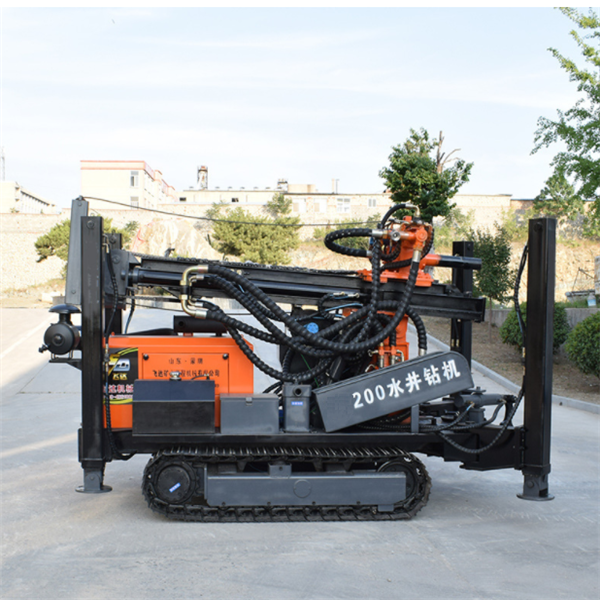

Crawler water well rotary DTH drilling rig machine for sale

1: Small size, light weight, easy to install.
2: three major components, host, pumping station, console.
3: In the original transport, prospecting can be put into production, the overall structure of the mine play a protective role. Can also be used for 0-90 degree drilling on the surface.
4: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.
5: The use of box-type into the rack, grips to step up, power head rotary drilling, tank pull drill,
Save bulky rigs.
6: With the linkage function, centralized control through the console, simple and safe, Promise speed.
7: Hollow shaft design, the length of the drill pipe is not limited by the rig. Can be drilled at any angle of 360 °.
8: disassembly is good, easy to move and transport

Drilling diameter	254mm
Drilling depth	150m
Drilling angle	45~90 degree
Drilling depth one time	1500mm
Power	63KW
Drilling speed	62 rpm
Air pressure	0.8~2.1 Mpa
Weight	2500KG
