Product Application

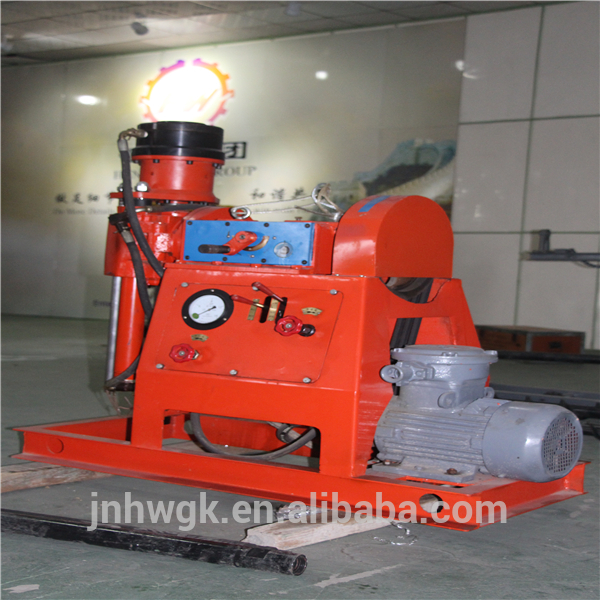

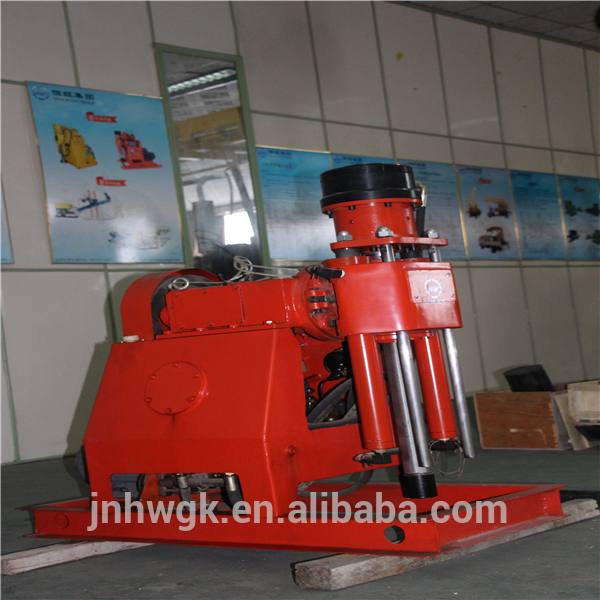

water well drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole, drilling and direct grouting, civil wells and earth temperature central air-conditioner, ect.
Machine parameters
Drilling depth of 180m
The largest hole diameter φ75-φ150mm
The final hole diameter 75-46mm
Active drill pipe 53/59 * 4200mm
Drill pipe diameter φ50, φ42mm
Drilling angle of 90 ° ~ 75 °
Supporting power (diesel) 13.2 / 2200kW / r / min
Structure weight / size 955kg / 2400 * 950 * 1400
Vertical axis
Vertical shaft speed 130,300,480,730,830,1045r / min
Vertical axis travel 450mm
hoist
Single rope lifting force 9.6kN
Single rope lift speed 0.35,0.8,1.29,1.96,2.23m / s
Reel diameter φ140mm
Wire rope diameter φ9.3mm
Rope capacity of 27m
Drilling tower
Rated load 2t
Effective height 6m
Tower legs specifications φ73mm
Mud pump
Model BW95
Flow 95L / min
The maximum pressure of 1.2Mpa
The number of reciprocations 93 times / min
Suction pipe diameter φ51mm * 4.5m
High pressure water outlet φ32mm * 6m
Main Features
2. The machine is equipped with national patent technology-taper clutch, with characters of strong transmission torque, easy operation and free maintenance.
3. Using large module planetary gear and supporting frame added, greatly increasing hoisting and braking ability of the winch.
4. Vertical spindle is located by four groups of the bearings to ensure that the gyrator gears are rigid enough for gravel layer and other complex geological conditions.
5. Equipped with one-piece of mud pump with the flow of 160L/Min, which has got the advantages of cost-saving, compact structure and portable.
