Hydraulic Discharging diesel concrete mixer machine with lift price
Click on the image to view the original image
Product： views：3Hydraulic Discharging diesel concrete mixer machine with lift price
Branch： heng wang
Type： Hydraulic Discharging diesel concrete mixer machine with lift price
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
800L
Reclaiming capacity:
500L
Mixing Power:
11kw
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
heng wang
Model Number:
JZC500
Motor Power:
1.1KW
Speed of Mixing Drum:
14r/min
Water Supply Mode:
Hydraulic Water Driven Pump
Working Cycle Period:
2-5min
Discharge Way:
Hydraulic Discharging
Outline Dimension:
2766*2140*3000mm
Product name:
Hydraulic Discharging diesel concrete mixer machine with lift price
Name:
Hydraulic Discharging diesel concrete mixer machine with lift
Color:
Customer's Requirement
Power type:
Diesel Engine Concrete Mixture Machine
Application:
Construction Industry
Keywords:
Hydraulic Discharging diesel concrete mixer machine with lift price
Model:
JZC500
Weight:
2100kg
Type:
Hydraulic Discharging diesel concrete mixer machine with lift price
Engine:
YANMAR Diesel Engine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month Hydraulic Discharging diesel concrete mixer machine with lift pr
Packaging & Delivery
Packaging Details
nonpackage
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time:
within3 workingdaysafter receive your payment
Product Description

Product Application

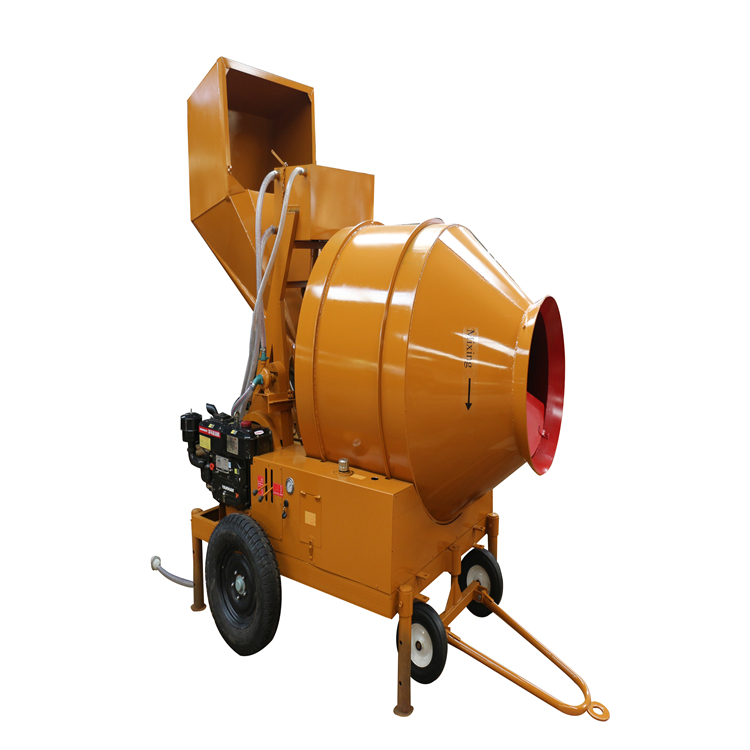

JZC 500 YANMAR Diesel EnginePowered Concrete Mixer with Hydraulic Tipping Hopper ismixer of double conical drums which discharge concrete by reverserotation, suitable for mixing plastic and semidry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and smallsized prefabricatedcomponent factories etc.

Technical  Parameter

Discharge capacity: 500L
Feed capacity: 800L
Production: 18-20m3 / h
Volume of cement: 3bags
Roller thickness: 8mm
Power: Yanmar diesel engine
Hydraulic pump displacement: 20ml / r
Roller speed: 13rpm
Aggregate maximum size: 80mm
Tire size: 6.50-16
Weight: 2100kg
Overall size: 3600 * 2300 * 3650mm
Packing size: 2600 * 2000 * 2500mm
