Home > Products > JZC 350 diesel engine self loading Hydraulic lift Concrete Mixer machine

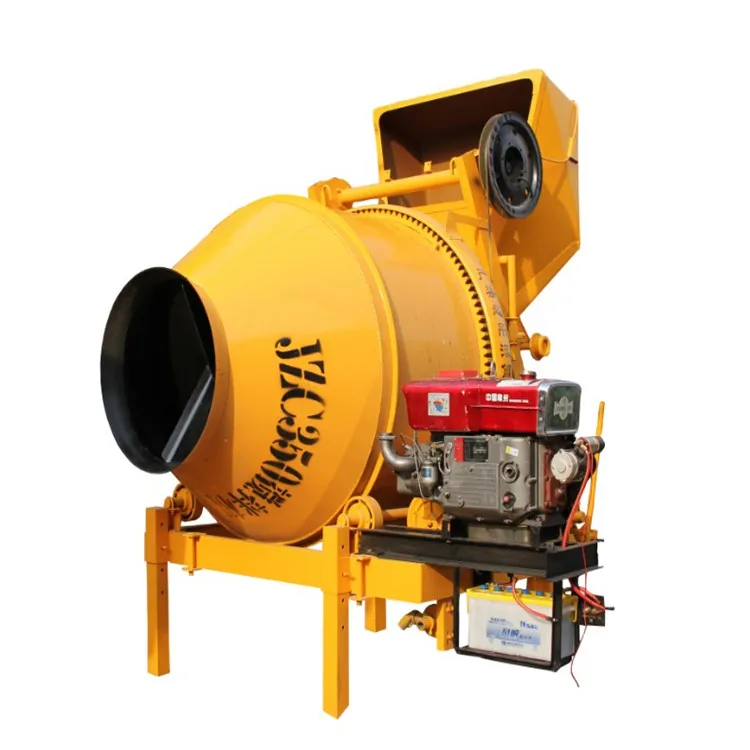

JZC 350 diesel engine self loading Hydraulic lift Concrete Mixer machine
Click on the image to view the original image
Product： views：3JZC 350 diesel engine self loading Hydraulic lift Concrete Mixer machine
Branch： heng wang
Type： JZC350self loadingmobile portablediesel engine concrete mixer
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Charging Capacity:
560L
Reclaiming capacity:
350L
Mixing Power:
5.5kw
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
heng wang
Model Number:
JZC350
Motor Power:
0.75kw
Speed of Mixing Drum:
14r/min
Water Supply Mode:
Hydraulic Water Driven Pump
Working Cycle Period:
2-5min
Discharge Way:
Hydraulic Discharging
Outline Dimension:
2766*2140*3000mm
Product name:
JZC350self loadingmobile portablediesel engine concrete mixer
Name:
JZC350self loadingmobile portablediesel engine concrete mixer
Color:
Customer's Requirement
Power type:
Diesel Engine Concrete Mixture Machine
Application:
Construction Industry
Keywords:
JZC350self loadingmobile portablediesel engine concrete mixer
Model:
JZC350/JZC500
Weight:
1990kg
Type:
JZC350self loadingmobile portablediesel engine concrete mixer
Engine:
YANMAR Diesel Engine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month JZC 350 diesel self loadingHydrauliclift Concrete mixer
Packaging & Delivery
Packaging Details
nonpackage
Port
shanghai qingdao dalian shenzhen ningbo
Lead Time:
within3 workingdaysafter receive your payment
Video Description
Product Description

Product Application

JZC 350 YANMAR Diesel EnginePowered Concrete Mixer with Hydraulic Tipping Hopper ismixer of double conical drums which discharge concrete by reverserotation, suitable for mixing plastic and semidry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
It is featured by diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and smallsized prefabricatedcomponent factories etc.

Technical  Parameter

Model JZC350 Diesel Concrete Mixer
Specific Fuel Consumption(g/kw.h) <=257.00
Discharging Volume 350L
Charging Volume 560L
Productivity 10-14m3/h
Rotation Speed of Mixing Drum  14r/min
Maximum Size of Aggregate 60mm
Accuracy of Water SupplyError <=2%
Mixing Motor 5.5kw
Pump Motor 0.75kw
Tyre Size 6.50-16
Maximum Transport Speed  20km/h
Dimension  2766*2140*3000mm
Weight 1990kg
Battery
Voltage:12V
Starting Current :440A
