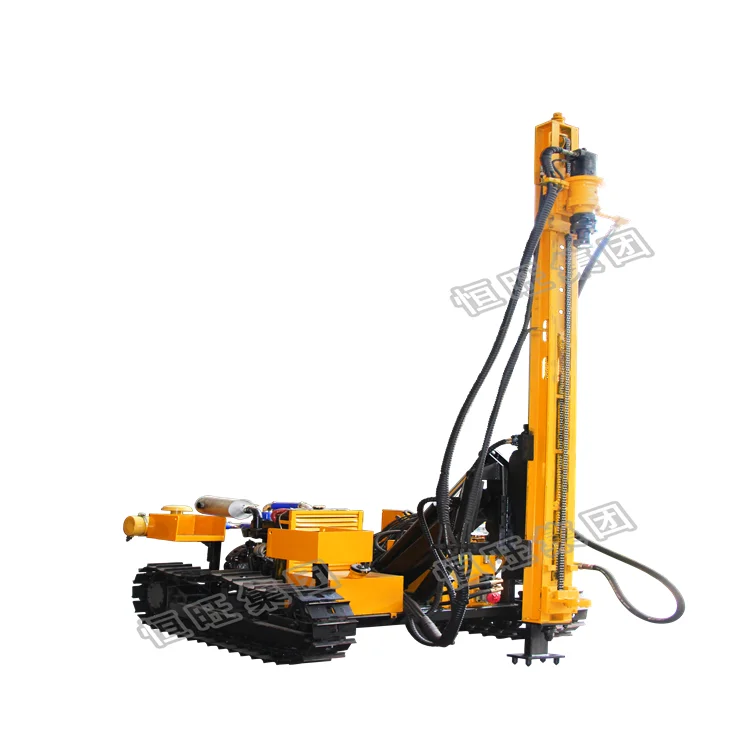

Crawler Dth Mobile Pneumatic Portable Drilling Rig for sale
Click on the image to view the original image
Product： views：3Crawler Dth Mobile Pneumatic Portable Drilling Rig for sale
Branch： HENGWANG
Type： Rotary Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HENGWANG
Model Number:
HW50
Usage:
DTHdrilling
Voltage:
Diesel Engine Driven
Power(W):
20.2KW
Dimension(L*W*H):
4100*2030*2020MM
Weight:
3100KG
Certification:
ISO
Name:
Crawler Dth Mobile Pneumatic Portable Drilling Rigfor sale
Product name:
Crawler Dth Mobile Pneumatic Portable Drilling Rigfor sale
Application:
Crawler Dth Mobile Pneumatic Portable Drilling Rigfor sale
Drilling depth:
25m
Model:
HW50
Color:
Customised
Feature:
High Drilling Efficiency
Drilling diameter:
80-110mm
Spindle Speed:
105r/min
Engine:
Diesel Power
Warranty:
1 Year
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
1000 Set/Sets per Month Crawler Dth Mobile Pneumatic Portable Drilling Rigfor sale
Packaging & Delivery
Packaging Details
nonpackage
Port
shanghaiqingdao dalian shenzhen ningbo
Lead Time:
within5workingdays after receiveyourfull payment
Product Description

Product Application

drilling rig belonging to type pneumatic rock drilling equipment, equipped with large power pneumatic motor, heavy duty hydraulic drill arm,hydraulic system 17.24 Mpa, 5.9m long sliding frame and high air presssure DTH hammer.  drilling rig has reliable performance, suitable for operating conditions. It also reducecosts and improve the efficiency.

Technical  Parameter

Rock hardness f = 6-20
Machine weight 3100kg
Drilling hole diameter Φ80-110mm
Dimensions 4100x2030x2020
Economic drilling depth  25m
The pitch angle of the carriage 118.5 ° and 23.5 °
Rotation speed 105r / min
The swing angle of the carriage  36.5 ° to 11.5 ° for a total of 48 °
Rotary torque 980N · m
Lifting force 15000N
The carriage compensation length   900mm
Push the way :cylinder - chain
Power ZS1125GM (20.2kW 2200r / min)
Advance travel 2000mm
Drill pipe Φ60
Walking speed 0-2.0Km / h
Working pressure 0.7-1.4 MPa
Climbing capacity  30 °
Air consumption 9-13m ³ / min
Ground clearance 254mm

Spare part for free
1DTH HAMMER1
2DRILL BIT1
3AIR HOSE1
476MM DRILL PIPE5
5CONNECTING SLEEVE8
6TRANSITION JOINTS1
7CONNECT2
8O-RINGS2
9HIGH PRESSURE GREASE GUN1
10WRENCHES9
11SCREWDRIVER1
12ADJUSTABLE WRENCH1
13LIFTING ROPES3


Certifications

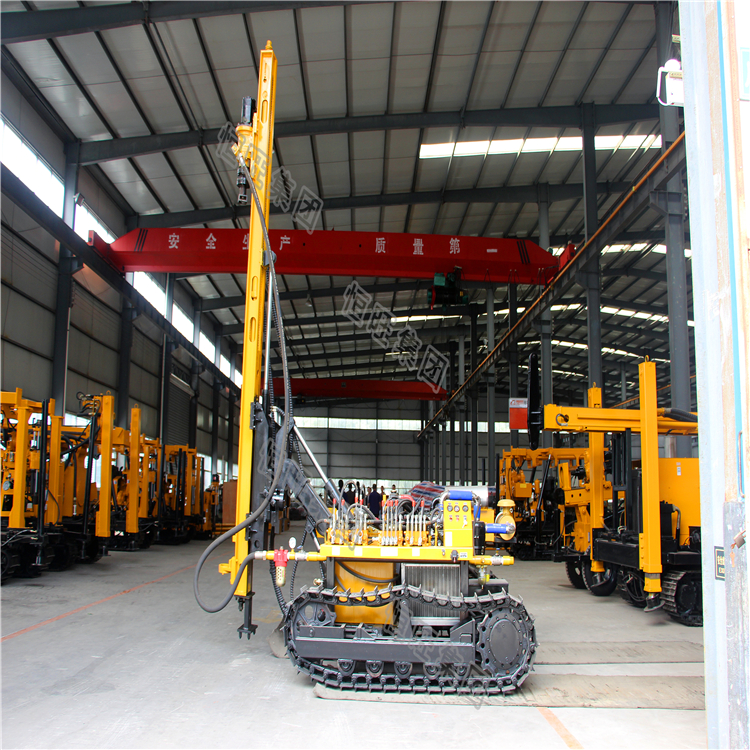

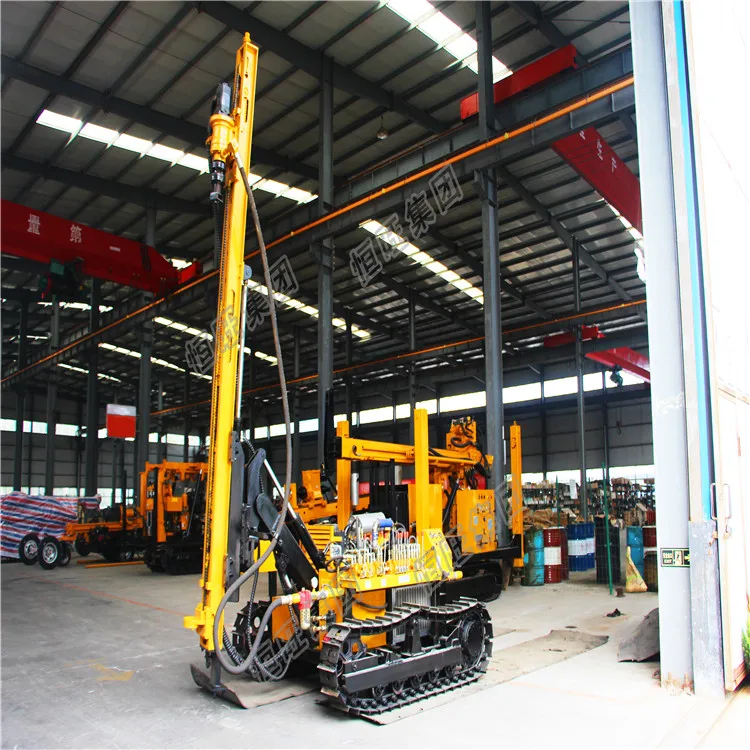

Detailed Images
