Home > Products > Crawler pneumatic DTH Rock Blasting Downhole Drill Rig

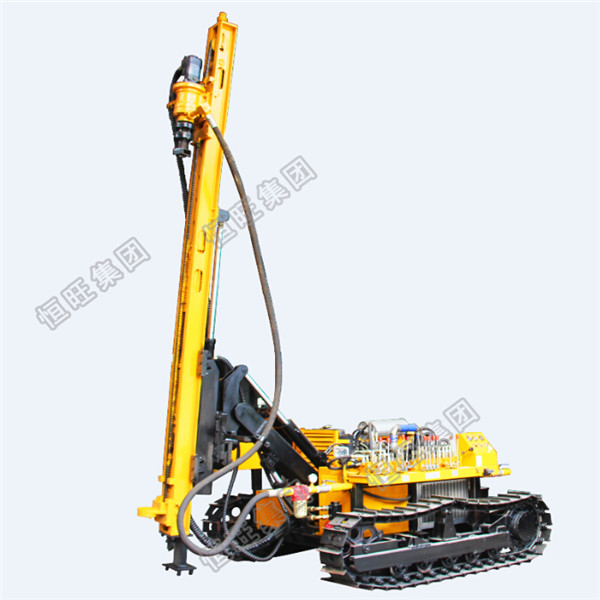

Crawler pneumatic DTH Rock Blasting Downhole Drill Rig
Click on the image to view the original image
Product： views：3Crawler pneumatic DTH Rock Blasting Downhole Drill Rig
Branch： HW
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HW
Usage:
Coal
Voltage:
380V
Power(W):
33KW
Dimension(L*W*H):
4600*2120*1800
Weight:
3900KG
Certification:
ISO9001
Model:
rock drilling rig
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Year Rock drilling rig
Packaging & Delivery
Packaging Details
container
Port
QINGDAO
Lead Time:
one week
Product Description
HKG25 drilling rig
Rock hard
f=6-20
Drilling diameter（mm）
φ80-105
Drilling depth（m）
25
Working speed （Km/h）
0～2.5
Gradeability（ °）
30
Minimum ground clearance（mm）
320
Engine
YC2108（33kW/2200rpm）
Demision（mm）
4600×2120×1800
Weigth（Kg）
3900
Working pressure（MPa）
0.7-1.4
Carriage stroke（mm）
3000
The biggest tilt of the slide（ °）
185
Maximum swing Angle of slide frame（ °）
Right 100o（45o）   Lift5o（45o）
The maximum Angle of the drill arm（ °）
Right45o   Lift45o
Compensative travel（mm）
900
Speed of supporting table（rpm）
0-120
Rotary torque（N.m）
983
Lifting Power（KN）
17
Drilling pole diameter（mm）
φ60

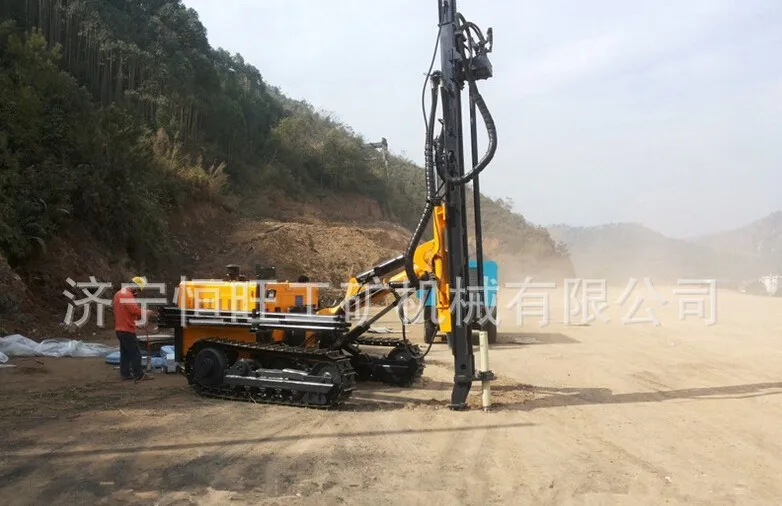

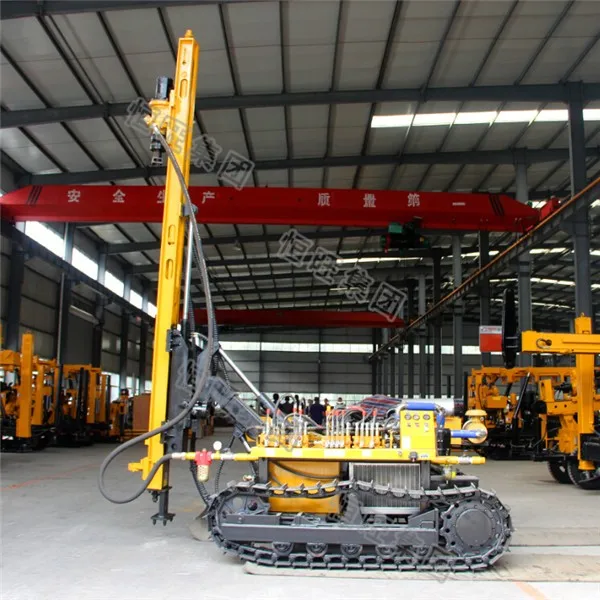

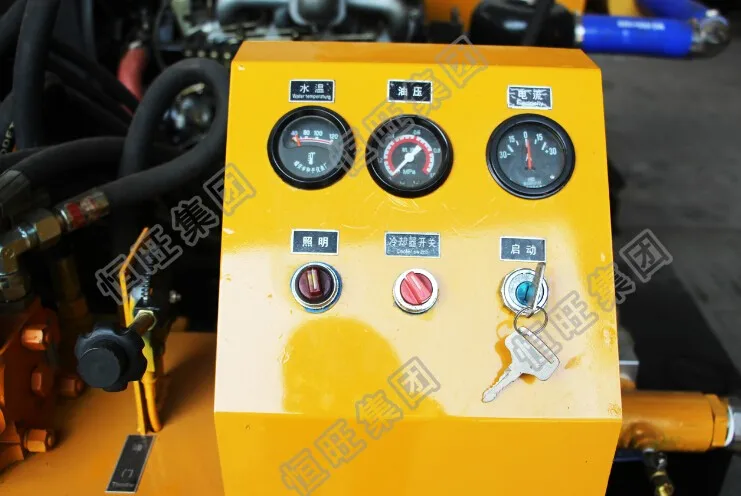

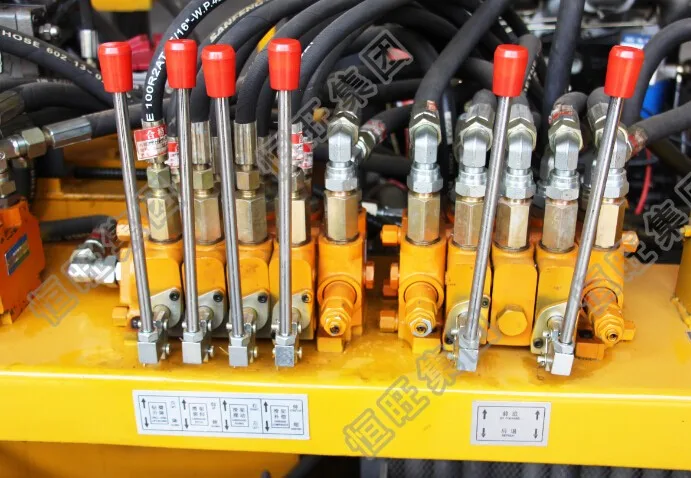

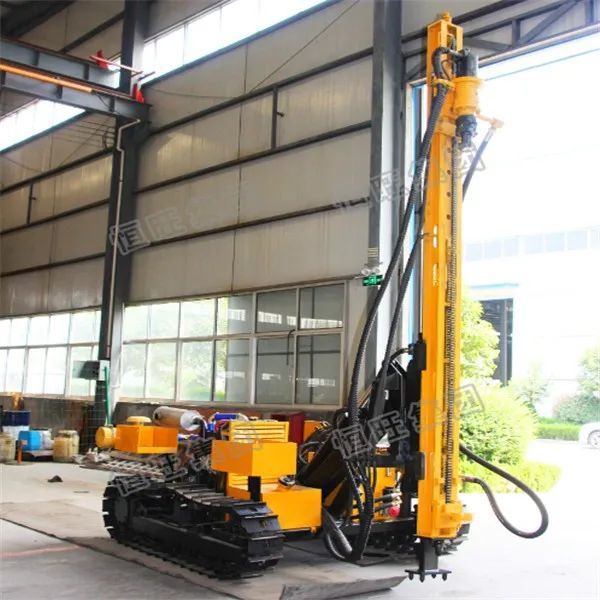

Products Show
