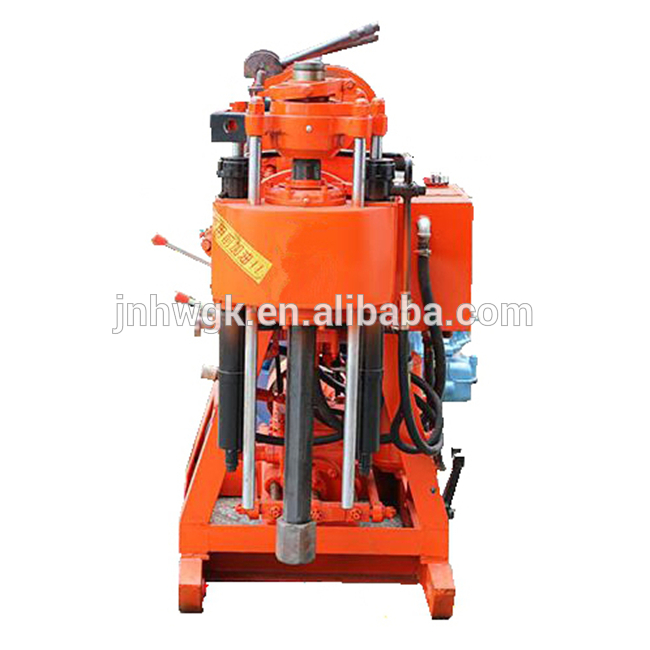

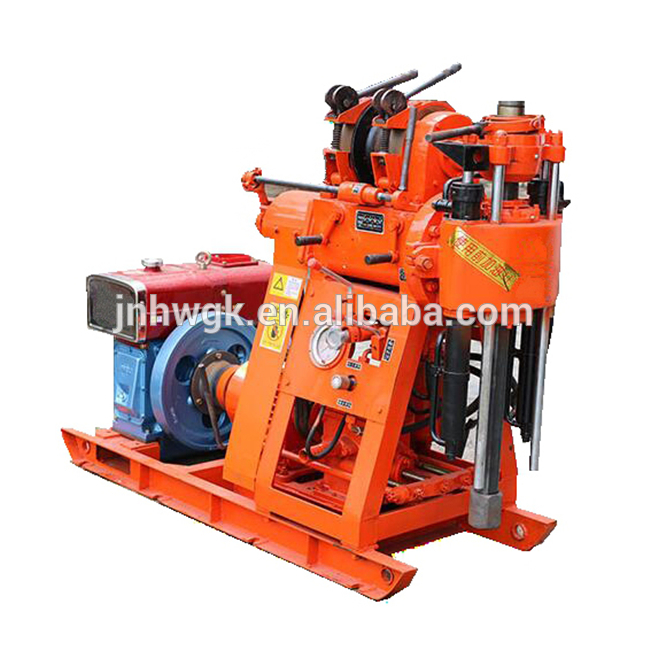

Diesel Engine Driven XY-1 Model Small Shallow Water Well Drilling Machine
Click on the image to view the original image
Product： views：3Diesel Engine Driven XY-1 Model Small Shallow Water Well Drilling Machine
Branch： HWGK
Type： Core Drilling Rig
Size： 90X40X70 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:25
  Negotiated
Product Details
Overview
Quick Details
Applicable Industries:
Drilling
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
HWGK
Usage:
Water Well
Voltage:
Diesel Engine Driven
Dimension(L*W*H):
1640*850*1340mm
Weight:
500kg
Certification:
ISO9001
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
Water Well Drilling Rig
Max. Drilling depth:
100m
Max. Hole diameter:
75--300mm
End hole diameter:
75mm
Drill pipe diameter:
42/50mm
Drilling angle:
90°-75°
Diesel Engine Model:
ZS1105 (18HP)
Rated Power:
13.3KW
Rated Speed:
2200r/min
Oil Pump Model:
YBC-20/125

Packaging & Delivery

Selling Units:
Single item
Single package size:
90X40X70 cm
Single gross weight:
68.0 kg
Package Type:
wooden case
Lead Time:
Quantity(Set)1 - 12>12
Est. Time(days)7To be negotiated
Product Description

1: What kind of drilling work can it do?
Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells.


2: What are the max. depth and the max. diameter of holes allowed for this drill rig?
Max.300mm diameter or Max.100m depth are available. Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.


3: What kind of working geology is OK ?
Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits.


4: What is your advantage over this drill?
Economical and worthy to owned by any family. Easy operate and maintain by only two workers.

Parameter

XY-1 Model Drilling Rig Parameter

Max. Drilling depth :100m
Max. Hole diameter :Φ75--Φ300mm
End hole diameter :75mm
Drill pipe diameter: 42/50mm
Drilling angle :90°-75°
Weight: 500kg
Size : 1640*850*1340mm

Engine Data

Diesel Engine Model: ZS1105 (18HP)
Rated Power: 13.3KW
Rated Speed: 2200r/min
Electric Motor Model: Y132M-4
Rated Power: 7.5KW
Rated Speed: 1440r/min



Spindle

Spindle Speed : 142/285/570 r/min

Spindle Stroke : 450mm
Spindle Max Pressure : 14.7KN
Spindle Lifting Force : 24.5KN



Hoist

Max. Lifting Force : 10KN
Reel Caliber Caliber : Φ140mm
Reel Caliber Speed : 168,81,42r/min
Tightrope caliber:  Φ9.3-Φ12mm



Oil Pump

Model : YBC-20/125
Flow : 20ml/r
Rated Speed : 1500r/min
Rated Pressure : 12.5Mpa

Detailed Images
Related Products

Track mounted drilling rig

More type of hydraulic drilling rig

DTH Drilling Rig

High efficiency Rock driller

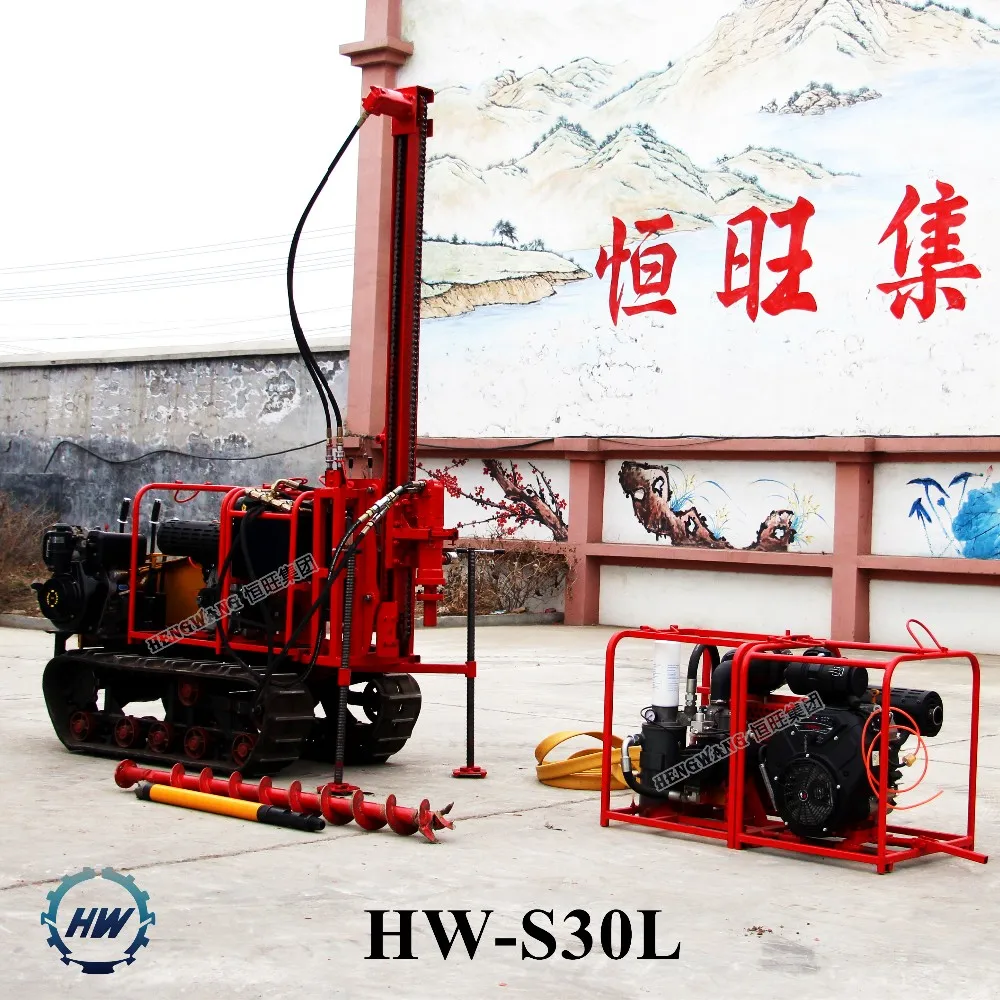

HW-S30 Drilling rig
