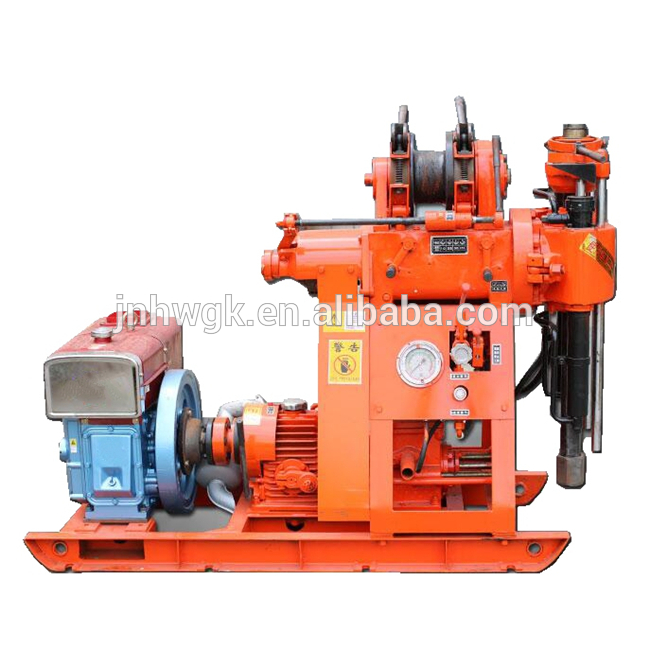

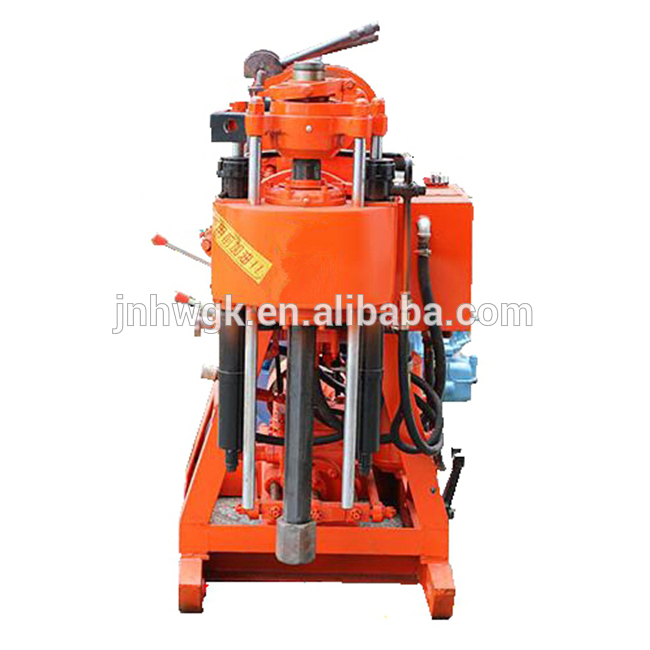

Max 100m Depth XY-1 Model Portable Water Well Rock Drilling Rigs For Sale

Click on the image to view the original image

Product：	views：3Max 100m Depth XY-1 Model Portable Water Well Rock Drilling Rigs For Sale
Branch：	HWGK
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:25

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: XY-1

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 13.3KW

Dimension(L*W*H):: 1640*850*1340mm

Weight:: 500kg

Certification:: ISO9001

Product name:: Water Well Drilling Rig

Max. Drilling depth:: 100m

Max. Hole diameter:: 75--300mm

End hole diameter:: 75mm

Drill pipe diameter:: 42/50mm

Drilling angle:: 90°-75°

Diesel Engine Model:: ZS1105 (18HP)

Rated Power:: 13.3KW

Rated Speed:: 2200r/min

Oil Pump Model:: YBC-20/125

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 1500 Set/Sets per Month Water Well Drilling Rig

Packaging & Delivery

Packaging Details: Export Standard Box

Port: Qingdao Port

Lead Time:: Within 7 days

Product Description

1: What kind of drilling work can it do?
Mainly applies to drill wells for farm irrigation wells, garden irrigation wells, drilling water wells, geothermal wells.

2: What are the max. depth and the max. diameter of holes allowed for this drill rig?
Max.300mm diameter or Max.100m depth are available. Here we sincerely inform that the final depth and diameter will subject to your special local working strata and drilling experience.

3: What kind of working geology is OK ?
Soil, sandy, clay, sediment, soft rocks, etc. Certainly, the special strata need different drilling bits.

4: What is your advantage over this drill?
Economical and worthy to owned by any family. Easy operate and maintain by only two workers.

Parameter

XY-1 Model Drilling Rig Parameter

Max. Drilling depth :100m
Max. Hole diameter :Φ75--Φ300mm
End hole diameter :75mm
Drill pipe diameter: 42/50mm
Drilling angle :90°-75°
Weight: 500kg
Size : 1640*850*1340mm
