Small Portable Water Well Core Drilling Rigs Machine For Sale In Pakistan

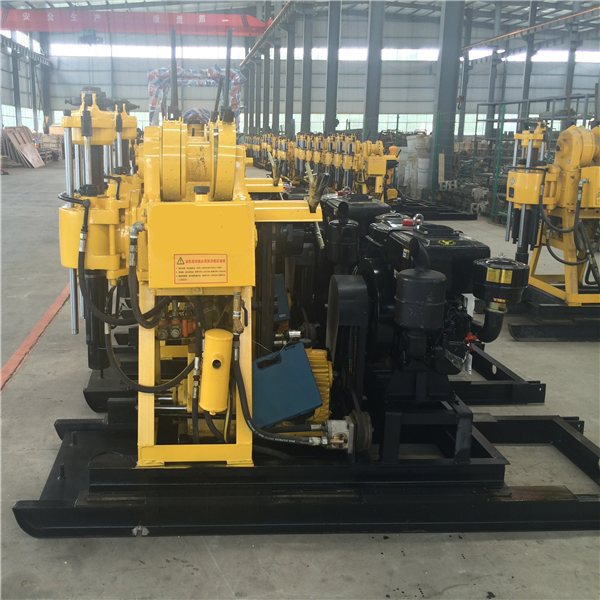

Click on the image to view the original image

Product：	views：3Small Portable Water Well Core Drilling Rigs Machine For Sale In Pakistan
Branch：	HengWang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:26

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: China

Brand Name:: HengWang

Model Number:: HWD-230

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 15/2200kW/r/min

Dimension(L*W*H):: 2700*950*1770mm

Weight:: 1150KG

Certification:: ISO9001

Product name:: Diesel Water Well Drilling Rig

Max.Drilling depth:: 230m

Max. Hole diameter:: 75mm-300mm

Final hole diameter:: 75mm

Driving lever:: 53/59*4200mm

Drill pipe diameter:: 50/60mm

Drilling angle:: 90°-75°

Mud Pump:: BW-160

Max. Displacement:: Diesel engine160L/min

Max. Pressure:: 1.3Mpa

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 150 Set/Sets per Month Water Well Drilling Rig

Packaging & Delivery

Packaging Details: Wooden Box

Port: Qingdao Port

Lead Time:: Within 7 days

Product Description

HW-230 hydraulic drilling rig is a new type of core drilling rig which is developed especially to meet the need of various drilling process mainly in diamond drilling, the power machine of which can be either motor ordiesel engine.

This drilling righas the following advantages:

1). The drill can meet the various high efficiency drilling process requirements such as the diamond cable, concussion turning, orientation drilling and reverse circulation core-drilling.

2). The drill can be run with high reliability

Working Video Link:

https://www.youtube.com/watch?v=pH6phHAfE9Y&feature=youtu.be

Technical Parameter

Unity Machine Parameter
Max. Drilling depth	230m
Max. Hole diameter	Φ75--Φ300mm
End hole diameter	75mm
Driving lever	53/59*4200mm
Drill pipe diameter	50/60mm
Drilling angle	90°-75°
Power (diesel engine)	15/2200kW/r/min
Weight	1150kg
Size	27009501770mm
Vertical Shaft
Vertical Spindle speed	64/128/287/557 r/min
Vertical stroke	450mm
Hoist
Single rope lift	24KN
Single rope winding speed	0.12 0.22 0.49 0.95m/s
Drum Diameter	Φ140mm
Diameter of wire rope	Φ13mm
Wire rope capacity	35m
Mud Pump
Model	BW160
Flow	160L/min
Max. Pressure	1.3Mpa
Water inlet diameter	φ51mm*4.5m
Water outlet diameter	φ32mm*6m
