Portable K1260 Gasoline Steel Railway Track Rail Cutting Machine

Click on the image to view the original image

Product：	views：3Portable K1260 Gasoline Steel Railway Track Rail Cutting Machine
Branch：	HENGWANG
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:26

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HENGWANG

Model Number:: HW

Voltage:: rail cutting machine

Rated Power:: 5.9 kW

Dimension(L*W*H):: 800*450*560mm

Weight:: 20.5 Kg

Certification:: ISO

engine:: Gasoline

cutting time:: 80S

rail cutting machine factory:: Hengwang

rail cutting machine color:: yellow

rail cutting machine condition:: new

Name:: rail cutting machine

Cutting material:: rail

rail cutting machine weight:: 20.5 KG

Maximum cutting depth:: 125/145 mm

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 6000 Piece/Pieces per Month K1260 rail cutting machine

Packaging & Delivery

Packaging Details: rail cutting machine packing within wooden case

Port: Qingdao,Tianjin,Dalian,Xamen

Lead Time:: Shipped in 2 days after payment

Product Description

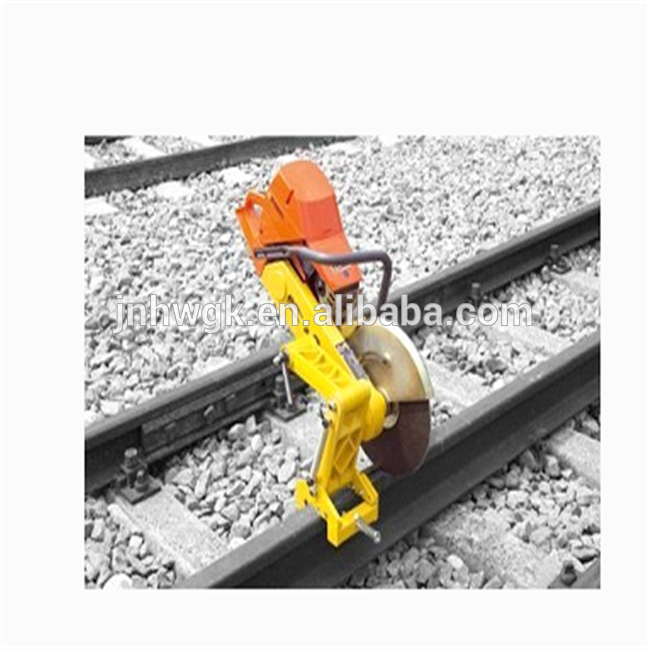

K1260 Rail Steel Sawing Cutting Machine

Application:

Special tool for cutting off rail in railway construction, maintenance or emergency construction.
Feature:
1.Gasoline driven, strong adaptability to an open working environment.
2.Small volume, light weight, and portable.
3.Simple clamping and convenient operation.
4.Large matching power and quick cutting speed.
5.High precision of positioning, good quality of cutting section.
Parameter:
Engine:K1260,Air cooling,2 stroke
Power:5.8KW
Stroke:42mm
Cylnder displacement:119cm3
Cylinder inner pipe diameter:60mm
Unload speed:2700rpm
Capacity of tank:2.5L
Weight:20.5kg
Blade:
Blade diameter:350/400mm
Blade bore diameter:25.4mm
Max cutting depth:125mm
Weight:20.7kg

product detail

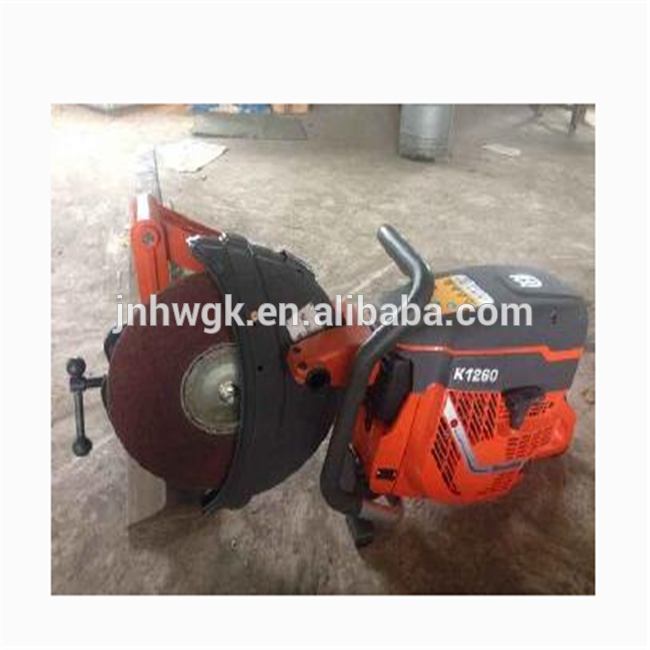

K1260 rail cutting machine

Engine:K1260,Air cooling,2 stroke
Power:5.8KW
Stroke:42mm
Cylinder displacement:119cm3
Cylinder inner pipe diameter:60mm
Unload speed:2700rpm
Capacity of tank:2.5L
Weight:20.5kg

Main technical parameters

1.Petrol Engine:6.6KW /4.8KW
2.Revolution: 5100RPM/ 3600RPM
3.Scope of application: 43kg/m—75kg/m
4.Cutting time: 80-100s/ per rail
5.Cutting accuracy:
Verticality difference≤0.5mm;
Flatness difference ≤0.35mm;
6. Machine weight: 45kg
7.Dimension (L*W*H): 800*450*560mm
