Product Application

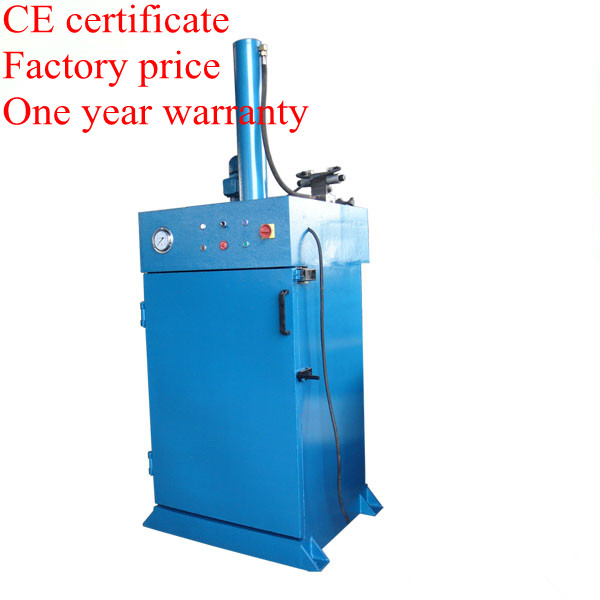

(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designedas vertical structure, hydraulic transmission, electrical control and manual binding.
(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers, and the bale can be binded into “---” and“#” shape

Technical  Parameter

ModelHW30
Hydraulic Power(Ton)30
Packing Size(L*W*Hmm)760*760*(150-900)
Feed Opening Size(L*W*Hmm)760*760*1000
Capacity(Drums/Hour)40-50
Voltage(Customizable)380V/50HZ/3 Phase
Power(KW/HP)5.5KW/7.5HP
Machine Size(L*W*Hmm)960*1000*2850
Machine Weight(KG)1000
