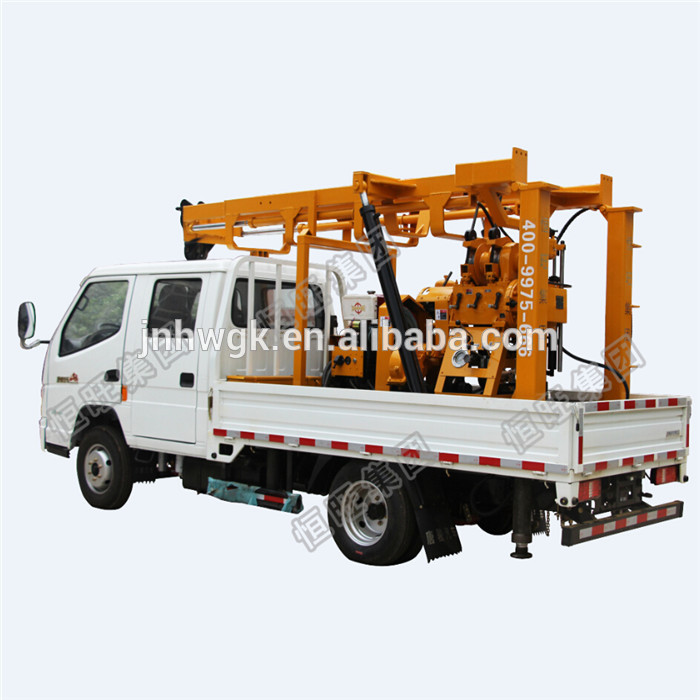

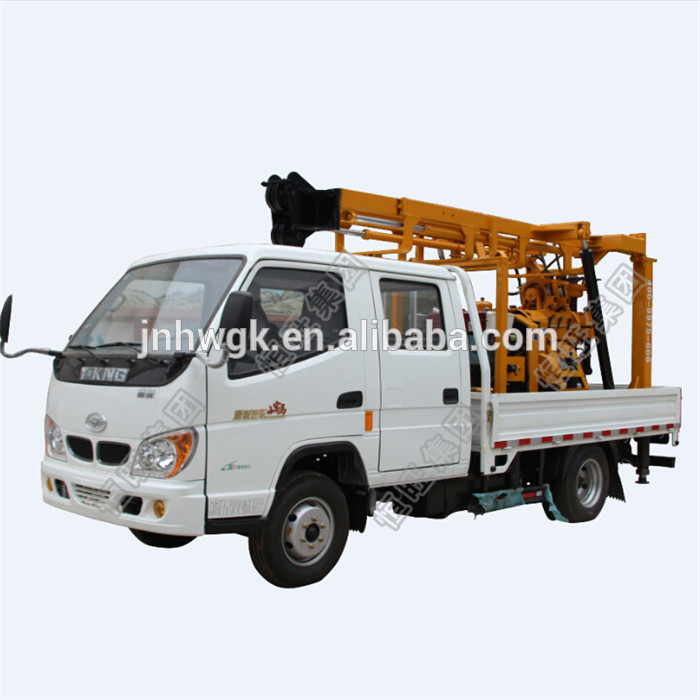

XY water well drilling and rig machine
| Item | Number | |
|---|---|---|
| Drilling method | Rotary | |
| Drilling depth | 200meter | |
| Drilling hole diameter | 75mm-300mm | |
| Power | 15 KW 22HP | |
| Rig working outside size | Length | 5995mm |
| Width | 2060mm | |
| Height | 7500mm | |
| Rig weight | 1500kg | |
| Drilling Kelly | 53/59*4 meter | |
| Drilling rod | 50mm | |
| Drilling bit | 75mm-300mm | |
| Spindle | 64,128,287,557 | |
| Hoist | Hoist reel | 140mm |
| Single lifting speed | 0.12,0.22,0.49,0.95 | |
| Single lifting force | 24KN | |
| Wire line capacity | 35 meters | |
| Wire line size | 13mm | |
| Mast | Loading capacity | 5T |
| Mast height | 6m | |
| Mast leg | 160×120×6 | |
| Swivel | Max lifting force | 50KN |
| Equipped hoise | 50mm | |
| Mud pump | diameter | |
| Model | BW-160 | |
| Displacement | 160L/min | |
| Working pressure | 1.3Mpa | |
| Reciprocate times | 165 times/min | |
| Truck | Model | OuLingZB1043LSDS |
| Motor mode/ power | LN4D27E3/66KW | |
| Seating capacity | 3+3 | |
Figure photos for rock drilling
Qualification & certification for rock drilling
History order
Welcome to visit our factory
