Home > Products > Double Roll small stone crusher machine with diesel engine price
Double Roll small stone crusher machine with diesel engine price
Click on the image to view the original image
Product： views：3Double Roll small stone crusher machine with diesel engine price
Branch： HW
Type： Hammer Crusher
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:26
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Hammer Crusher
Application:
Mining
Motor Type:
DC Motor
Power(W):
30kw
Capacity(t/h):
5-20tph
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
hw
Dimension(L*W*H):
1.5*1*1.5
Weight:
800
Certification:
ISO
Name:
Small stone crusher
Color:
yellow or red
Roller length:
250mm
Roller diamete:
400mm
Warranty:
One year, 1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month bottle crusher
Packaging & Delivery
Packaging Details
Small stone Hammer crusher packing within wooden case
Port
QIngdao , Tianjin , Shanghai
Lead Time:
Within five days
Product Description

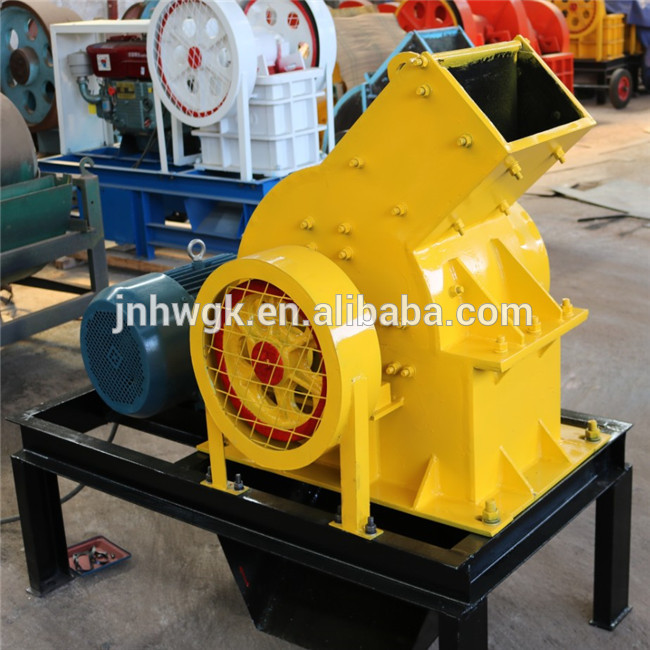

Small stone hammer crusher

Hammer crusher is based on crusher hammer high-speed impact of the production of broken materials. It can achieve a feeding molding, with high efficiency, energy saving and environmental protection features. Hammer crusher can adjust the particle size of the material, coarse, medium, fine, a variety of specifications complete; no sheet, no smooth body, multi-angle multi-edge to ensure compression strength. According to different production needs, hammer crusher model is not the same, such as heavy hammer crusher and so on.

Model
Feed size (mm)
Out size (mm)
Production (t/h)
Power (kw)
Weight (kg)
400×300
≤100
≤10
 5-10
11
800
600×400
≤120
≤15
10-20
18.8
1500
800×600
≤120
≤15
 20-30
55
3700
1000×800
≤200
≤15
34-54
115
7900
1000×1000
≤200
≤15
 30-80
132
8800
1300×1200
≤250
≤19
70-170
240
13600
1400×1400
≤250
≤20
120-210
280
17500

Advantages：

1 hammer crusher bearing box all made of cast steel, each axle with four screws. Change the previous generation of hammer crusher products due to loose screws caused by bearing box wear a major security risk. Make the same equipment more scientific and more applicable.

2, the crushing ratio, under normal circumstances for the 10-25, the high can reach 50. High production capacity, product uniformity, excessive phenomenon, low energy consumption per unit of product, simple structure, light quality equipment, easy operation and maintenance. From the energy consumption and efficiency of the study, the equipment broken grinding efficiency, power consumption is small, greatly improving the production efficiency and reduce the cost of production of materials.


Mainly used for crushing ore, brick, coal, lime, coke powder, salt and other minerals crushing

Certifications
Detailed Images






Machine Parts







                                          Machine Parts

Packing & delievery

According customer need


                          Packing within wooden case
