Warehouse Pallet Stacker Semi Electric Forklift

Click on the image to view the original image

Product：	views：3Warehouse Pallet Stacker Semi Electric Forklift
Branch：	HW
Type：	Manual Pallet Truck
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:26

Product Details

Overview

Quick Details

Condition:: New

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Type:: Manual Pallet Truck

Power Souce:: AC Motor

Rated Loading Capacity:: 2000kg

Max. Lifting Height:: 2000mm

Min. Lifting Height:: 85mm

Fork Length:: 1070mm

Fork Width:: 950mm

Overall Dimensions:: 2100*1000mm (L*W)

Certification:: ISO

Model:: electric forklift

Max Loading:: 2T

Max lifting height:: 1.6M

Fork size(L*H):: 1000*180mm

Height:: 1.94m

Battery:: 12V 120A

Charing voltage:: 220V

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 1000 Set/Sets per Month electric forklift

Packaging & Delivery

Packaging Details: Exportstandardpackage

Port: QINGDAO

Lead Time:: 3 days

Product Description

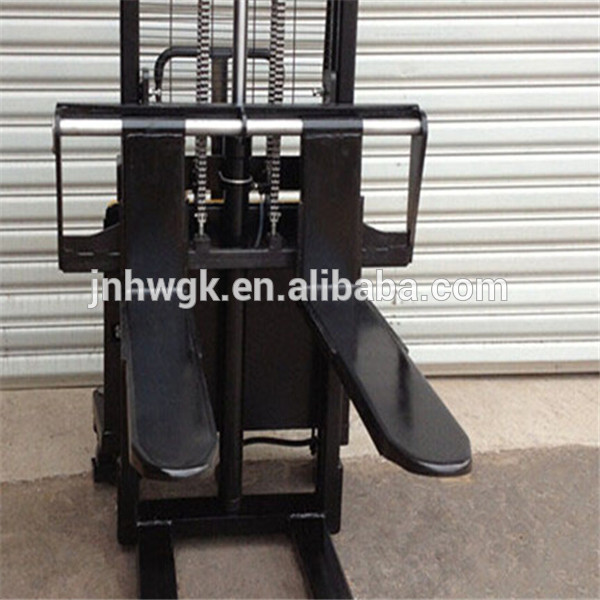

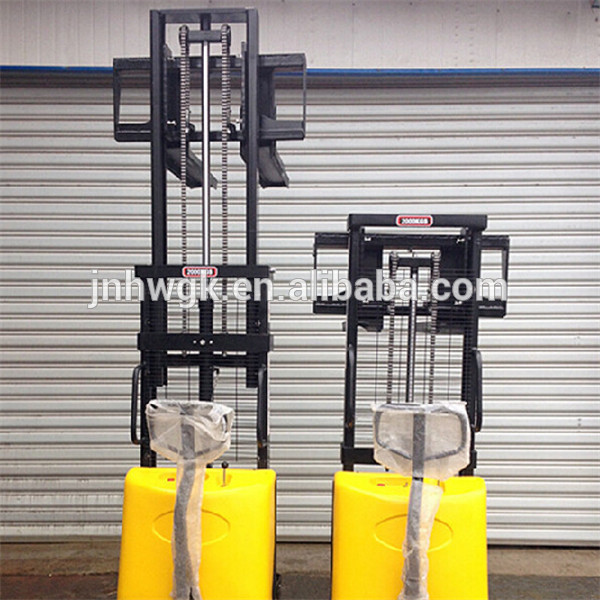

Electric Stacker Semi Electric Stacker Semi-electric constructed mainly by mast steel batteries, motors, hydraulic station, rod, chains, wheels, handles and other component parts!
Works semi-electric stacker lift when the lift rod through the manipulation, control pump station, drive straight through the inner cylinder, an outer door frame and the carriage relative motion, so that the forks rise and fall. Semi-electric Stacker push through human walking, use special technology nylon or polyurethane wheels, wear, pressure, mute manual control, flexible operation, light. Steering steering handle manipulated by the steering mechanism acting on both sides of the steering wheel is rotated more lightweight, flexible, therefore, turned directly to the steering handle to the required angle. Parking brake by foot brake operation, the brake acts directly on the caster, brake brakes immediately play the role.

Model	HW-2
Max Loading	2T
Max lifting height	1.6M
Fork size(L*H)	1000*180mm
Height	1.94m
Working max height	3.38m
Max width	950mm
Min width	360mm
Fork min height	85mm
Battery	12V 120A
Charing voltage	220V
