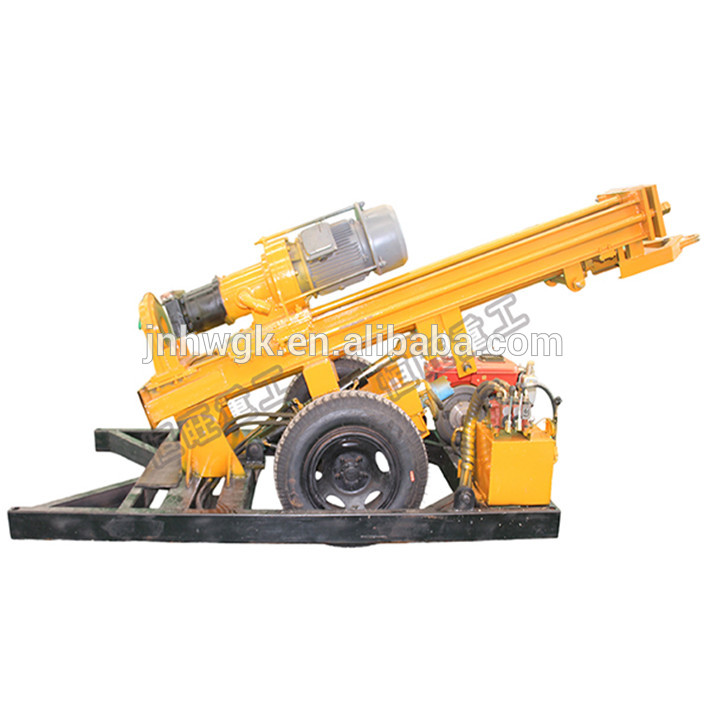

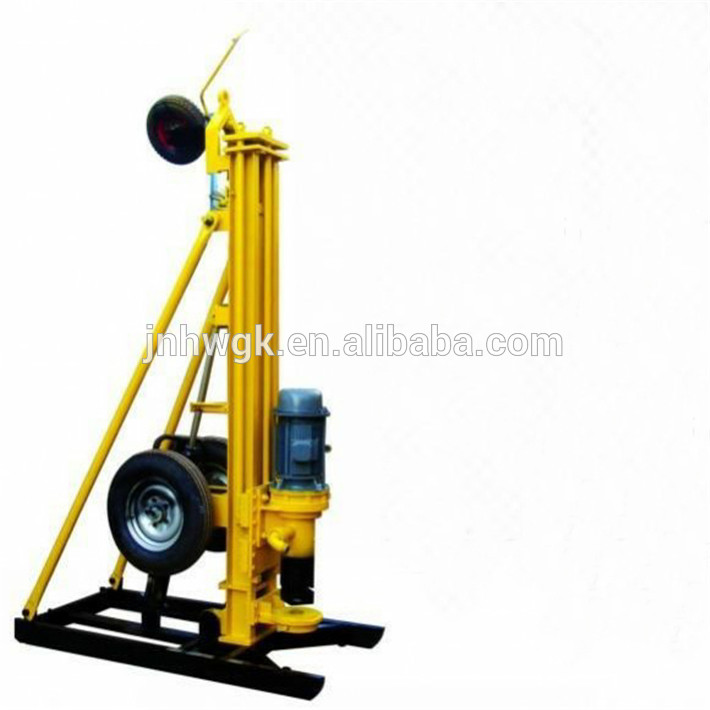

Pneumatic Type DTH Water Well Drilling Rig Electric Down The Hole Hammer Drill Rig

Click on the image to view the original image

Product：	views：3Pneumatic Type DTH Water Well Drilling Rig Electric Down The Hole Hammer Drill Rig
Branch：	HW
Type：	pneumatic drilling rig, pneumatic drilling rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:26

Product Details

Overview

Quick Details

Condition:: New

Type:: pneumatic drilling rig, pneumatic drilling rig

Power Type:: Diesel, air compressor

Place of Origin:: Shandong, China

Brand Name:: HW

Usage:: pneumatic drilling rig for hard rock

Voltage:: pneumatic drilling rig

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 2330kg

Certification:: BV,SGS

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Maximum diameter:: 200mm

Drill Deep:: 245m

drill rod caliber:: 50mm

spindle stroke:: 450mm

end hole caliber:: 75mm

Working air pressure:: 1.05-4.5MPa

Supply Ability

Supply Ability:: 1000 Set/Sets per Month drilling rig

Packaging & Delivery

Packaging Details: drilling rig Standard wooden case packing

Port: QINGDAO,XIAMEN,TIANJIN,NINGBO

Product Description

Pneumatic drilling rig Parameter

small portable borehole drilling machines DTH water well drilling rig price, suitable for workers, civil drilling, geothermal drilling, with a large diameter drilling, deep drilling, mobile and flexible application of geographical advantages.

SPECIFICATIONS FOR HW-200 PNEUMATIC DRILLING RIG

Drilling diameter	100-254 MM	Drilling depth	200M
Drilling direction	45-90 degree	One-time drilling length	1500MM
Drilling rotary speed	52	Working pressure	1.45-2.5Mpa
Air Consumption	21 M3/MIN	Weight	1.8 Ton

Main Features

1) Safe and stable crawler
2) Centralized control system
3) Easy-to-maintain hydraulic pumps
4) Safe and stable hose structure
5) Powerful and strong push and return system
6) Flexible operation of drill arm
7) Tertiary air purification to protect the protect the machine
