Home > Products > HYZ4 Portable Oxygen Respirators for sales
HYZ4 Portable Oxygen Respirators for sales
Click on the image to view the original image
Product: views:3HYZ4 Portable Oxygen Respirators for sales
Branch: HW
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:26
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
HYZ series
color:
orange
name:
mining self rescuer, oxygen self rescuer
weight:
2.5kg
type:
HYZseries
delivery:
within 3 days
payment:
tt
material:
pc
capacity:
1.0L
duration:
≥4L
dimension:
580mm*380mm*200mm
Supply Ability
Supply Ability:
10000 Set/Sets per Quarter oxygen respirator
Packaging & Delivery
Packaging Details
carton box
Port
qingdao
Lead Time:
within 3 days

Chemical oxygen self-rescue respirator for sale



1. Appliance:

• Adopt spherical larger vision mask, have permanent anti-fog, and anti-scrape wear resisting ability, can keep the mask visual effect for a long time.

• Adopt advanced exhaust structure design to save gas source, which can guarantee the use time is better than the rating

• Gasbag with high quality material, reduce the air resistance to deformation, make breathing easier.

• Large cross-section hose breathing, breathing more comfortable.

• Special structure proportional valve, make the oxygen supply more stable.

• Unique cooler lid design improvements, don"t need to uncover respirator shell, ice can be easily replaced.

 Harness can be easily adjusted to fit any size user.

2. Features:

• The product is designed and produced strictly according to the industry standard ‘Isolated Compressed Oxygen Self-rescuer’. It is safe and reliable.

• The product applies the high-pressure oxygen tank filled by medical oxygen. It can supply enough oxygen.

• The oxygen tank is equipped with relief valve and security valve, which makes it safe to use.

Product Parameter:

Main specification

Item

Specification

Type

HYZ-2

HYZ-4

Duration

120 min

240 min

Working pressure for oxygen bottle

20 MPa

20 MPa

Capacity for oxygen bottle

1.4L

2.4L

Oxygen storage

280L

480L

Dimensions

518370160mm

560370160mm

Weight

11 Kg

12Kg

Breathing rate

30L/min

Exhaling resistance

(0~600)Pa

Inhaling resistance

700Pa

Fixed Oxygen-supplying

(1.4~1.7)L/min

Manual or automatic oxygen-supplying

80L/min

Start pressure for Auto-supplying valve

(10~245)Pa

Inhaling Carbon dioxide concentration

1%

Inhaling oxygen concentration

>21%

Warning pressure for alarm

(4~6)MPa

Warning time for alarm

(30~60)s

Sound level

80dB

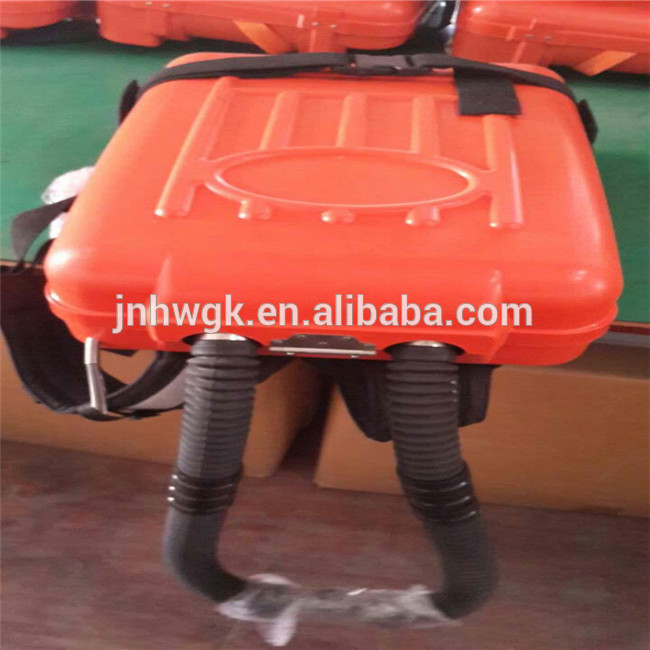

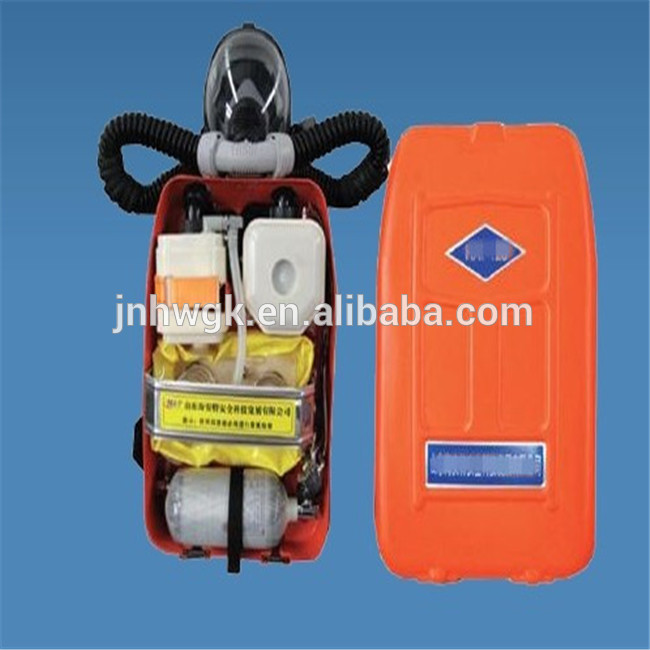

Real product show
