Rebar Locator Rebar Scanner/Concrete Reinforcement Detector
1. The application field
Bridges, tunnels, such as wall reinforcement concrete structure engineering position, protective layer thickness, steel bar, steel bar distribution and the diameter of the probe;Can also be used for non ferromagnetic medium iron magnet (such as wire and pipeline) and distribution of detecting probe.
Concrete structure construction quality acceptance testing;
To evaluate the safety and durability of the building.
To evaluate the old structure, the transformation of reinforcement quantity detection;
Within the floor or wall on cable, plumbing pipes and other distribution and to detect.
parameters
Number | Item | SPEC | |
1 | Bar diameter application range(mm) | Φ6 – Φ50 | |
2 | maximum value permissible error of Bar diameter | ≤±1 | |
3 | Protective layer thickness measuring range |
| |
The first measuring range (mm) | 6 - 90 | ||
The second measuring range (mm) | 7-180 | ||
4 | The maximum error of reinforced protective layer thickness test value |
| |
The first measuring range (mm) | The second measuring range (mm) |
| |
6 - 59 | 7 - 79 | ≤±1 | |
60 - 69 | 80 - 119 | ≤±2 | |
70 -90 | 120 - 180 | ≤±4 | |
5 | Work environment condition |
| |
Work temperature ℃ | -10 - +40 | ||
relative humidity RH | < 90% | ||
6 | power supply mode | Alkaline cell X 6 | |

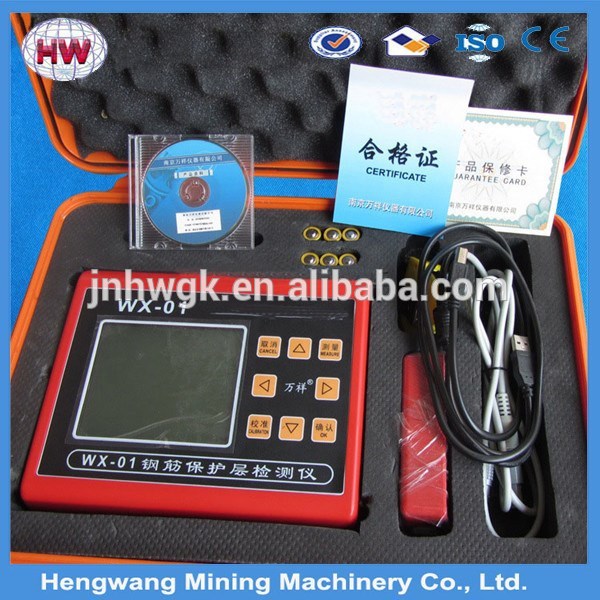

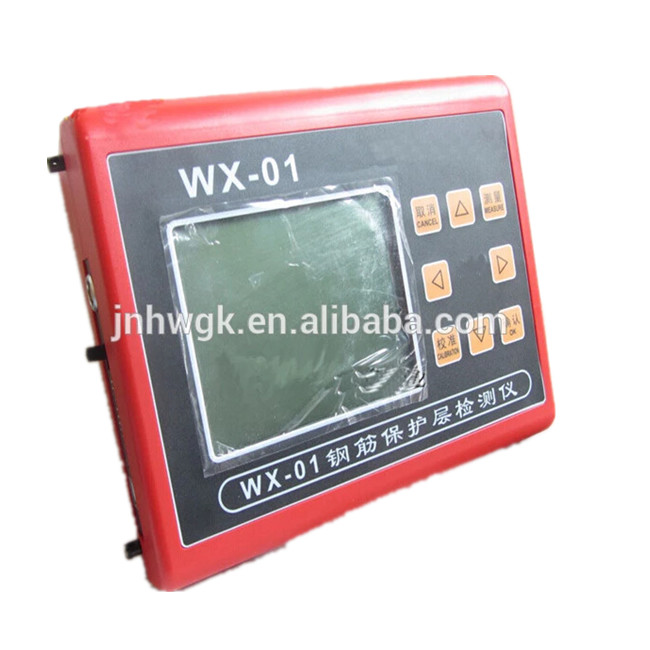

products show
