Home > Products > High speed Automatic steel bar bender /rebar bending machine

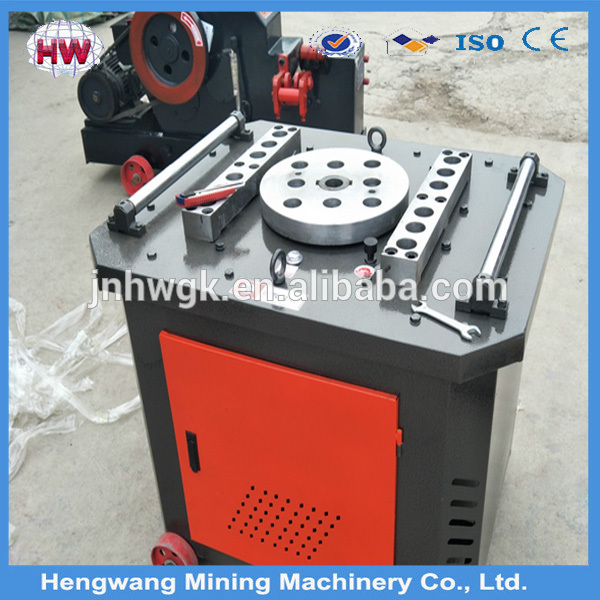

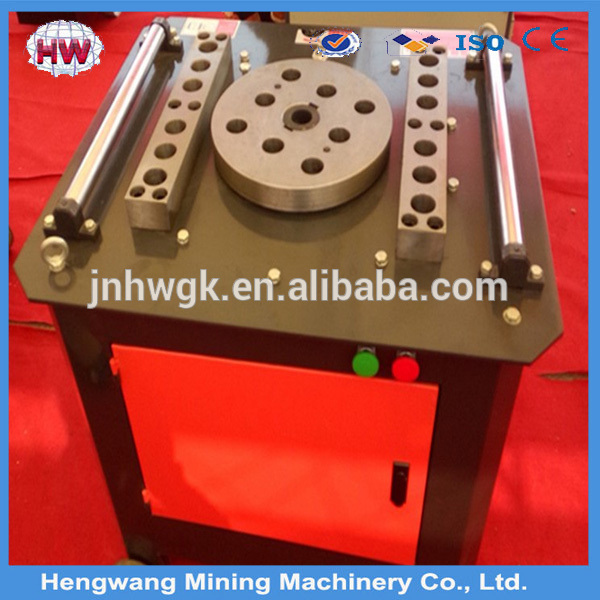

High speed Automatic steel bar bender /rebar bending machine
Click on the image to view the original image
Product： views：3High speed Automatic steel bar bender /rebar bending machine
Branch： HW
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:26
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HW
Model Number:
GW40
Material / Metal Processed:
Carbon Steel
Automation:
Automatic
Certification:
ISO 9001:2000
Name:
steel bar bending machine
Type::
bending machine
Bending Speed(times/min)::
25-30
Work Disk Diameter (mm)::
380
Motor Power(kw)::
3
Voltage & Frequency(v/hz)::
380/50
Rotation Speed(r/min)::
2880
Dimension(mm)::
850*700*750
Net Weight(kg)::
450
Automation::
Automatic
After-sales Service Provided:
No overseas service provided
Extra Services:
Cut To Length
Power:
CNC
Machine Type:
Beading Machine
Raw Material:
Steel Bar
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Qingdao port
Lead Time:
within 3 days

   High speed Automatic steel bar bender /rebar bending machine



Bar bending machine is one kind of steel bar processing machine,widely used construction building field. It constitued by the motor, gear, operation disc, breaker and machine body. This machine is able to bend ribbed steel bar diameter from 6mm to 40/50/6070 mm, with various shapes using in construction project.

Parameters



ModelGW40GW50GW60GW70
Bending DiameterPlain carbon steel ≤Φ40mm≤Φ50mm≤Φ60mm  ≤Φ70mm
Deformed steel≤Φ32mm≤Φ40mm≤Φ50mm                ≤Φ65mm
Operation disc specΦ350mmΦ450mmΦ500mm600mm
Axis Rotate speedHigh speed9.63r/min2.685r/min8r/min 7r/min
Low speed4.68r/min4r/min 3r/min
Motor power3KW-4p4KW-4p5.5KW-6p 5.5kw-8p
Working voltage220V~440V220V~440V220V~440V  220V~440V
Motor Rotate speed1440r/min1440r/min720r/min 360r/min
Overall Dimension930x730x710mm1060×810×720mm1080×850×740mm 1.2x1x0.95
Whole Weight350kg450kg680kg 980kg



 Photos
