Product Application

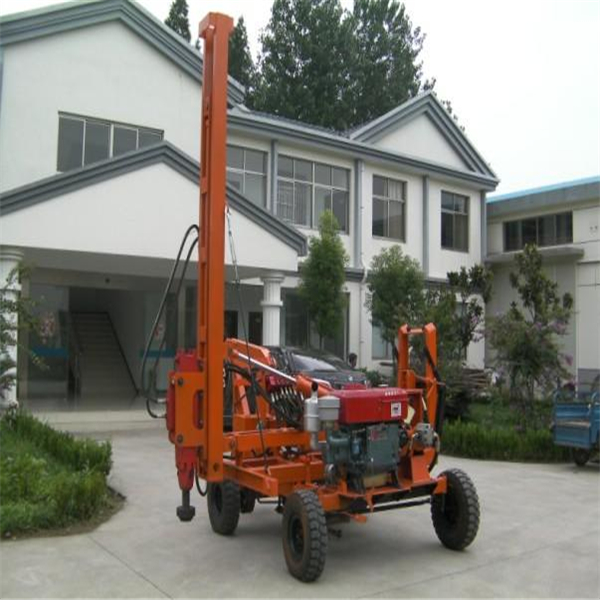

HZH-260C Model Wheeled Pile Driver is designed to install and maintain highway anti-collision guard rails and solar posts,and is especially applicable for driving guardrail posts at newly constructed highways.It is also used for the installation of photovoltaics(PV),solar cells and panels.

With the same hydraulic system for extracting poorly driven or incorrectly positioned posts in road maintenance work,it is a professional machine for the extracting of posts from any surface condition.

This equipment can drill holes into concrete, rock,granite and other very hard road materials,and then easily install the posts.

Technical   Parameter

model  HZH-260C
Diesel engine power ZH490Y4 (40KW, 2400r / min)

Battery 12V 45AH 325A

Gear pump    BN-F550 (displacement: 50 ml / r, pressure: 20 MPa)

Cycloidal motor ZMV-800 (displacement: 800ml / r, pressure: 20Mpa)

Hydraulic hammer 75 #

Drill rod diameter 75mm

Tires  CL621, 7.00- (outer diameter: 570 mm)

Pile stroke  2280mm

Height of pile  2600mm

Tire wheelbase (front and rear direction)  2135mm

Tire spacing (left and right direction)  1620mm

Overall dimensions (non-working)  2160 * 2900 * 2780

Machine shape (working state)  2160 * 2900 * 4060

Hydraulic system pressure     20Mpa

Rotation angle (front and rear)  ± 18 °

Rotation angle (left and right)  ± 15 °

Machine quality (Kg)  3.6T

Main Features

HZH-260C type hydraulic pile driver is a kind of highway fence steel pipe pile transportation equipment, the machine adopts diesel power, full hydraulic mechanical transmission, with high efficiency, easy to shift, high precision, durable, time and labor Features, especially for highway field construction.
