- Piling Speed(m/min):
- 1-2m/min
- Efficiency:
- High Efficiency
- Condition:
- New
- Place of Origin:
- China
- Brand Name:
- HWGK
- Model Number:
- HWZGX-390L
- Weight:
- 5.8 tons
- Dimension(L*W*H):
- 4650*2150*2700mm
- Certification:
- ISO9001
- Product Name:
- Hydraulic Pressure Pile Driver
- Multi functions:
- Drilling, Pressing,Pulling Piles
- Effective press pile stroke:
- 0-4000mm
- Rod Diameter:
- 0-400mm
- Duplex Gear Pump Displacement:
- 40ml/r
- Hydraulic System Pressure:
- 20Mpa
- Diesel Engine:
- 80kw
- Rotation Angle:
- 360°
- Dimension:
- 4650*2150*2700mm
- Walking Motor Total Emissions:
- 1575ml/n
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Supply Ability:
- 80 Set/Sets per Month Pile Driver
- Packaging Details
- No Packing
- Port
- Qingdao
- Lead Time:
- Shipped in 7 days after payment

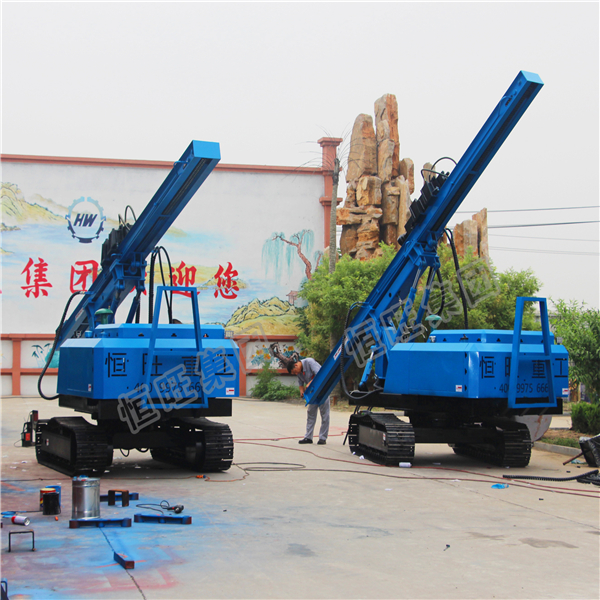

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.
Advantages:
1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.
2 Parts for repairs are readily available.
3 Interchangeablity of parts is supported by all models.
4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.
5 Supplying power and fuel to these system is very feasible at construction sites.

Model | HWZGX-390L |
Hammer Model | 390 |
Rod Diameter | 0-400mm |
Duplex Gear Pump Pressure | 20Mpa |
Duplex Gear Pump Displacement | 40ml/r |
Hydraulic System Pressure | 20Mpa |
Overall Machine Weight | 5.8T |
Diesel Engine | 80kw |
Rotation Angle | 360° |
Rotation Semi Diameter | 1925mm |
Effective Press Pile Stroke | 0-4000mm |
Dimension | 4650*2150*2700mm |
Track Shoe | 350mm |
Walking Motor Total Emissions | 1575ml/n |
Walking Motor Rated Pressure | 18Mpa |
Walking Motor Output Torque | 4300n.m |
Walking Motor Rotation | 50r/min |







In August of 2016 ,according to Mongolia customer"s request,our company sent technicist to Ulaanbaatar,Mongolia to offer the Oversea Service. With our help the progress of the works completed quickly and smoothly,final be highly appreciated by our customer.



Plz chick the photos to know more of them.
