Super Efficient Crawler Type Hydraulic Pressure Static Pile Driver/Mini Mobile Pile Drilling Rig
Click on the image to view the original image
Product: views:3Super Efficient Crawler Type Hydraulic Pressure Static Pile Driver/Mini Mobile Pile Drilling Rig
Branch: HWGK
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 20:26
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
1-2m/min
Efficiency:
High Efficiency
Condition:
New
Place of Origin:
China
Brand Name:
HWGK
Model Number:
HWZGX-390L
Weight:
5.8 tons
Dimension(L*W*H):
4650*2150*2700mm
Certification:
ISO9001
Product Name:
Hydraulic Pressure Pile Driver
Multi functions:
Drilling, Pressing,Pulling Piles
Effective press pile stroke:
0-4000mm
Rod Diameter:
0-400mm
Duplex Gear Pump Displacement:
40ml/r
Hydraulic System Pressure:
20Mpa
Diesel Engine:
80kw
Rotation Angle:
360°
Dimension:
4650*2150*2700mm
Walking Motor Total Emissions:
1575ml/n
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
80 Set/Sets per Month Pile Driver
Packaging & Delivery
Packaging Details
No Packing
Port
Qingdao
Lead Time:
Shipped in 7 days after payment
Video Description
Product Description

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling.


Advantages:

1 Systems are simple; while individual units are robust, repairs to nearly any component can be made by any mechanic.

2 Parts for repairs are readily available.

3 Interchangeablity of parts is supported by all models.

4 Similarities to other machines currently in use by customers ensure that further training in the usage of these tools is unnecessary.

5 Supplying power and fuel to these system is very feasible at construction sites.

Technical Parameter
Model
HWZGX-390L
Hammer Model
390
Rod Diameter
0-400mm
Duplex Gear Pump Pressure
20Mpa
Duplex Gear Pump Displacement
40ml/r
Hydraulic System Pressure
20Mpa
Overall Machine Weight
5.8T
Diesel Engine
80kw
Rotation Angle
360°
Rotation Semi Diameter
1925mm
Effective Press Pile Stroke
0-4000mm
Dimension
4650*2150*2700mm
Track Shoe
350mm
Walking Motor Total Emissions
1575ml/n
Walking  Motor Rated Pressure
18Mpa
Walking Motor Output Torque
4300n.m
Walking  Motor Rotation
50r/min

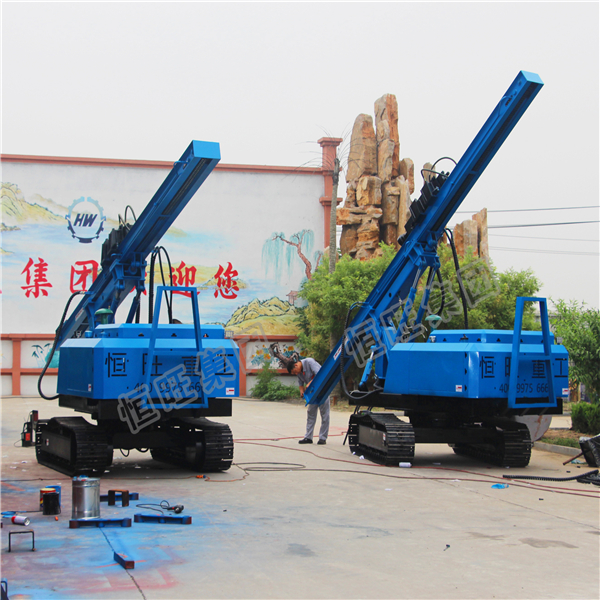

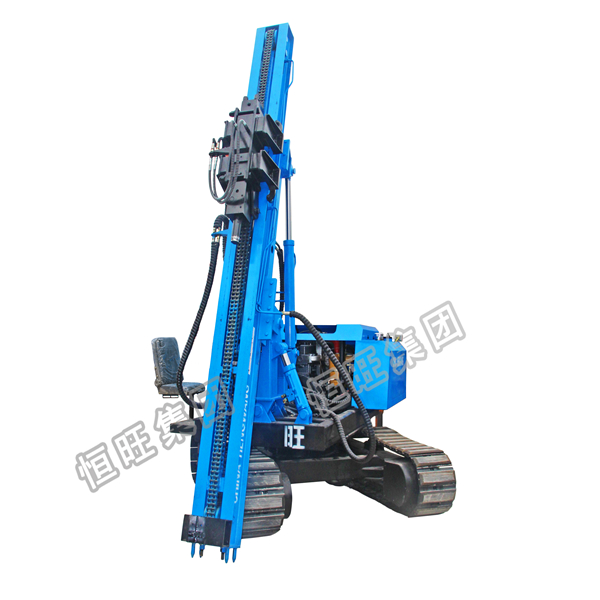

Detailed Image
Oversea Service

In August of 2016 ,according to Mongolia customer"s request,our company sent technicist to Ulaanbaatar,Mongolia to offer the Oversea Service. With our help the progress of the works completed quickly and smoothly,final be highly appreciated by our customer.

Related Products

Guard Rail Pile Driver


             Wheeled Pile Driver


Photovoltaic Solar Spiral Pile Rig


Plz chick the photos to know more of them.
