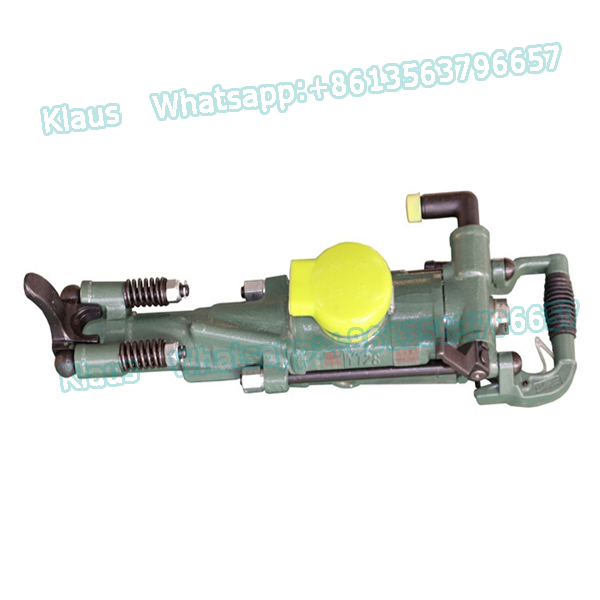

Floor Price !! YT28 Model Pneumatic Portable Drilling Machine/Small Air Leg Rock Drill For Mining Use

Click on the image to view the original image

Product：	views：3Floor Price !! YT28 Model Pneumatic Portable Drilling Machine/Small Air Leg Rock Drill For Mining Use
Branch：	HWGK
Type：	Pneumatic Rock Drill
Size：	65X40X60 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:27

Product Details

Overview

Quick Details

Applicable Industries:: Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining

Condition:: New

Type:: Pneumatic Rock Drill

Power Type:: Air

Place of Origin:: Shandong, China

Brand Name:: HWGK

Usage:: Coal

Voltage:: Pneumatic

Dimension(L*W*H):: Customized

Weight:: 28kg

Certification:: ISO CE

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas

Name:: Pneumatic Mining Air Leg Rock Drill

Length:: 661 mm

Air Pressure:: 0.63 Mpa

Cylinder Inner Diameter:: 80mm

Air Pipe Inner Diameter:: 25mm

Water Pipe Inner Diameter:: 13mm

Drilling Diameter:: 34-42mm

Drilling Depth:: 5m

Shank:: 22*108mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 65X40X60 cm

Single gross weight:: 68.0 kg

Package Type:: Paper Box

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

YT28 rock drill machine is a kind of high efficiency air leg rock drill machinery.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia is 34-42mm,drill hole depth is 5m.

This machine may match with Model FT160BD short air leg or Model FT160BC long air leg.

Model	7655	7665	YT24	YT27	YT28
Weight	24kg	25.5 kg	24 kg	27 kg	28 kg
Length	628mm	550mm	678mm	668mm	661mm
Air Pressure	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa	0.63Mpa
Cylinder Inner Diameter	76mm	76mm	70mm	80mm	80mm
Air Pipe Inner Diameter	25mm	25mm	25mm	25mm	25mm
Water Pipe Inner Diameter	13mm	13mm	13mm	13mm	13mm
Drilling Diameter	34-42mm	34-42mm	34-42mm	34-42mm	34-42mm
Drilling Depth	5m	5m	5m	5m	5m
Shank	22*108mm	22*108mm	22*108mm	22*108mm	22*108mm
