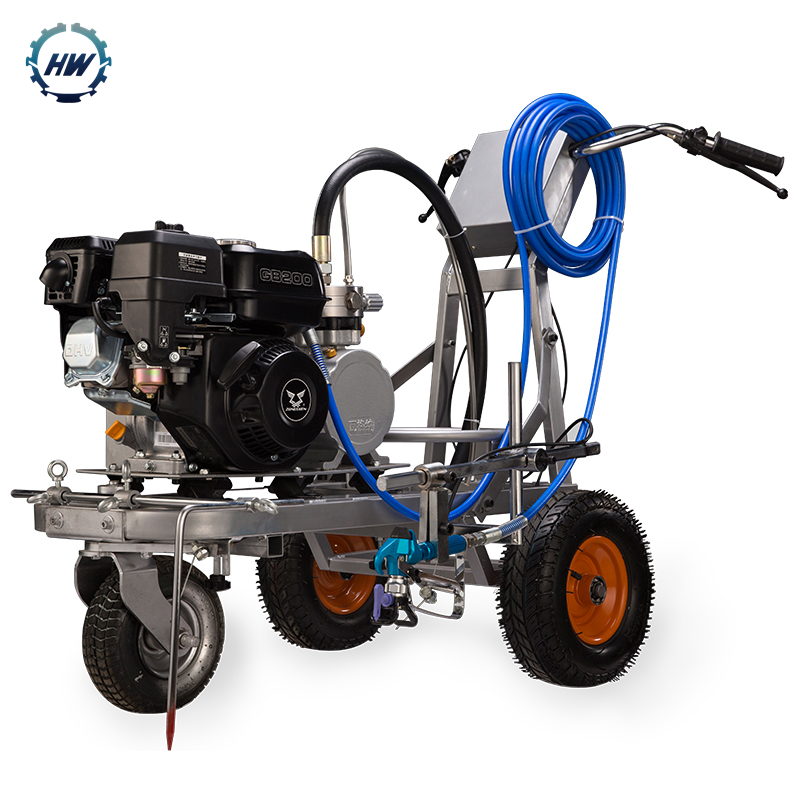

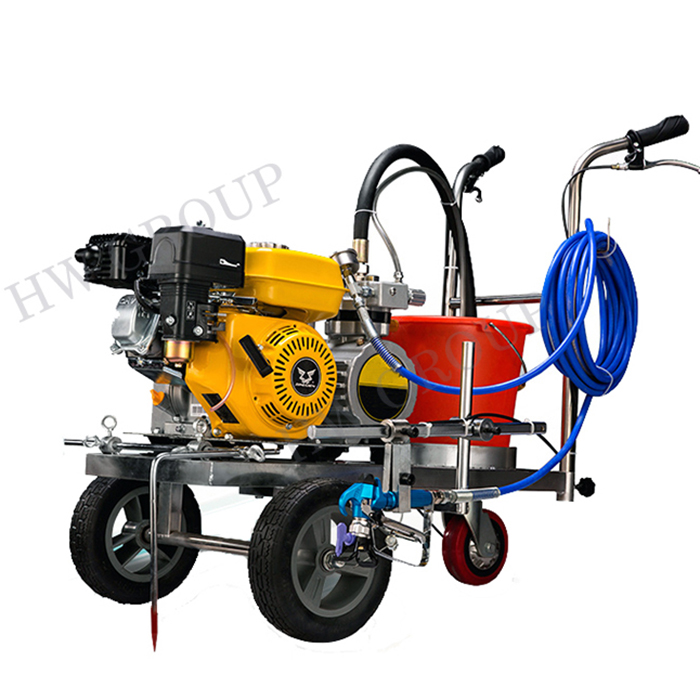

HengWang Road marking mahine
Gasoline engine - Hydrualic Airless Striper
Factory sale-Big order please contact us for cheap price.
The Road Marking Machine has the following features as high flow capacity, wide application scope and easy operation. It is suitable for both the spray of ordinary paint and that of higher viscosity paint, such as oil paint, alkyd resin lacquer, nitro lacquer, epoxy resin lacquer and other kinds of paint.
Structure & Function:
1. Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine has been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high working efficiency.
2. Both sides of the spraying gun are equipped with a paint-limiting plates, ensuring the line free of raw edges. Such plates may be lift through a pulling line in steering, turning flexibly.
3. The spraying gun may be conveniently dismantled to change different nozzles and control the line width, suitable for common airless spraying for marks or labels.
4. It runs by pushing, with convenient turning, reliable orientation, and flexible turning.
Tips:
The direction and speed of the spray gun should be consistent with the direction of the spray. With the uniformity of the vertical layer of the spray fan, the speed of the spray gun should be stable, preferably 300-400/S mm. If the speed is too fast, the coating is too thin and the coating is too thick.
If the gun distance is too small, the pressure of spraying is too large, the impact force is also large, and the burrs are prone to occur. If the gun distance is too large, the spray is too uneven. And the spray width is too large, so that the applied material is partially sprayed too little, and the coating film does not reach the thickness requirement.
Main Features
2,Large flow
3,Markings in appearance
4,Uniform thickness
5,Running light
6,Operation is simple and suitable for all types of marking places at room temperature.
Product Application
HW-HX8 Hand-push road marking machine uses special high precision cast iron marking shoe to ensure that the marking line comes to uniform side and thickness, linear appearance. The glass beads spread complete with automatic speed control buffer devices. The positioner upon back wheel make sure the machine go straight. This machine has the advantage of high quality construction, fast, flexible operation, conveninet maintance and so on. It can be suitable for highway, municipal roads, village or town road, guiding arrows, words, parking lines, factories, etc.
HW-HXJ-01
FOB QINGDAO $777/set
Single Sprayer 0mm~30mm
HW-HXJ-02
FOB QINGDAO $1277/set
Double Sprayer 0mm~60mm
HW-HXJ-01/02
Damping system
Shock absorption structure design
Thickened frame
Smooth body and reduce machine vibration
Sensitive handbrake
The brakes are flexible and the handlebars are easy to grip.
Easy and safe to operatePositioning wheel
Precision positioning wheel, inspired by international first-line design
The card position design does not shake, accurately positioning the straight line
Powerful Engine
Chinese first class engine brand
Strong power and low fuel consumption
Long-term use does not require maintenance
Can change other brands according to customer needs.
Precision pressure gauge
Real-time observation of pressure
Independent positioning ruler
Exclusive design independent positioning ruler with five cm line special design, no flash without gap
Stainless steel pump head
High-quality compression resistance, ensuring that it is not damaged when the pressure is too high
750*420*660mm 70kg/80kg
Factory sale -MOQ is 1 set.
Large order please contact us for dlivery and discount.
We will deliver it within 5 working days after receive your payment.
We will send it to you by Express / Sea.
Package in wooden case.
