diesel Rock Drilling, core drilling Machine

Click on the image to view the original image

Product：	views：3diesel Rock Drilling, core drilling Machine
Branch：	HW
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:27

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HW

Model Number:: HW

Usage:: core drilling machine

Voltage:: Diesel Engine Driven

Power(W):: 13HP

Dimension(L*W*H):: 570*405*1000mm

Weight:: 180KG

Certification:: ISO9001

Model:: Diesel core drilling machine

Color:: red

Max drilling diameter:: 300mm

Max drilling depth:: 1000mm

Working:: Manual

Speed:: 1000r/min

Drill bit:: diamond

Dimensions:: 50mm 100mm 150mm

Material:: diamond

Drilling soil and rock:: Yes

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Quarter Core drilling machine

Packaging & Delivery

Packaging Details: Export wooden case

Port: QINGDAO PORT

Lead Time:: three work days

Poruct Description

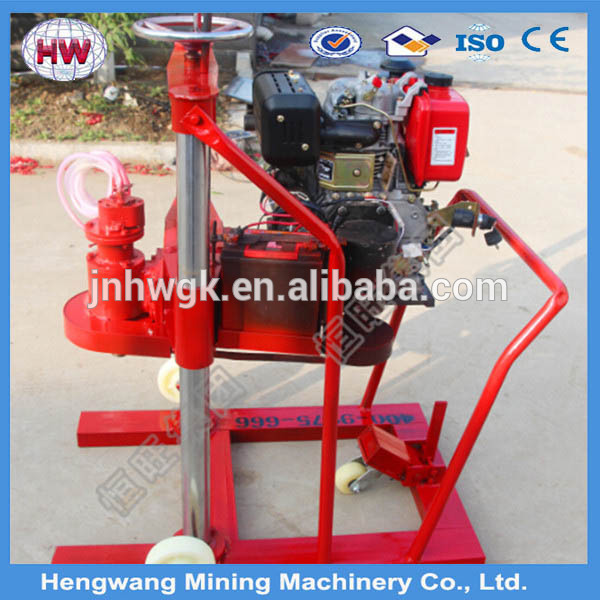

Diesel core drilling machine

There are two main purposes for this drill, one is horizontal drilling, applicable to spike installation, road pile installation, Bridges, drilling integrated building pile foundation drilling, etc., has been widely used in traffic engineering company, China railway group, integrated housing companies and other units;2 it is core to use, suitable for pavement core experiments, has been widely used in testing center.And exported to dubai, the Philippines, Bulgaria and other countries and regions.

Max drilling diameter	Φ300mm
Max drilling depth	1000mm
Working	Manual
Speed	500～1000r/min
Drill bit	diamond
Engine	Deisel
Power	13HP
Dimensions	570×405×1000mm
Weight	180kg
Diamond bit	￠50 ￠100 ￠150

Products Show

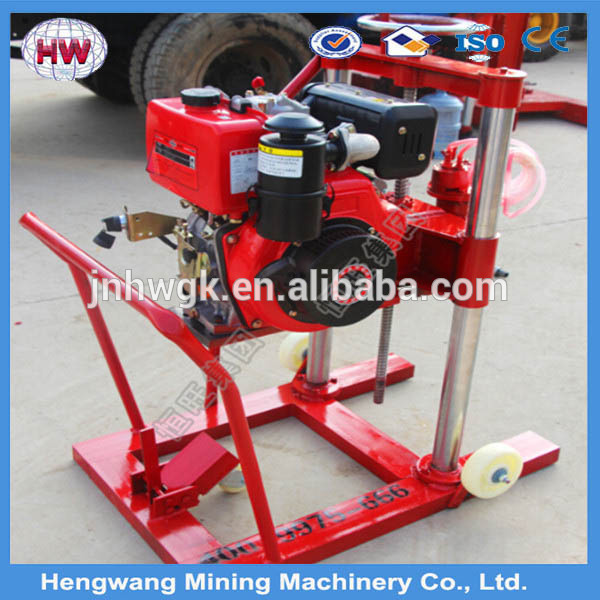

13Hp diesel engine

Concrete core drilling machine is to use the diesel engine as power, start convenient, reliable operation, easy to operate, and is equipped with artificial synthetic diamond drill bit, it is mainly used for highways, airports, ports, docks, the dam concrete engineering, such as drilling core of new products.

Diamond bit

Drill for drilling vertical downward direction, two column vertical structure by gasoline engine, gearbox, spindle, drill, the structure of the pillar and base elevation, cooling the main feed water pump, walk institutions.

1), before use must refill lubricant to the transmission parts, worm gear and worm often add butter.
2), on the workbench clamping the prototype.
3), open the valve of cooling water, and ensure that there is plenty of water, no water or less diamond cutting is prohibited.

4), and hold fast the button, make bit close to the specimen, and then select the drilling speed according to the hard and soft specimen (fast, medium and slow)
5), according to the sample button that automatically sampling.
