Diesel engine water well drill rig /small portable diesel water well drilling machines

Click on the image to view the original image

Product：	views：3Diesel engine water well drill rig /small portable diesel water well drilling machines
Branch：	HWGK
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:27

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: HW

Usage:: Water Well

Voltage:: 380V

Power(W):: 15KW

Dimension(L*W*H):: 2.75*0.95*1.6m

Weight:: 910KG

Certification:: ISO9001

Model:: water well drilling rig

Drilling depth:: 100m-600m

Drilling diameter:: 75-300mm

Drill rod caliber:: 50mm

Drilling angle:: 90°~75°

Drill weight (No include power):: 910kg

Unity machine dimensions:: 2.5*1*2.6

spindle speed:: 64,128,287,557r/min

Tightrope caliber:: 12.5mm

Tightrope cubic measure:: 35m

Warranty:: 1 Year

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 20000 Set/Sets per Year water well drilling rig

Packaging & Delivery

Packaging Details: wooden case

Port: QINGDAO

Lead Time:: Shipped in 7 days after payment

Product Description

HW160 water well drilling rig

a. Keeping bracket is installed on the hosit to form a double wheel support structure, able to withstand strong blow
b. Vertical box are fixed by four groups of bearings to ensure that the rotary machine hassufficient rigidity to overcome gravel layer and other complex geological conditions.
c.the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

Specifications
Unity machine parameter
Drilling depth	30--200m
End hole caliber	500-75mm
Drill rod caliber	50mm
Drilling angle	90°~75°
Drill weight (No include power)	910kg
Unity machine dimensions	2.5×1×1.32.5×0.9×1.3m
Spindle
spindle speed	64,128,287,557r/min
Spindle stroke	450mm
Hoist
Max.single line hoisting capacity	2500kg
Single line lifting speed	17,35,75,151r/min
Tightrope caliber	12.5mm
Tightrope cubic measure	35m
Hug floodgate caliber	254mm
Hug folldgate belt width	70mm
Distance between drill and hole	400mm
Mud pump - Specifications
Type	Horizontal single urn twin-action
Displacement	170L/min
Diesle engine	S1115 model 22HP
Electric motor	Y160M—4 15kw 1440r/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm

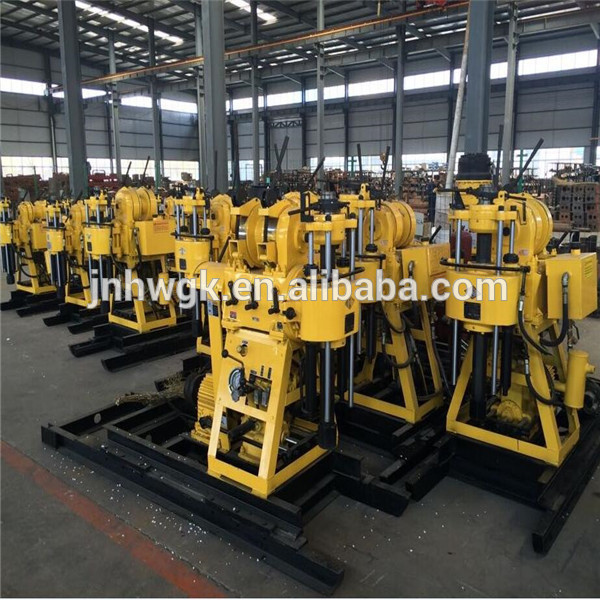

HW 160water well drilling rig
