Air Powered Tools D9 Pneumatic Rammer /D9 tamping machine
It is widely used in road construction, concrete and other hard objects demolition. It is featured by durable parts, good performance and easier operation, which is a classic products among breaking tools.
Tamping machine is a compressed air as the driving force of mechanized hand tools. Tamping suitable for medium sized castings, sand, and can also be used for operations such as concrete and brick.
The pneumatic tamper can be applied to tamping for small size sand-cast, and to the tamping of concrete adobe and bricks.
D3 Type small, used the occasion of narrow space occasion.
D4 pneumatic tamping machine light, suitable for stamping cores or smallsand mould.
D6 type suitable for medium casting modeling work.
D9 type with big work ability, suitable for large casting sand mold stamping work.
Parameters for air tamper:
Model | D3 | D4 | D6 | D9 |
Weight | 2.5kg | 3.6kg | 6kg | 9kg |
Working pressure | 0.63 mpa | 0.63mpa | 0.63mpa | 0.63mpa |
Gas consumption | 0.25 l/s | 0.35l/s | 0.45l/s | 0.65l/s |
Impacttimes | 900hz | 800hz | 700hz | 600hz |
Piston diameter | 17mm | 20mm | 25mm | 32mm |
Structure stroke | 92mm | 128mm | 155mm | 207mm |
Hammer diameter | 32mm | 36mm | 42mm | 54mm |
Air tube bore | 13mm | 13mm | 13mm | 13mm |
Total length | 410mm | 480mm | 975mm | 1180mm |

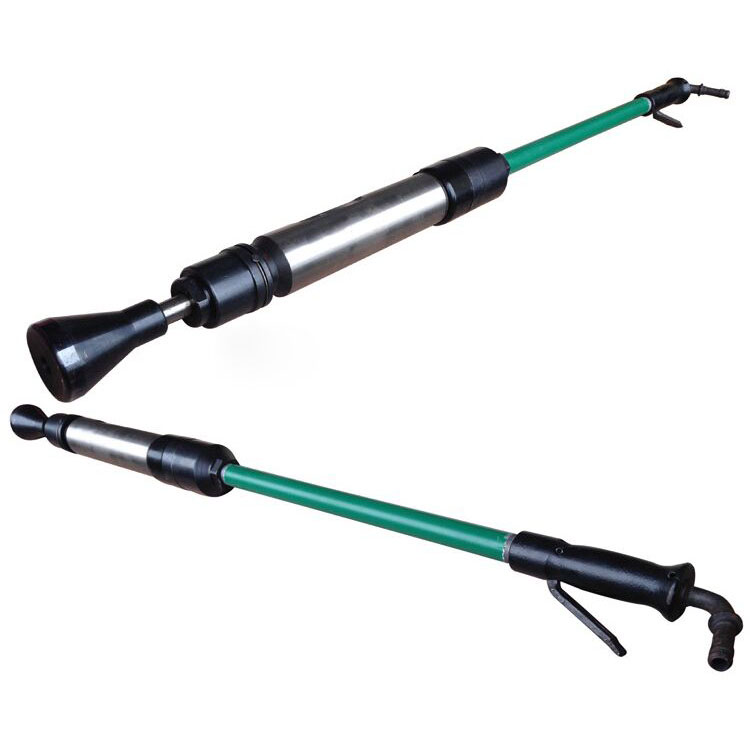

Photos for air tamper:
