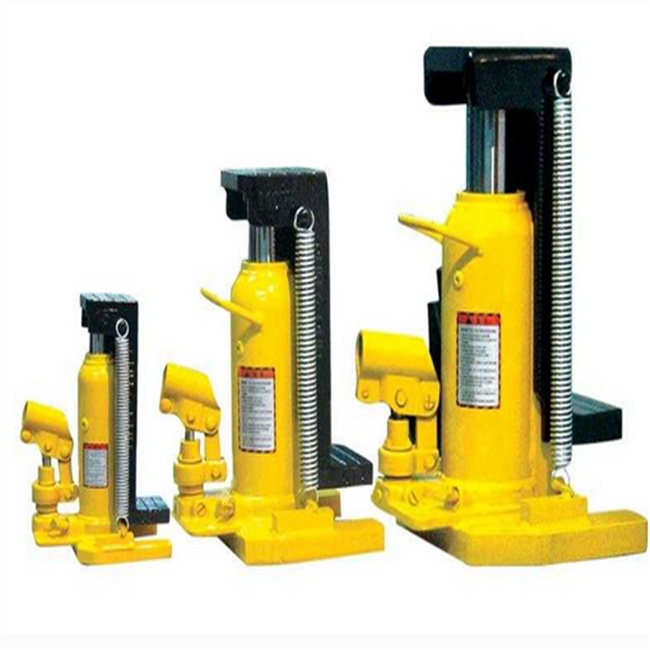

5T/10T mechanical lift rack jacks / track jack for sales (whatsapp:+8613608916725)
Applicable scope:
1.Rail track jack machine can also be applied to industrial and mining enterprises, transportation, ports,
and other enterprises shipping, installation and adjustment of equipment and lifting, handling all kinds
of heavy became a tool.
2.This machine structure is simple, lifting and reliability, simple operation, maintenance, maintenance
is convenient. Hoisting lift, ascension (lifting) speed, track the working efficiency is high.
Features:
1.In accordance with DIN 7355.
2.Suitable for lifting loads of any type.
3.With lifting body.
4.Safety crank with folding handle.
5.Lifting either with fixed toe or on clawed head .
6.All construction components standardized.
7.Low expenditure of force through optimal ratio
the main technical parameters:
1, rated jacking force: 200 kn
2, rated hook lift force: 78 kn
3, hoisting lift: >=270 mm
4, track efficiency: 127 mm/time
5, initial height:50 mm
6, lever (Jimmy) length (user own) : 1.5 m
7, full load lifting maximum operating force: 1920 n
8, outlook size: (LWH) 420 x 165 x 522 mm
9, machine weight: <=25 kg
