Home > Products > Low Price hydraulic sheet steel pile driver& pile hammer

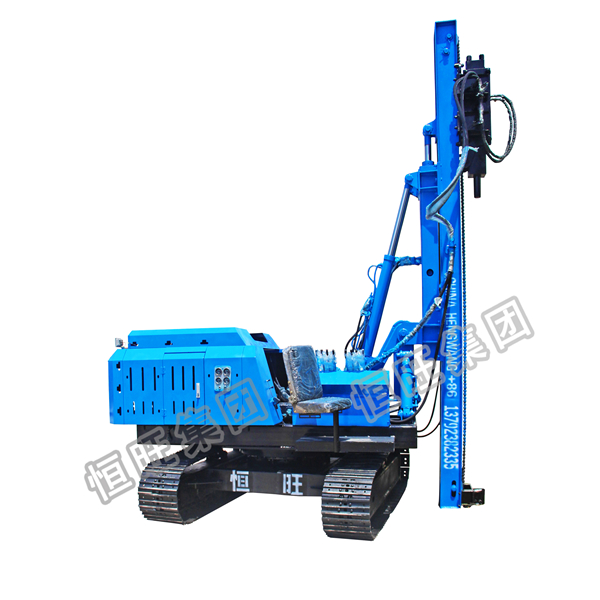

Low Price hydraulic sheet steel pile driver& pile hammer
Click on the image to view the original image
Product： views：3Low Price hydraulic sheet steel pile driver& pile hammer
Branch： HWGK
Type： piling rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:27
  Negotiated
Product Details
Overview
Quick Details
Piling Speed(m/min):
1m/min
Efficiency:
98%
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HWGK
Weight:
5T
Dimension(L*W*H):
2600*2200*2900
Certification:
ISO9001
Type:
piling rig
Drilling depth:
6000mm
Drilling diameter:
100mm-600mm
Color:
Customerized
Advantages:
Diesel Engine
Hydraulic hammer model:
Yc260
Hydraulic system pressure:
20Mpa
engine power:
50KW
Whole weight:
5T
Output torque:
26000
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Year pile driver
Packaging & Delivery
Packaging Details
export standard package
Port
QINGDAO
Lead Time:
Quantity(Sets)1 - 1 >1
Est. Time(days)15To be negotiated
Product Description

Pile driving speed,the average 3 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
Crawler walking,high walking and climbing ability The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

1
Model
HWZGX-600L
Remark
2
Hammer Model
390
this is hammer model , weight :200KG
3
Pile length
0-6000
mm
4
Bolt height
5.2
m
5
Duplex gear pump pressure
20
Mpa
6
Duplex gear pump displacement
40
ml/r
7
Hydraulic system pressure
20
Mpa
8
Main valve flow
120
L/Min
9
Overall Machine weight
6
T
10
Diesel engine power
80
KW
11
Rated Speed
2400
R/min
12
Starting Voltage
24
V
13
Rotation angle
360
°
14
Rotation semi diameter(rotating shaft to Pod distance)
1925
mm
15
Effective press pile stroke
0-3000
mm
16
Dimension(LXWXH)
4650×2150×2700
mm
17
Track shoe
350
mm
18
Walking motor total displacement
1575
ml/m
19
Walking motor rated pressure
18
Mpa
20
Walking motor output torque
4300
N.M
21
Walking motor rotate speed
50
r/min
22
Press Pile Diameter
0-600
mm
23
Drilling Depth
0-6000
mm
24
Operating Speed (m/min)
1.5
90s/per pile
25
Number of impacts / strokes per 1 minute
900
times/min
26
Maximum lengh of Piles to be rammed
6
M
27
Walking speed
5-10
Km/hr
28
Gradeability
0-35
°
29
Oil tank capacity
200
L
30
Hydraulic tank capacity (L)
500
L
