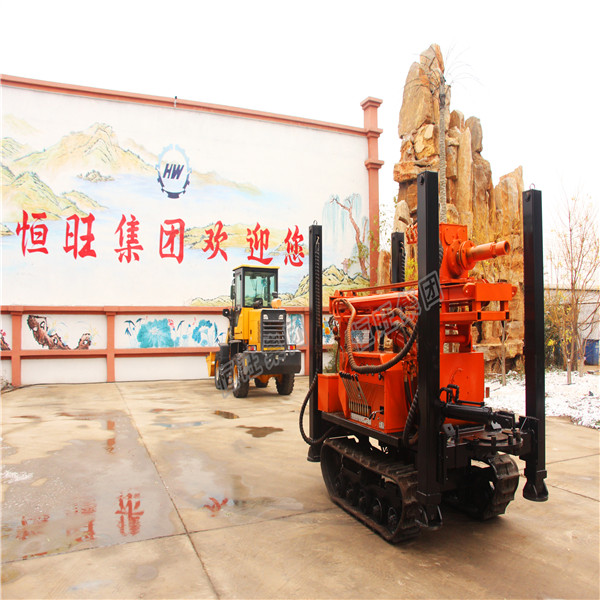

best selling multifunction pneumatic crawler Hydraulic DTH Rock Blasting Downhole Drill Rig

Click on the image to view the original image

Product：	views：3best selling multifunction pneumatic crawler Hydraulic DTH Rock Blasting Downhole Drill Rig
Branch：	HENG WANG
Type：	Rotary Drilling Rig
Size：	82X45X71 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:28

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Usage:: Water Well

Voltage:: Diesel Engine Driven

Dimension(L*W*H):: 3000 *1450 *2000mm

Weight:: 4.3T

Certification:: ISO9001

After-sales Service Provided:: Overseas service center available

Name:: MultifunctionDrilling Rig

Application:: Drilling Blast Hole/water well drilling

Drilling depth:: 150m

Product name:: pneumaticwaterwell drill rigcore drillingmachine

Drilling diameter:: 100 ~ 219mm

Feature:: High Drilling Efficiency

Working pressure:: 1 ~ 3.45Mpa

Model:: Portable Water Drilling Rig

Color:: Customised

Packaging & Delivery

Selling Units:: Single item

Single package size:: 82X45X71 cm

Single gross weight:: 65.0 kg

Package Type:: exportpackage

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	3	To be negotiated

Product Description

Product Application

It is mainly applied to drilling wells, agricultural irrigation wells, geothermal air-conditioning holes and other purposes of the well, especially for the mountain and rock stratum of water intake works.
The rig can be carried out in different layers of drilling work, drilling diameter of up to 254mm. 200 Tracked Pneumatic Water Well Drilling Machine
Applicable to various strata, with the whole hydraulic control, the whole automatic loading and unloading transport, automatic loading and unloading drill pipe, automatic clean, four corners hydraulic balance walking terrain for more capable.

Maximum drilling depth: 150m
Drilling diameter: 100 ~ 219mm
Working pressure: 1 ~ 3.45Mpa
Air consumption: 16 ~ 55m3 / min
Diameter of drill pipe: 73 76 89mm
Drill rod length: 3m
Axial pressure: 5T
Lifting force: 10T
Rotational torque: 2 ~ 4KN.M
Rotational speed: 0 ~ 100r / min
Matching power: 4102 diesel engine 82HP
Loading mode: hydraulic track chassis
Walking speed: 2.5km / h
Climbing ability: 30 °
Dimensions: 3000 × 1450 × 2000mm
