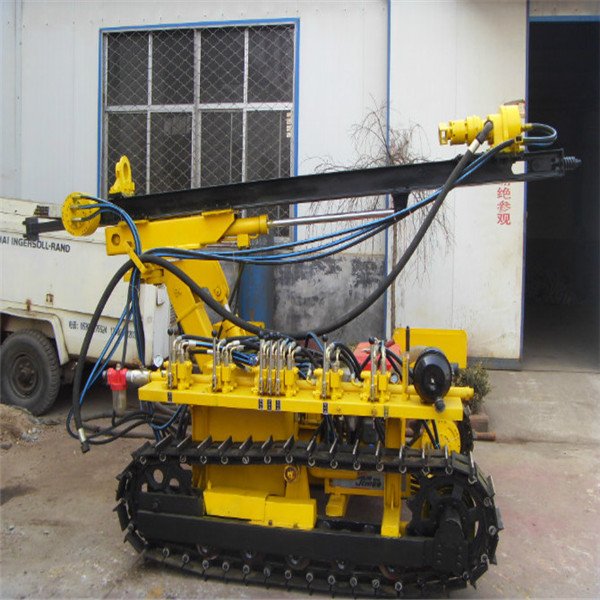

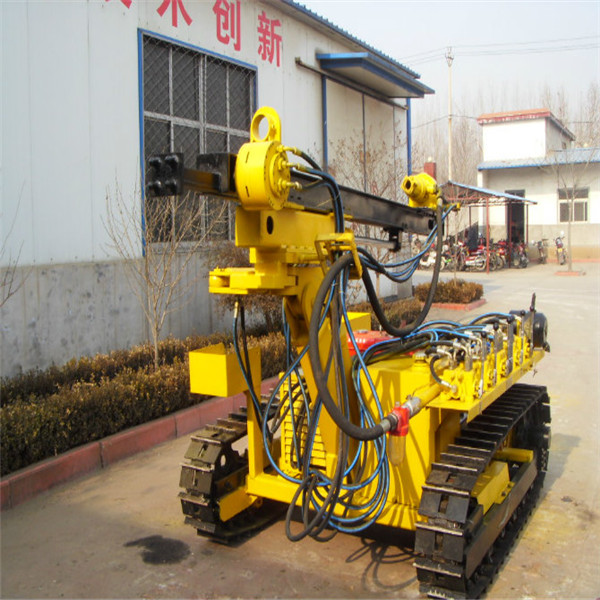

Hydraulic diesel engine multifunction Pneumatic DTH underground drill rigs

Click on the image to view the original image

Product：	views：3Hydraulic diesel engine multifunction Pneumatic DTH underground drill rigs
Branch：	heng wang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:28

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: Drilling Machine

Usage:: Coal

Voltage:: Customized

Power(W):: 33000

Dimension(L*W*H):: 4100*2030*2020

Weight:: 3200kg

Certification:: ISO

Name:: multifunction DTH High Speed Drilling Rig forblasting hole

Application:: Drilling Blast Hole

Drilling depth:: 25m

Product name:: multifunction DTH High Speed Drilling Rig forblasting hole

Drilling diameter:: 80-115mm

Engine:: Diesel Power

Feature:: High Drilling Efficiency

Spindle Speed:: 570 R/min

Model:: HW100

Color:: Customised

Warranty:: 2 Years

After-sales Service Provided:: Overseas service center available

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month Hydraulic diesel engine multifunction Pneumatic DTH underground

Packaging & Delivery

Packaging Details: exportpacking

Port: shanghai qingdao ningbo dalian shenzhen

Lead Time:: within 3 days after receive your payment

Hydraulic diesel engine multifunction Pneumatic DTH underground drill rigs

Product Description

Mining drilling rigs are used for two main purposes, exploration drilling which aims to identify the location and quality of a mineral, and production drilling, used in the production-cycle for mining. Drilling rigs used for rock blasting for surface mines vary in size dependent on the size of the hole desired, and is typically classified into smaller pre-split and larger production holes. Underground mining (hard rock) uses a variety of drill rigs dependent on the desired purpose, such as production, bolting, cabling, and tunnelling.

Different Model Parameter

HW100:

Model	HW100
Rock rigidity	f=6-20
Dia.of hole	80-105mm
Optimum drilling depth	25m
Working pressure	5-12 bar
Air consumption	≥10 m3/min
Rotation speed	0-65 rpm
Torque	983N•M
Lift power	15KN
Dimensions	410020302020 mm
Weight	3200KG
Drive system	YC2108 Engine 33KW Motor
Recommended air compressor	LGCY-12/10

HW120:

Model	HW120
Rock rigidity	f=6-20
Dia.of hole	80-115mm
Optimum drilling depth	25m
Working pressure	1.0-1.4Mpa
Air consumption	≥13 m3/min
Rotation speed	0-65 rpm
Torque	1400N•M
Lift power	17KN
Dimensions	510020302020 mm
Weight	3300KG
Drive system	YC2108 Engine 33KW Motor
Recommended air compressor	LGCY-13/13

HW125:

Model	HW125
Rock rigidity	f=6-20
Dia.of hole	80-115mm
Optimum drilling depth	25m
Working pressure	7-17bar
Air consumption	≥13 m3/min
Rotation speed	0-67 rpm
Torque	1400N•M
Lift power	17KN
Dimensions	440022002050 mm
Weight	3660KG
Drive system	YC2108 Engine
Recommended air compressor	LGCY-15/13 LGCY-13/13 LGCY-13/17

HW130:

Model	HW130
Rock rigidity	f=6-20
Dia.of hole	105-127mm
Optimum drilling depth	25m
Working pressure	10-24bar
Air consumption	≥15 m3/min
Rotation speed	0-70 rpm
Torque	2800N•M
Lift power	18KN
Dimensions	540023402550 mm
Weight	6000KG
Drive system	498BG-8 Engine
Recommended air compressor	LGCY-15/13 LGCY-18/17

…

Any other model ,please contact us!!!!Thanks
