Home > Products > mining MQT series pneumatic Roof Bolter/coal mine drill rig / rock bolt drill
mining MQT series pneumatic Roof Bolter/coal mine drill rig / rock bolt drill
Click on the image to view the original image
Product： views：3mining MQT series pneumatic Roof Bolter/coal mine drill rig / rock bolt drill
Branch： HengWang
Type： Core Drilling Rig
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:28
  Negotiated
Product Details
Overview
Quick Details
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
HengWang
Usage:
Coal
Voltage:
380/660
Power(W):
2.5kw
Dimension(L*W*H):
450*256*210mm
Weight:
45KG
Certification:
ISO
Warranty:
1 Years rock bolt drill
Name::
MQT Jumbolter Anchor Drilling Rig
Voltage::
380/660
Power(W)::
2.5kw
Maximum output power::
2.1kw
Maximum Push force::
8.2KN
Certification::
ISO
Static torque::
200 N/m
No-load speed::
190 r/min
Rated air pressure::
0.5Mpa
Free running speed::
600r/min
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery

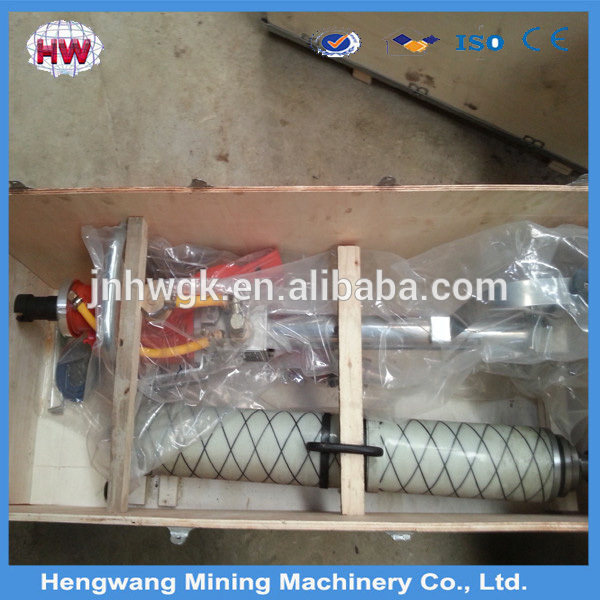

Packaging Details
Wooden box
Port
Qingdao



      mining MQT series pneumatic Roof Bolter/coal mine drill rig / rock bolt drill





Parameter Name

Unit

MQT110

MQT120

MQT130

To adapt to the stress range

Mpa

0.4-0.63

0.4-0.63

0.4-0.63

nominal pressure

Mpa

0.5

0.5

0.5

nominal torque

n.m

110

120

130

rated speed

r/min

≥230

≥200

≥180

maximum power output

KW

≥2.4

≥2.6

≥3.0

maximun load torque

n.m

≥180

≥220

≥260

starting torque

n.m

≥170

≥180

≥230

Load gas consumption

m³/min

≤3.8

≤4.2

≤4.4

Max Speed

r/min

620

500

460

Weight

Kg

48

52

54
