Home > Products > 300m 600m water well drilling rig ,tractor drilling machine with mud pump and all accessories

300m 600m water well drilling rig ,tractor drilling machine with mud pump and all accessories

Click on the image to view the original image

Product：	views：3300m 600m water well drilling rig ,tractor drilling machine with mud pump and all accessories
Branch：	HWGK
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:28

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HWGK

Model Number:: XY

Usage:: Water Well

Voltage:: 380V

Power(W):: 37KW

Dimension(L*W*H):: 4*2.2*2.6

Weight:: 4000KG

Certification:: ISO9001

Model:: XY water well drilling and rig machine

condition:: new

depth:: 600m

drilling work:: water well. mining

diesel engine power:: 50HP-102hp

After-sales Service Provided:: No overseas service provided

Warranty:: 1year

Supply Ability

Supply Ability:: 200 Set/Sets per Year water well drilling

Packaging & Delivery

Packaging Details: export standard package

Port: qingdao

Lead Time:: 15 workdays

XY water well drilling and rig machine

Drilling depth	m		100			250		300	600
Drilling DI	mm		300			200		150	75
Open hole DI	mm		300
End hole DI	mm		75
Drilling rod	mm		Φ60
Drilling angle			90°-65°
Rotary Spindle
Spindle forward speed				r/min			30-1050
Spindle reverse speed				r/min			29-137
Spindle stroke				mm			560
Spindle inner diameter				mm			96
Spindle lifting capacity				KN			60
Main Winch ( drive hydraulic system)
Single line lifting speed					m/min		0-45
Hug floodgate belt width					mm		90
Tightrope diameter					mm		14
Hoist single line lifting capacity					KN		40
Roller diameter					mm		200
Roller cubic measure					m		30
Gear Oil pump
Duplex gear oil pump CBF-F63/25
Front displacement,pressure							63mL/r 20Mpa
Behind displacement,pressure							25mL/r 20Mpa
Drilling rig Power
Diesel engine		Hp					R4105ZD 50HP
Electric motor		KW					Y180L-4 37KW

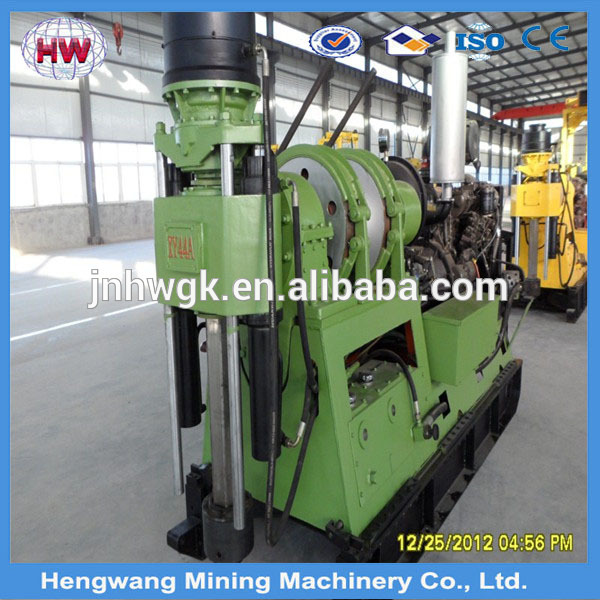

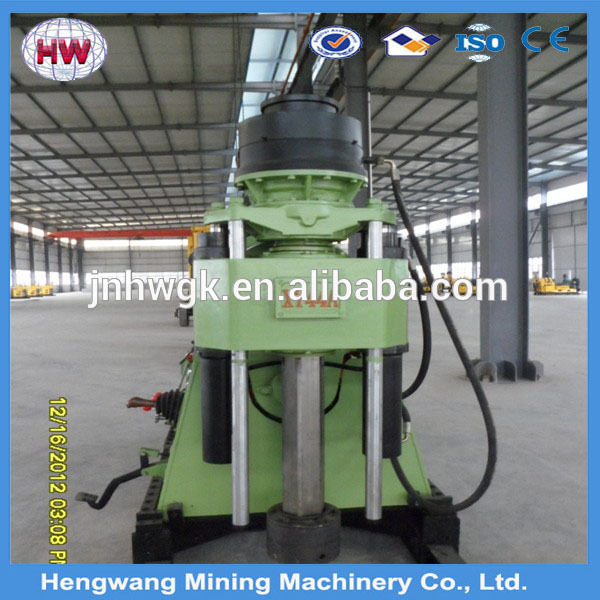

Figure photos for rock drilling

Qualification & certification for rock drilling

History order

Welcome to visit our factory
