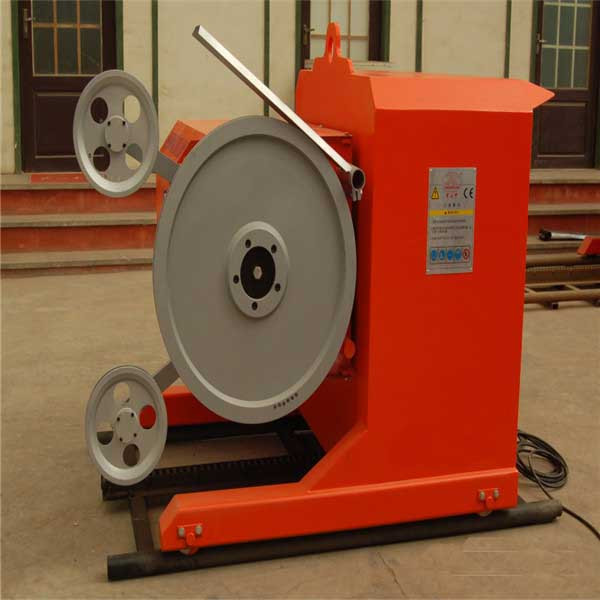

Wire Saw Machine for Quarry marble, granite, sandstone and limestone cutter

Click on the image to view the original image

Product：	views：3Wire Saw Machine for Quarry marble, granite, sandstone and limestone cutter
Branch：	heng wang
Type：	Stone Cutting Machine
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:28

Product Details

Overview

Quick Details

Production Capacity:: 100%

Power(W):: 11-75kw

Type:: Stone Cutting Machine

Certification:: ISO9001

Condition:: New

Use:: Marble

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: Heng wang

Voltage:: 380V

Dimension(L*W*H):: 3700mm*2200mm*1800mm

Weight:: 1500kg

Name:: marble, granite, sandstone and limestonecutter

Color:: Customer Needing

Application:: Stone Industrial

Function:: Stone Engraving Carving Cutting

Usage:: Splitting Mosaic Stones

Control system:: DSP

Keyword:: Multi-blade Stone Cutter Machine

Spindle power:: Customized Servo Spindle

Model:: china hengwang

Product name:: marble, granite, sandstone and limestonecutter

Warranty:: 2 Years

After-sales Service Provided:: No overseas service provided

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Wire Saw Machine for Quarrymarble, granite, sandstone and lime

Packaging & Delivery

Packaging Details: wooden case

Port: shanghai qingdao ningbodalian shenzhen

Lead Time:: WITHIN7 DAYSAFTER RECEIVE YOUR PAYMENT

Product Description

Wire Saw Machine for Quarry marble, granite, sandstone and limestone cutter

Products Features:

HW Wire Saw Machine for Quarry:

1) Variable speed Wire Saw Machine, with electric controlled inverter that allows a variable linear speed of the wire 0m/s-40 m/s for marble cutting and 0m/s-30m/s for granite cutting, suitable for any quality or hardness of quarries, such as marble, granite, sandstone etc. also available for bridge, reinforced concrete and other construction cutting.

2) Controlled by dual inverter+PLC, make diamond wire’s tension constant and cutting process automatically controlled, reliable system and high control precision.

3) Trace the changes of loading under the automatic control status, to make the diamond wire saw keep working in best condition by adjusting the move speed of the machine.

4) Protect the diamond wire saw from breaking, overloading, lacking of phase,terminal limiting.

5) Have the easy-operating functions of electric turnover, electric horizotal movement and quick moving.

6) We can offer our clients good after-sale service and professional technical assistance.

Technical Parameters:

Model	Main Motor Power	Length of Wire (m)	LinearSpeed (m/s)	Remark
11AX-4P	11KW	5-30	0-40	used for block cutting
22AX-4P	22KW	5-40	0-40	used for block cutting
37AX-6P	37KW	20-80	0-40	used for quarrying
45AX-6P	45KW	20-100	0-40
55AX-6P	55KW	20-120	0-40
75AX-6P	75KW	20-150	0-40
