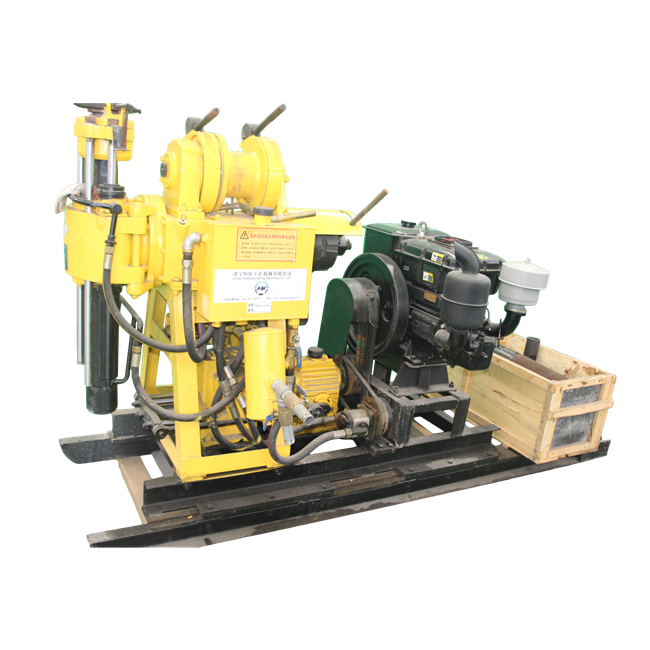

HengWang Brand HW-160 Model Drilling Equipment Water Well Drilling Rig Drilling For Groundwater

Click on the image to view the original image

Product：	views：3HengWang Brand HW-160 Model Drilling Equipment Water Well Drilling Rig Drilling For Groundwater
Branch：	HengWang
Type：	Core Drilling Rig
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:29

Product Details

Overview

Quick Details

Condition:: New

Type:: Core Drilling Rig

Power Type:: Diesel

Place of Origin:: China

Brand Name:: HengWang

Model Number:: HW-160

Usage:: Water Well

Voltage:: Diesel Engine Driven

Power(W):: 13.2/2200kW/r/min

Dimension(L*W*H):: 2400*950*1400mm

Weight:: 920KG

Certification:: ISO9001

Product name:: Diesel Water Well Drilling Rig

Drilling depth:: 160m

Max. Hole diameter:: 75mm-220mm

End hole diameter:: 75mm

Driving lever:: 53/59*4200mm

Drill pipe diameter:: 50mm

Drilling angle:: 90°-75°

Mud Pump:: BW-75

Max. Displacement:: Diesel engine95L/min

Max. Pressure:: 1.2Mpa

After-sales Service Provided:: Engineers available to service machinery overseas

Warranty:: 1 Year

Supply Ability

Supply Ability:: 300 Set/Sets per Month Water Well Drilling Rig

Packaging & Delivery

Packaging Details: Wooden Box

Port: Qingdao Port

Lead Time:: Within 7 days

Product Description

HW-160 hydraulic drilling rig is a new type of core drilling rig which is developed especially to meet the need of various drilling process mainly in diamond drilling, the power machine of which can be either motor ordiesel engine.

This drilling righas the following advantages:

1). The drill can meet the various high efficiency drilling process requirements such as the diamond cable, concussion turning, orientation drilling and reverse circulation core-drilling.

2). The drill can be run with high reliability

Working Video Link:

https://www.youtube.com/watch?v=pH6phHAfE9Y&feature=youtu.be

Technical Parameter

Unity Machine Parameter
Drilling depth	160m
Max. Hole diameter	Φ75--Φ220mm
End hole diameter	75mm
Driving lever	53/59*4200mm
Drill pipe diameter	50mm
Drilling angle	90°-75°
Power (diesel engine)	13.2/2200kW/r/min
Weight	920kg
Size	24009501400mm
Spindle
Spindle speed	142/285/570 r/min
Spindle stroke	450mm
Hoist
Max. Lifting capacity	2000
Single line lifting speed	0.41 - 1.64m/s
Tightrope caliber	Φ9.3mm
Tightrope size	27m
Reel Caliber caliber	Φ140mm
Mud Pump (BW-75)
Max. Displacement	Diesel engine 95L/min
Max. Displacement	Electric motor 77L/min
Max. Pressure	1.2Mpa
Work Pressure	0.7Mpa
Water inlet diameter	φ51mm*4.5m
Water outlet diameter	φ32mm*6m
