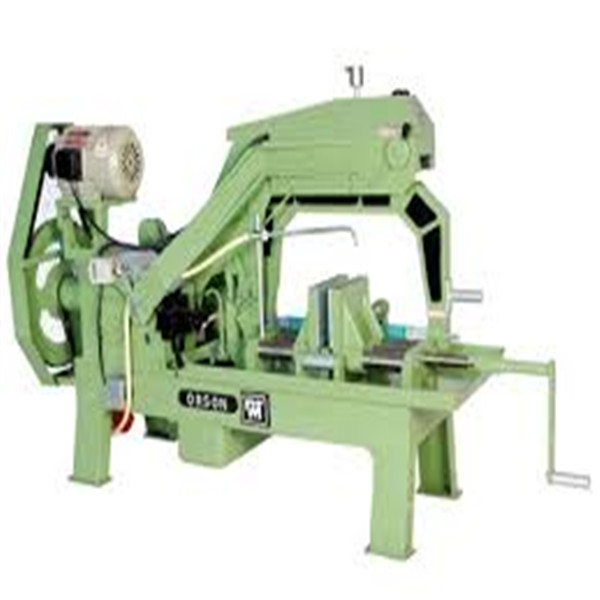

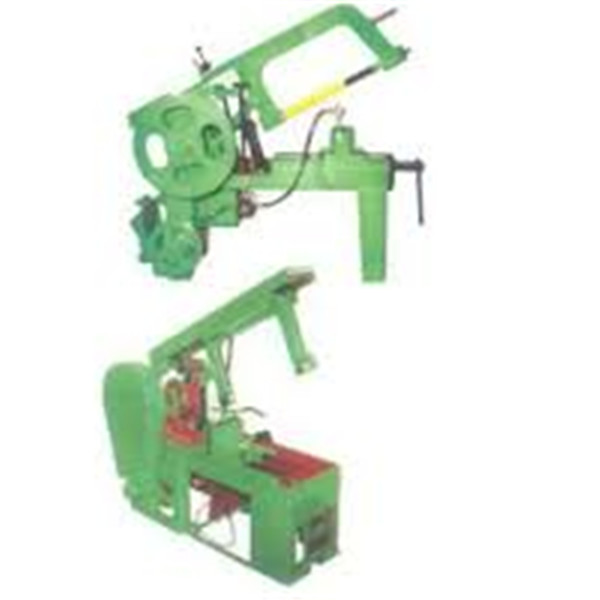

high efficiency Metal Cutting Hacksaw Machine
Product Description
Features:
1.Automatic cutting process
2.With clamping feeding device
3.With safety protection device
4. It has different speeds and wide cutting scope.
5. Hydrauic transmission, simple running, easy upkeep.
Specification:
| Model | G7125 | G7132 | G7140 | G7150 | |
| Cutting capacity | Round bar | 250mm | 320mm | 400mm | 500mm |
| Square bar | 220x220mm | 290x290mm | 330x330mm | 400x400mm | |
| Oblique saw | 45° | 45° | 45° | 45° | |
| Sawing speed | 43,50,60,86, 100,120 | 34,60,84 | 34,60,84 | 34,60,84 | |
| Blade size | 450x45 x2.25mm | 600x50 x2.5mm | 650x55 x2.5mm | 750x63 x2.5mm | |
| Main motor | 3.22kw | 3.44kw | 4.34kw | 4.34kw | |
| Coolant pump motor | 0.04kw 2step | 0.04kw 2step | 0.04kw 2step | 0.09kw 2step | |
| Saw blade rapid down | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step | |
| Packing size | 2000x950 x1300mm | 2440x1020 x1600mm | 2440x1020 x1600mm | 2440x1190 x1760mm | |
| N.W./G.W. | 600/830kg | 1100/1350kg | 1200/1450kg | 1450/1700kg | |
